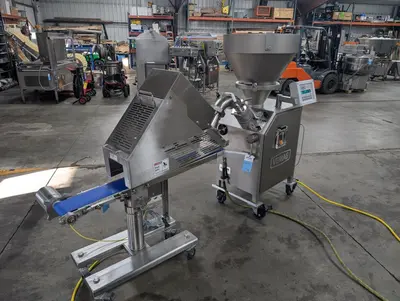

USED 2017 REISER ROBOT 500 FILLER

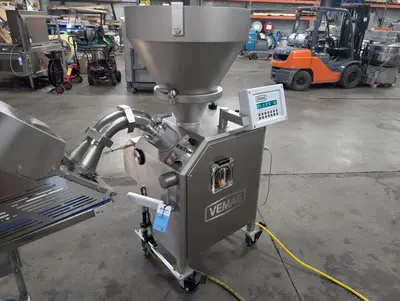

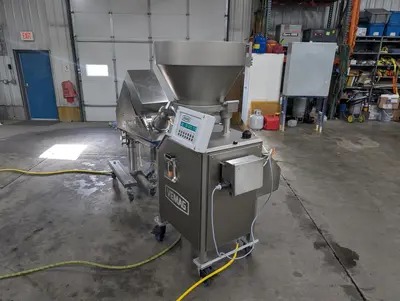

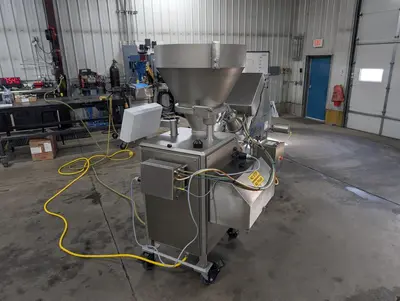

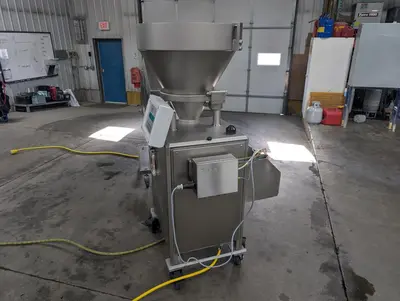

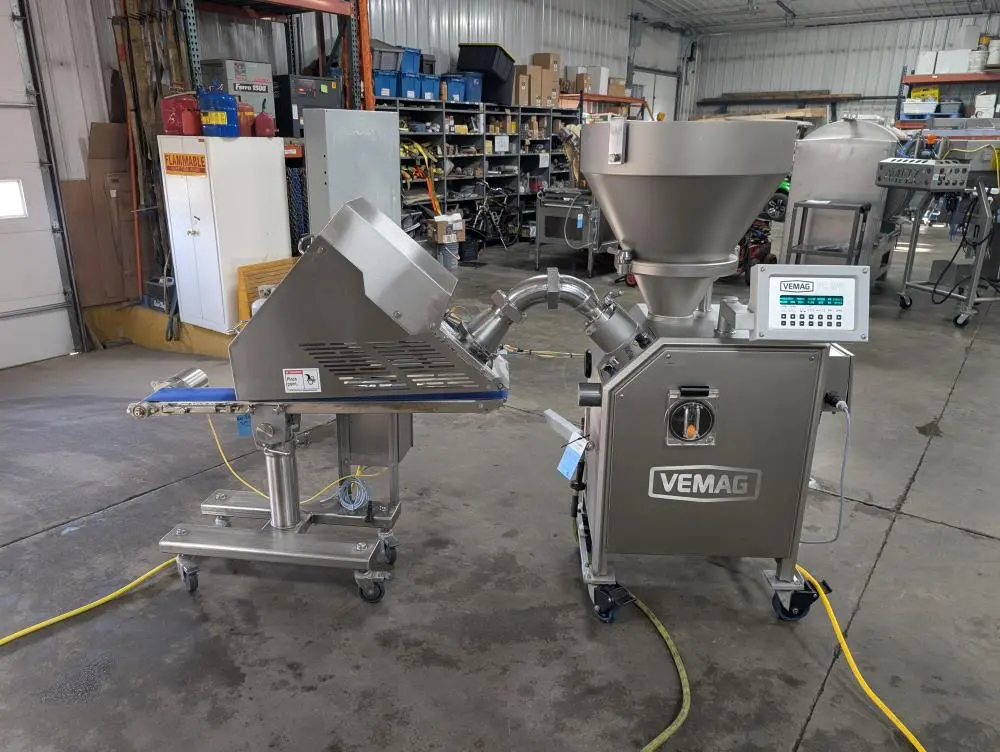

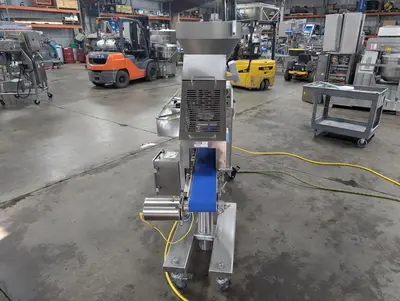

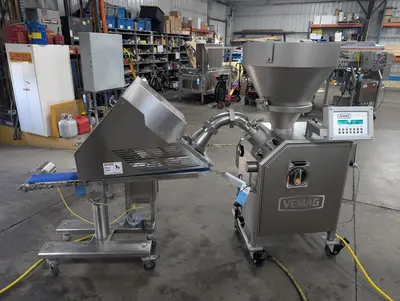

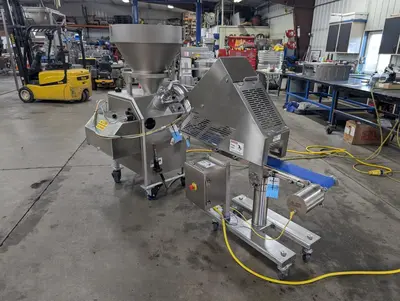

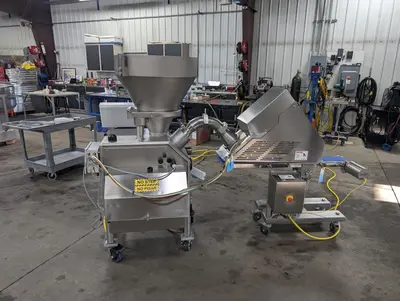

This 2017 Vemag Robot 500 system includes a pneumatic wirecut unit and stainless steel discharge conveyor, offering a complete, high-precision solution for portioning, forming, and depositing applications in bakery and food processing environments.
The system features a stainless steel hopper, Vemag PC878 controls with a new motherboard, and adjustable-height discharge conveyor on casters for flexible integration.

Key Features & Specifications

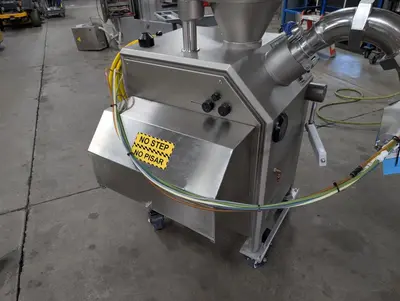

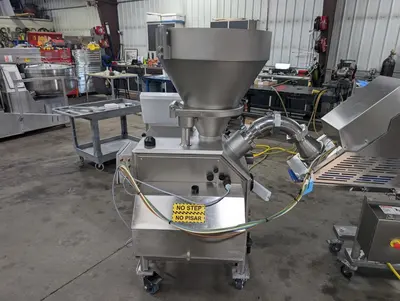

Vemag Robot 500 Filler
Model: Robot 500

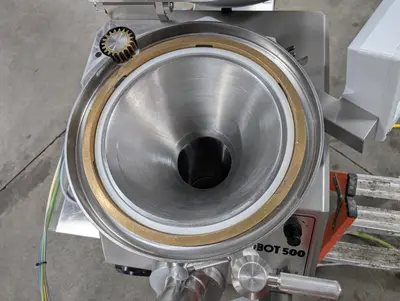

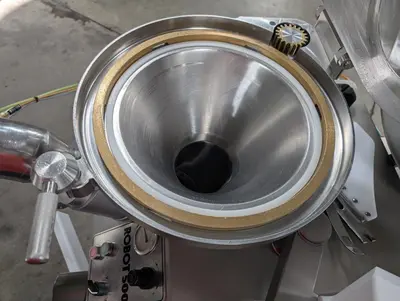

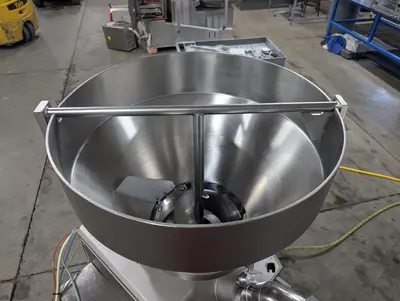

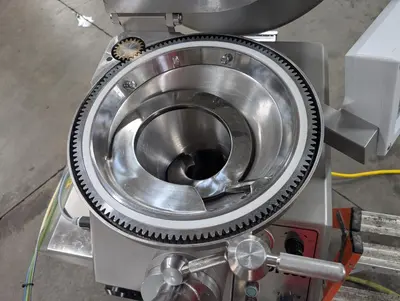

Stainless steel hopper: 26 in. diameter x 6 in. straight side x 10 in. cone
Hopper infeed height: 68 inches

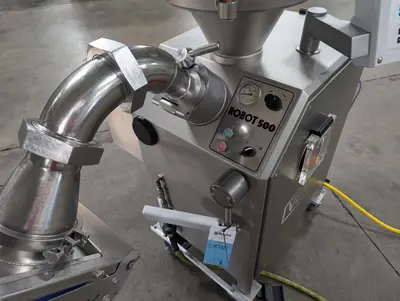

Discharge horn: 4 in. diameter
Carbon steel screws
Control system: Vemag PC878 with new motherboard
Wirecut System
Pneumatic wirecut mechanism
Includes 6-inch diameter inserts for various product types
Discharge Conveyor
Length: 53 inches
Width: 6 inches
Height: 34 inches (adjustable)
Discharge angle for optimized product handling
Stainless steel frame on locking casters
Utilities
Electrical: 220–240 Volt, 3 Phase, 60 Hz, 23 Amp
Air: 110 liters/min at 5–6 bar
Overall Dimensions & Weights
Vemag Unit: 42 in. L x 36 in. W x 68 in. H – Approx. 900  lbs
Conveyor: 54 in. L x 27 in. W x 44 in. H – Approx. 210  lbs
Parts Pallet: 48 in. L x 42 in. W x 24 in. H – Approx. 200 lbs

This Vemag portioning system is ideal for precise dough, meat, or filling applications, offering high-volume consistency and modular design with modern controls and mobile configuration.

Material of Construction : Stainless Steel
Shop Tested : Shop Tested - Running
