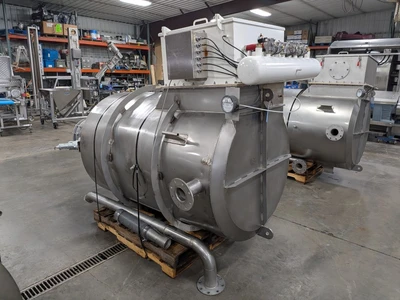

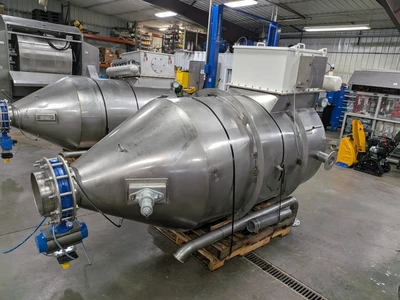

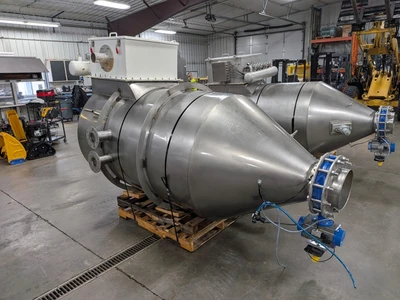

G Force SS Scaling Flour Hopper

G Force SS Scaling Flour Hopper
Hopper Capacity - Approx. 1,400 lbs.
Hopper Dimensions:
48 in. dia. x 70 in. straight side

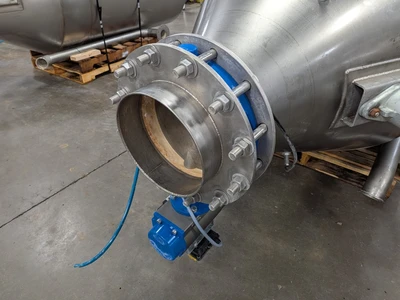

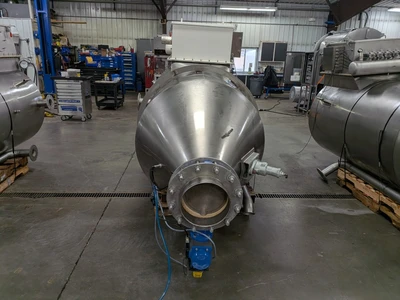

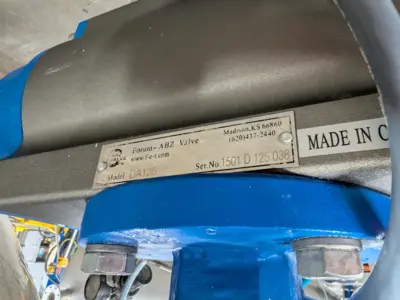

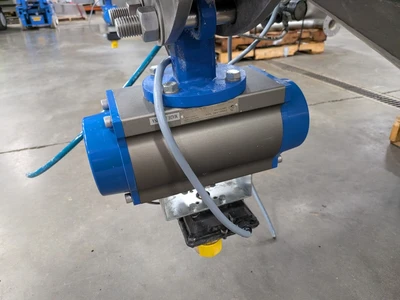

34 in. long cone bottom w/ 12 in. dia. pneumatic butterfly valve
Hopper Ports:

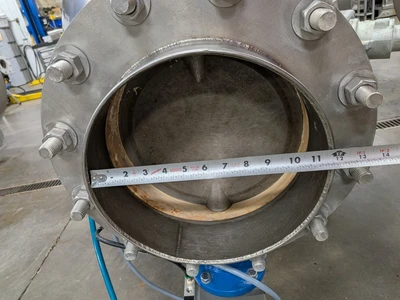

12 in. dia. discharge

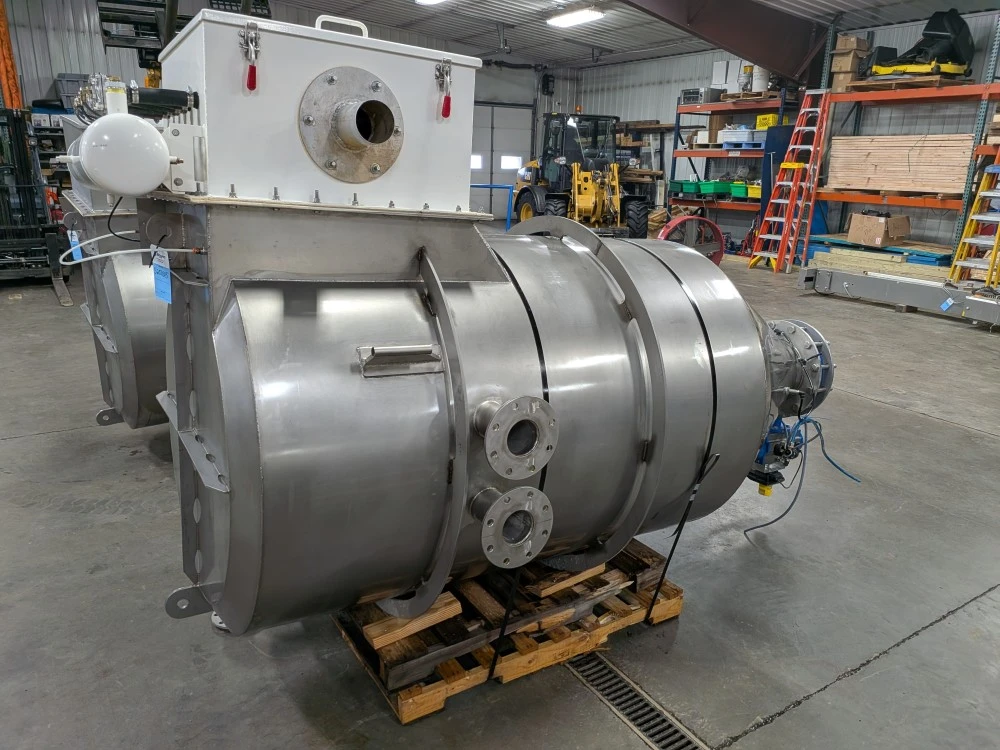

4 in. dia. side ports

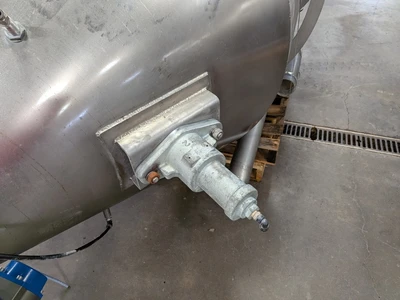

Vibrator on cone bottom

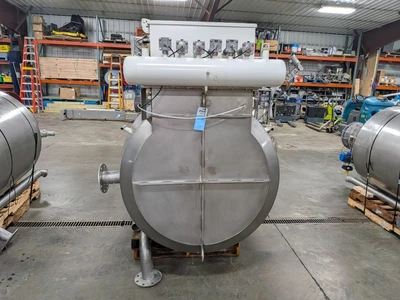

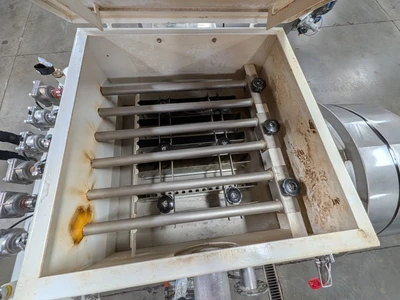

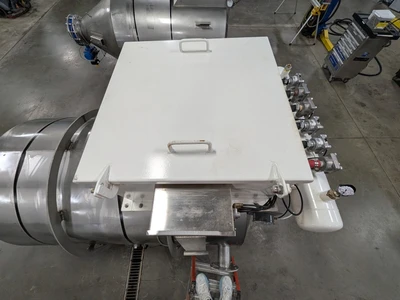

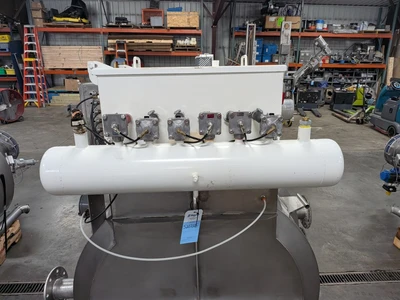

Vacuum Filter Receiver Dimensions:
28 in. long x 28 in. long x 16 in. deep
Overall Dimensions: 120 in. long x 56 in. wide x 82 in. tall (skidded)
SEE PDF FOR HOPPER DRAWING

Material of Construction : Stainless Steel
Approximate Weight : 1340 lbs.
Overall Dimensions : 120 in., long x 56 in. wide x 82 in. tall (skidded)
