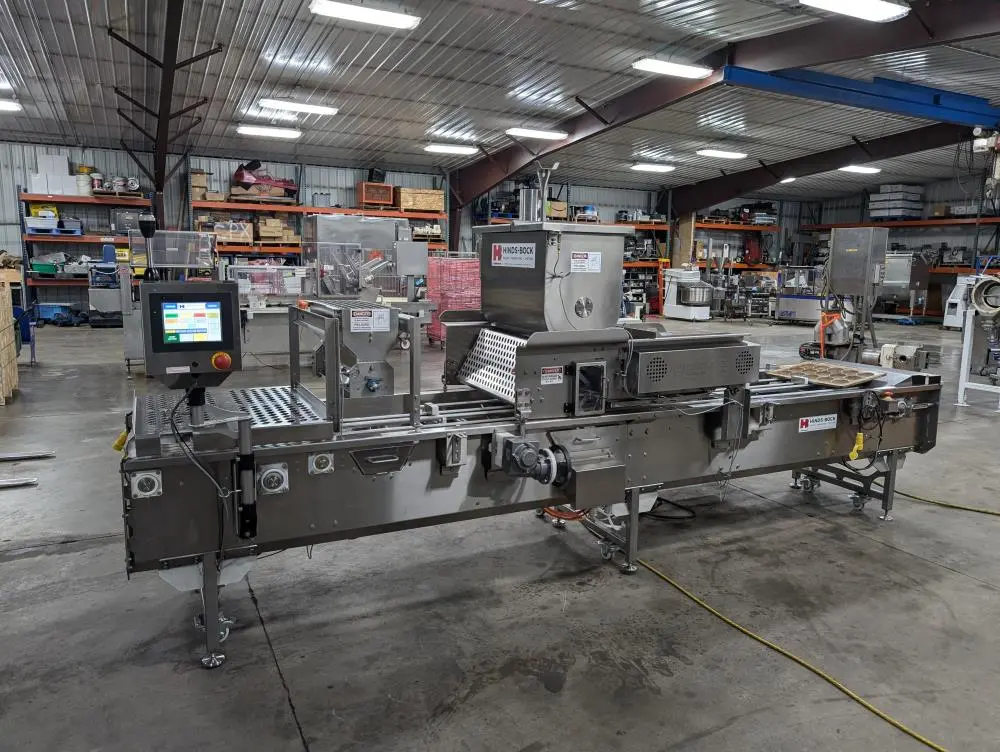

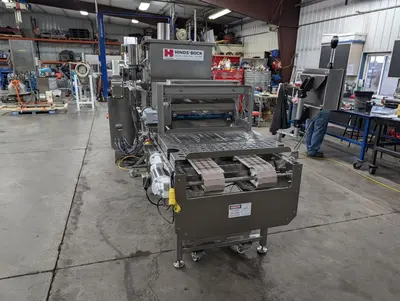

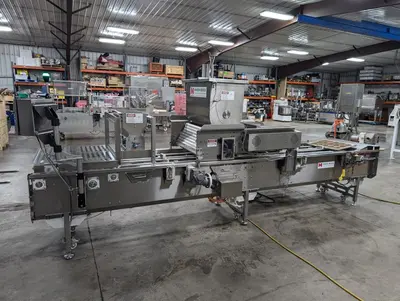

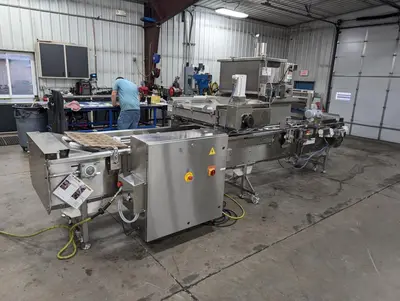

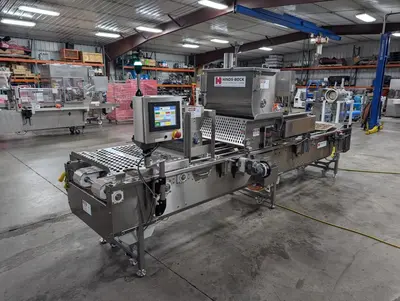

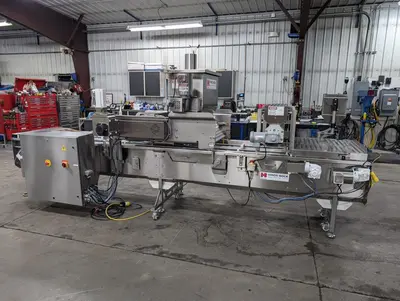

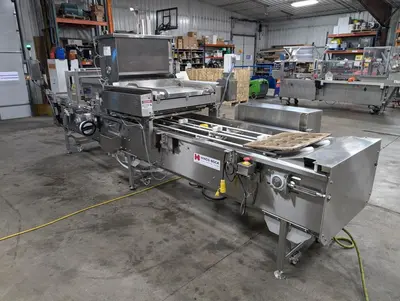

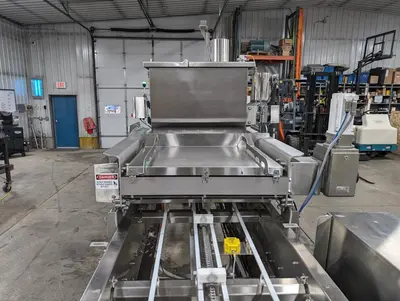

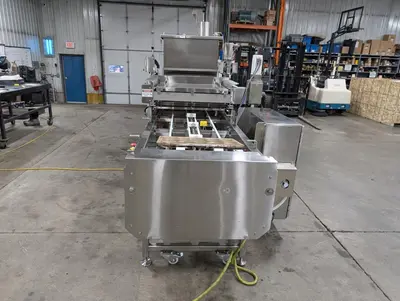

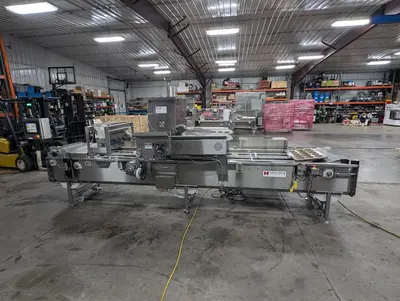

2018 Hinds Bock 5-Spot Depositing System

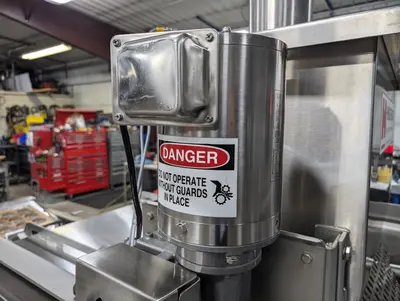

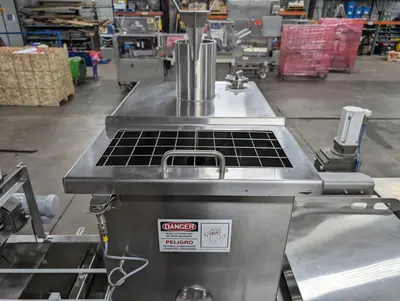

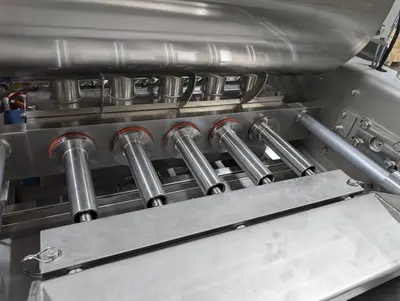

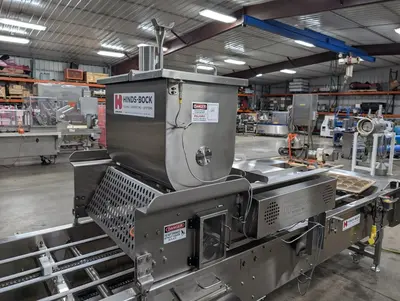

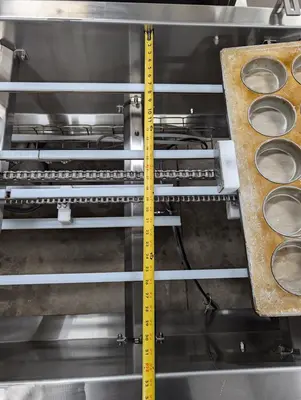

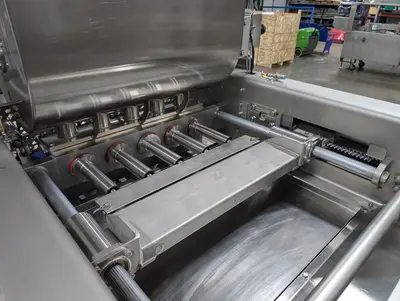

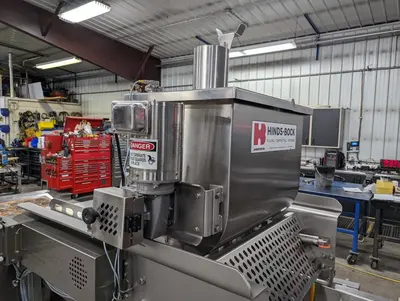

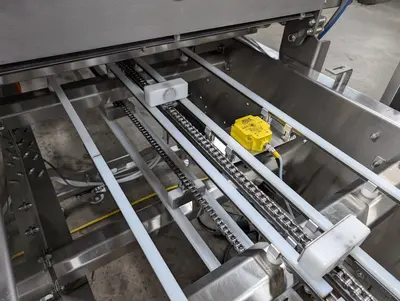

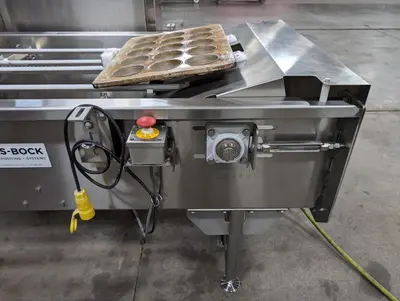

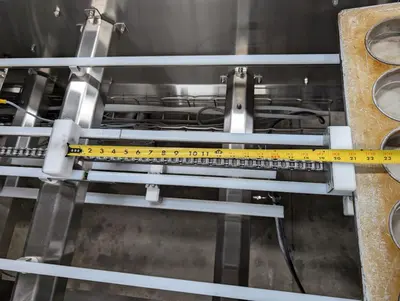

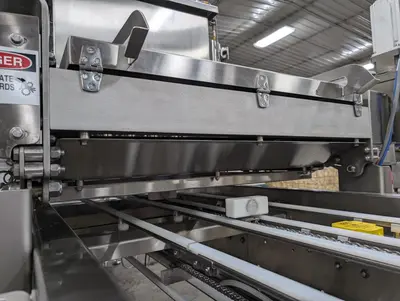

Model: 5P-32, S/N: 33560A, SS magnetic pan infeed conveyor w/ 19.5 in. lug spacing x 32 in. wide. SS depositing hopper 18 in. long x 30 in. wide x 25 in. deep w/ paddle agitation. Hopper cover has 6 in. dia. ingredient port, rectangular 17 in. long x 8 in. wide opening and level indicator. (2) Blue poly depositing cylinders (33560321) and (33560363). Dry ingredient depositor w/ SS hopper and agitation. 32 in. long dual plastic belt discharge pan conveyor. Allen Bradley L18ERM PLC and Powerflex 525 vfds. Automation Direct Touch screen controls. SS construction, washdown motor and drives, adjustable legs, on casters. 230V, 3 Phase, 60 Hz, 20 Amps.
Overall Dimensions: 192 in. long x 67 in. wide x 93 in. tall

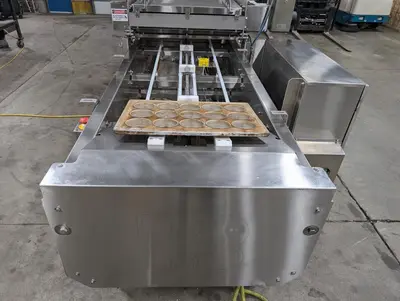

Previously running 26 in. x 18 in. (3x5 spot) pans. 4 in. dia. spots x 1.5 in. deep
Typical speeds: 35-40 rows/advances per minute
Material of Construction : Stainless Steel
Shop Tested : Shop Tested - Running
Manual : Included
Overall Dimensions : 192 in. long x 67 in. wide x 93 in. tall
Approximate Weight : Approx. 4,500 lbs.
