LeBlond 15" x 54" Regal Servo Shift Engine Lathe available for sale. Features a 15" swing, 54" centers, 2.2656" spindle bore, and 7.5 HP power with Taper attachment. Handles 45 RPM with a 9.5" swing over cross slide. Ideal for precision machining tasks.
| Swing | 15" | 381 mm |
| Centers | 54" | 1,371.6 mm |
| Spindle Bore | 2.2656" | 57.546 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 45 RPM | 45 RPM |
| Swing Over Cross Slide | 9.5" | 241.3 mm |

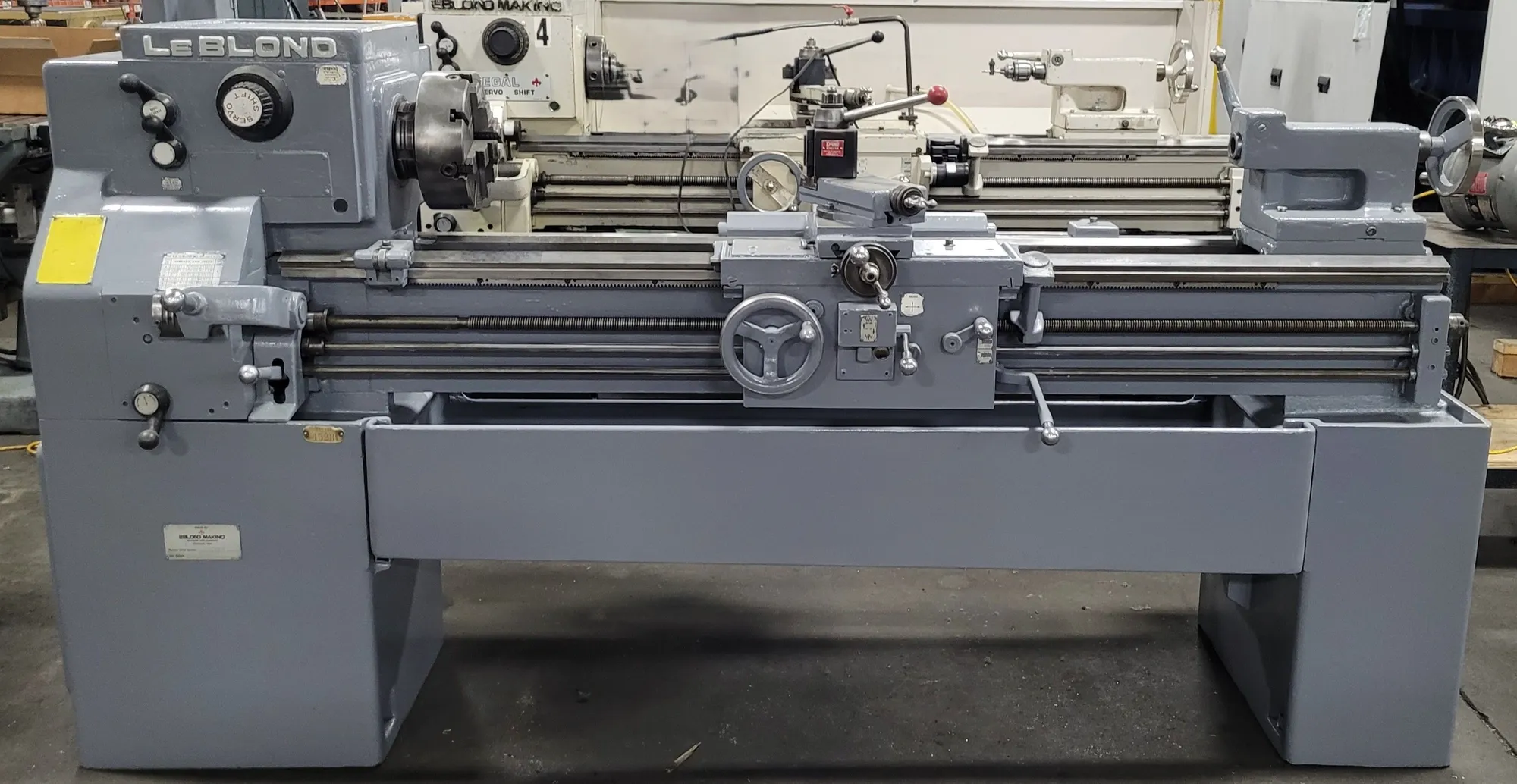

15" x 54" LeBlond 15 Regal Engine Lathe w/ Taper
4 Jaw Bison Chuck
Key Specifications:
Swing Over Bed: 15" (rated), 15.5" (actual)
Swing Over Cross Slide: 9.5"
Distance Between Centers: Varies (e.g., 30", 36", 54")
Spindle Speeds: 12 speeds, typically 45 - 1800 RPM (some models 60-2400 RPM)
Spindle Bore: ~1.5"
Spindle Nose: L0
Spindle Motor: 3 HP to 7.5 HP
Tailstock Taper: #3MT (Morse Taper)
Cross Slide Travel: ~8.875" (7-7/8")
Compound Travel: ~3.875" (3-7/8")
Weight: ~3,000
Power 460V 3 phase
