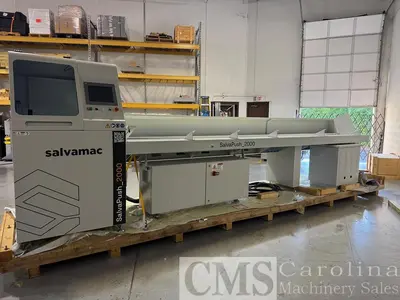

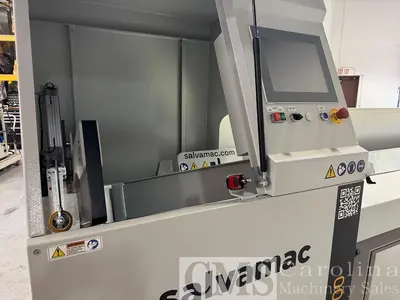

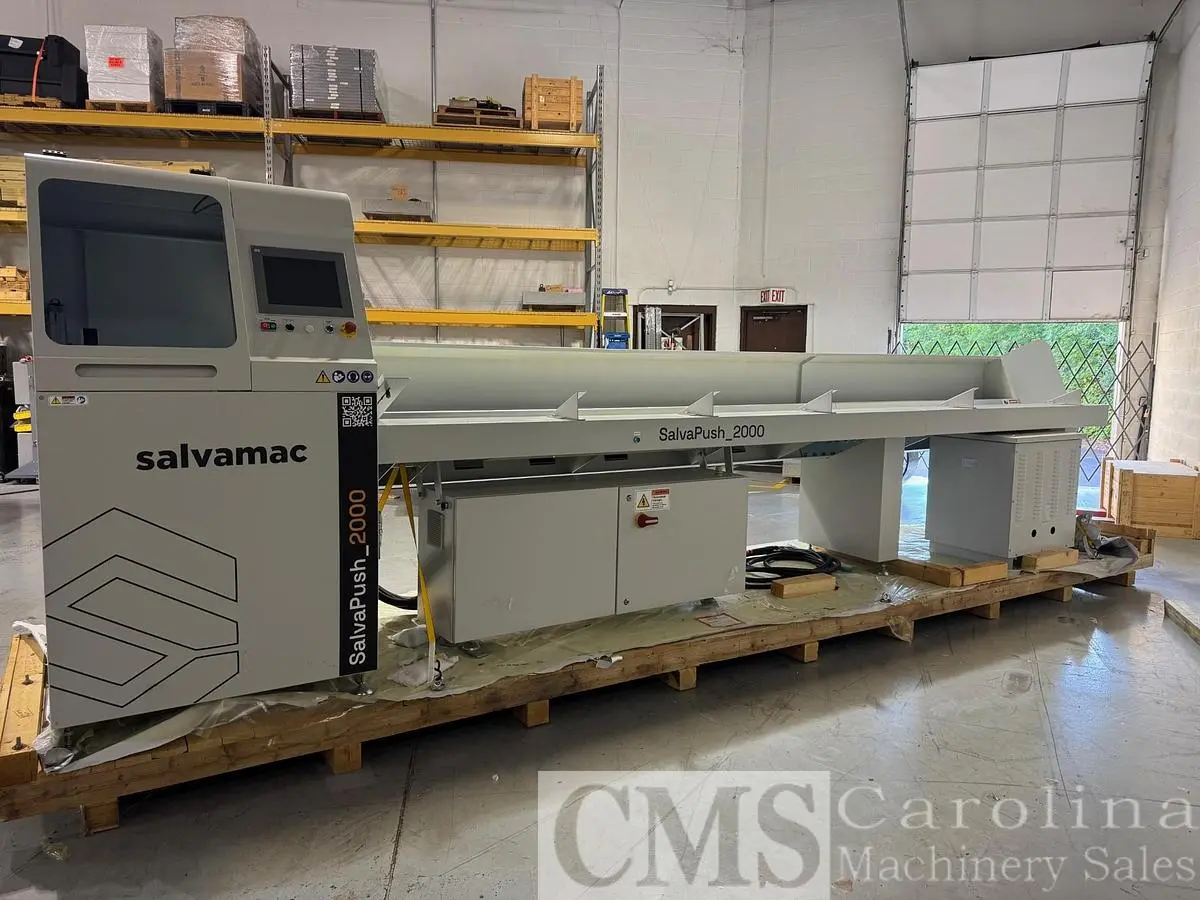

USED 2024 SALVAMAC SALVAPUSH 2000 OPTIMIZING SAW

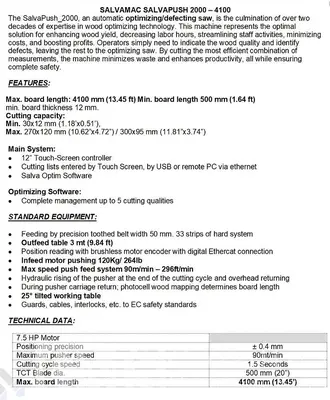

Salvamac Salvapush 2000-4100 Optimizing/Defect Saw

Max. board length: 4100 mm (13.45 ft) Min. board length 500 mm (1.64 ft)
min. board thickness 12 mm
Blade : 500mm (20”).
Cutting capacity:
Min. 30x12 mm (1.18’x0.51’),
Max. 270x120 mm (10.62”x4.72”) / 300x95 mm (11.81”x3.74”)

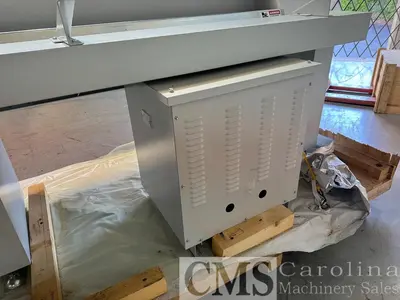

240v/480v 3 phase with transformer

•           Feeding by precision toothed belt width 50 mm. 33 strips of hard system
•           Outfeed table 3 mt (9.84 ft)
•           Position reading with brushless motor encoder with digital Ethercat connection
•           Infeed motor pushing 120Kg/ 264lb
•           Max speed push feed system 90m/min – 296ft/min
•           Hydraulic rising of the pusher at the end of the cutting cycle and overhead returning
•           During pusher carriage return; photocell wood mapping determines board length
•           25° tilted working table
•           Guards, cables, interlocks, etc. to EC safety standards
