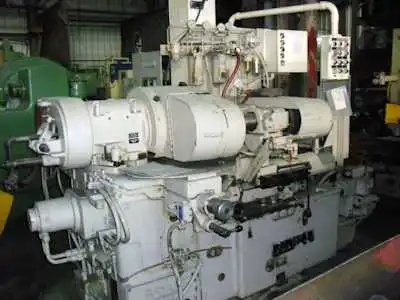

USED 1971 BRYANT 1316-J

MODEL #1316-J BRYANT HOLE AND FACE INTERNAL GRINDER

EQUIPPED WITH:

30,000 RPM Grinding Spindle
(1) Facing Spindle
Dresser
Hardinge Speed Chuck
Digital RPM Readout
Collet Chuck
Fan Cooled Hydraulic Unit
1/2 HP Coolant Pump, Tank & Guards
220/440/3/60 AC Motor W/110 Volt Controls
Fully Enclosed Fan-Cooled Type Motors

SPECIFICATIONS:

Total Swing: 16"
Grinding Stroke (Maximum Depth of Hole):
Plain Spindle: 9"
Cam Lock Spindle: 8"
Total Wheelslide Stroke: 20"
Max. Travel of Work Table (Including Feed): 9 3/4"
Workhead is Adjustable for Grinding Included Angles Up To: 90 Deg.
Work Spindle: 100-800 RPM
Wheel Drive Motor: 7 1/2 HP, 3600 RPM
Oil Pump Motor: 3 HP, 1200 RPM
Work Drive Motor: 3 HP, 375-1350 RPM
Capacity of Oil Reservoir: 30 Gal.
Capacity of Coolant Tank: 60 Gal.
Approx. Net Weight: 6550 lbs
Approx. Gross Weight: 7300 lbs
Floor Space with Coolant Tank and Oil Tank: 90" x 75 1/2"

MACHINE HAS LIGHT WORK IN GOOD CONDITION.
F.O.B., TRUCK, WARREN, MI
