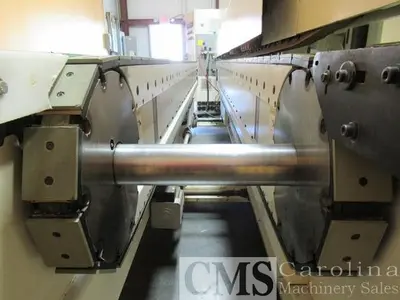

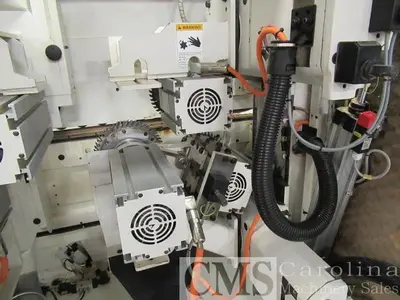

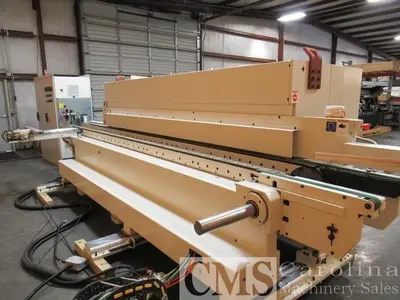

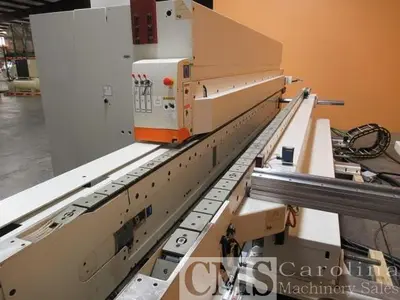

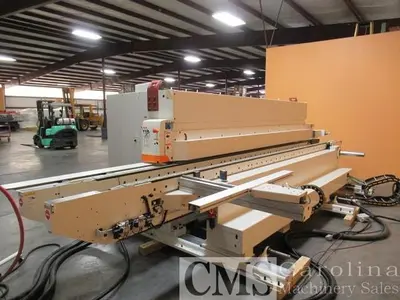

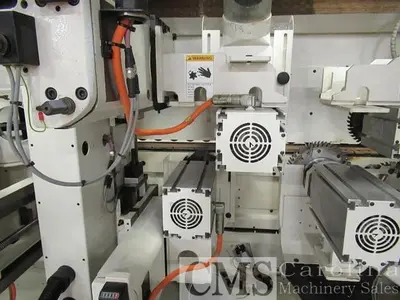

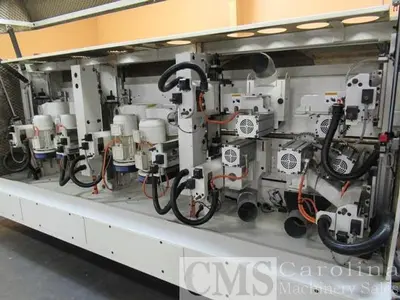

USED 2008 SCMI CONCEPT NT-M SINGLE END TENONER
Overview
Top And Bottom Scoring: 4hp
Trim/Hog: 10hp
Top And Bottom Tenons: 10hp
Coping Unit With 40 Mm Spindle (6-3/4″ Under Nut): 8.5hp
Coping Unit With 40 Mm Spindle (6-3/4″ Under Nut): 8.5hp
Sand/Cope Unit With 40 Mm Spindle (6-3/4″ Under Nut): 8.5hp
Sand/Cope Unit With 40 Mm Spindle (6-3/4″ Under Nut): 8.5hp
Variable Speed Feed (16 To 96 Fpm): 6hp
Max Working Width: 800 Mm
Min Working Width: 170 Mm
Min Working Width With One Chain: 55 Mm
Max Working Height: 100 Mm
Equipped With:
“Mobile 10” Touchscreen Screen, Utilizes Encoders For Reference On Where To Position All Units In The X And Y Axis
Manual Digital Counters For Tilting
Mahros Return Conveyor
