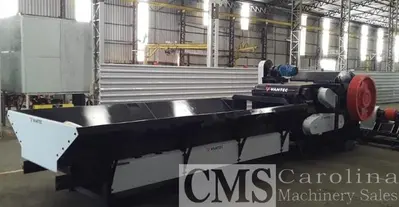

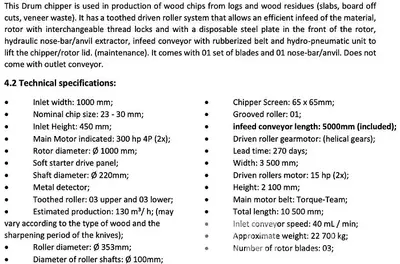

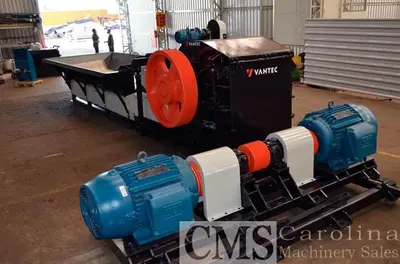

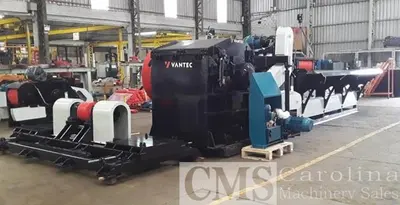

This Drum chipper is used in production of wood chips from logs and wood residues (slabs, board off cuts, veneer waste). It has a toothed driven roller system that allows an efficient infeed of the material, rotor with interchangeable thread locks and with a disposable steel plate in the front of the rotor, hydraulic nose-bar/anvil extractor, infeed conveyor with rubberized belt and hydro-pneumatic unit to lift the chipper/rotor lid. (maintenance). It comes with 01 set of blades and 01 nose-bar/anvil. Does not come with outlet conveyor.
Inlet width: 1000 mm;
Nominal chip size: 23 - 30 mm;
Inlet Height: 450 mm;
Main Motor indicated: 300 hp 4P (2x);
Rotor diameter: Ø 1000 mm;
Soft starter drive panel;
Shaft diameter: Ø 220mm;
Metal detector;
Toothed roller: 03 upper and 03 lower;
Estimated production: 130 m3/ h; (may vary according to the type of wood and the sharpening period of the knives);
Roller diameter: Ø 353mm;
Diameter of roller shafts: Ø 100mm;
Chipper Screen: 65 x 65mm;
Grooved roller: 01;
Infeed conveyor length: 5000mm (included); • Driven roller gearmotor: (helical gears);
Width: 3 500 mm;
Driven rollers motor: 15 hp (2x);
Height: 2 100 mm;
Main motor belt: Torque-Team;
Total length: 10 500 mm;
Inlet conveyor speed: 40 mL / min;
Approximate weight: 22 700 kg;
Number of rotor blades: 03;
