USED MEREEN JOHNSON 441 RIP SAW WITH CAMERON AUTOMATION INFEED
Overview

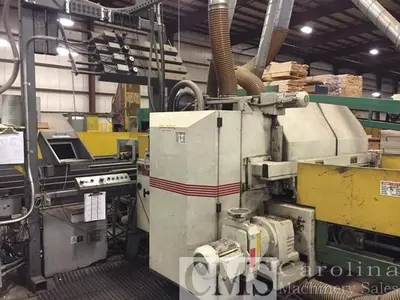

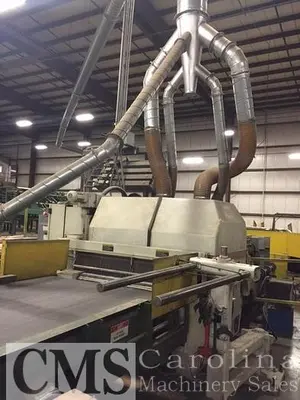

Mereen-Johnson Model 441-DC Gang Rip Saw
Capacity: Arbor space 41”
Arbor Drive: 75 HP 3600 RPM TEFC motor
Feed Drive: HP TEFC variable speed direct; 45’ to 225’ feet per minute

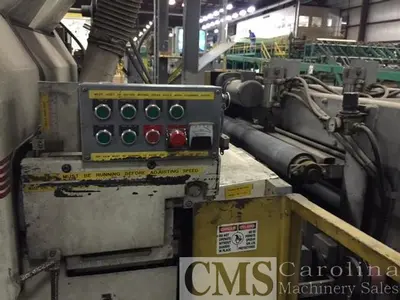

Hold Downs & Bed Plate: Four 5” dia.
Air loaded high yield idle press rolls
Saw Sleeve: One 41” capacity sleeve
Dust Collection: Four upper dust pick-ups:
two (2) 8” dia.,
two(2) 4” dia.,
one lower 4”dia.
Pick-up:(requires total 4820 CFM @ 5,000 feet per minute)

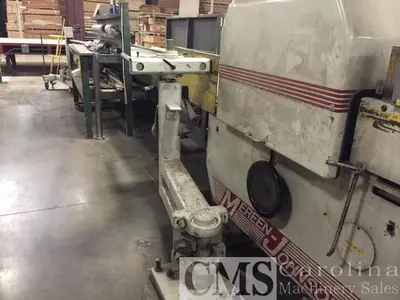

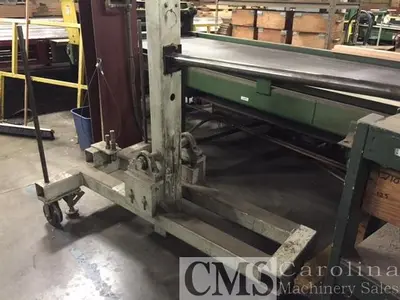

Swing Arm & Tip-Up Cart: One floor mounted dual shaft swing arm and one tip-up saw sleeve set-up cart
Electrical: Arranged for 3 phase, 60 cycle, 460V

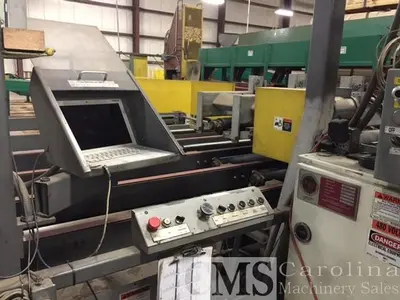

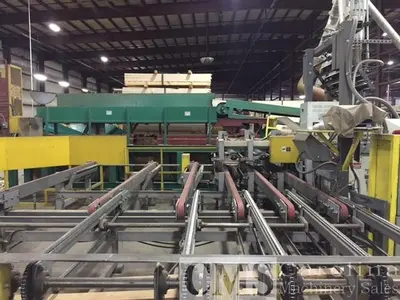

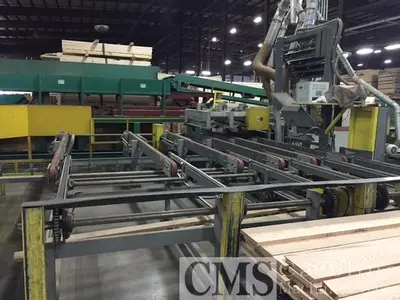

Cameron Automated Opti-Rip Model #34F-M1 System:
Manufacture Year: (2004)
Complete with length measurement Tally System

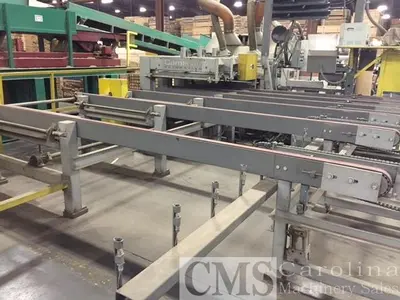

5 infeed belt and chains for feeding a Gang Rip saw up to 41” wide
16 width sensors

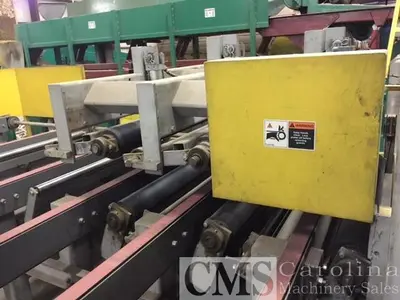

3 sets of pinch rolls for short stock

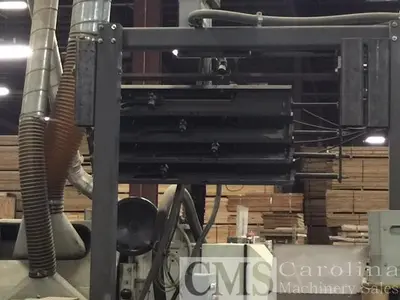

1 fixed & 4 movable laser lights
This system feed for 4’ to 16’ max lumber length
It feeds from operator right to left
Wired 220V; If 440V required, a transformer will be needed
