Coil Weight: 40000 pounds
Width: 60 inches
Thickness: .375 inches
ID: 24 inches
Max OD: 72 inches
Serial #: 3831
Width Range: 4.75"-60"
Gauge Range: .094
-.375" (.500" at 30")
Yield= 60,000 PSI
Coil ID: 22"-26"
Coil OD: 72"-36"
Pack Weight 10,000#
Pack Height 21"
Line Speed= 78' FPM

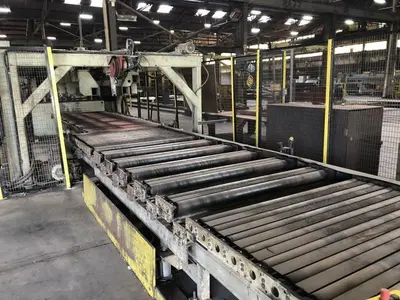

Complete Line with the Following Components:
Three Arm Entry Turnstile

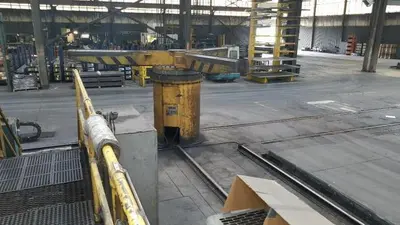

Nova Coil Car

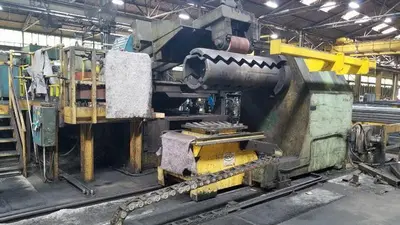

Mandrel Uncoiler
Powered Hold Down Roll
Straightener
Deburring Rolls
Pinch Rolls

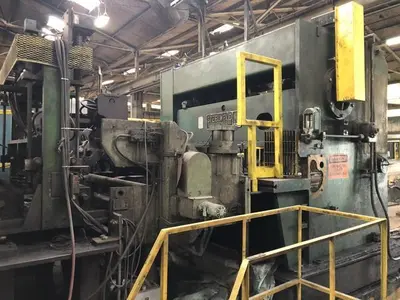

Steelweld Shear
Belt Conveyor

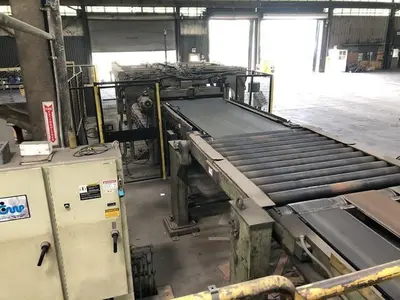

Cooper Weymouth Stacker with Scissor Table (Year 2011)
Stacker Capacity:
20" min. - 60" max. Width Blanks
16" min. - 144" max. Length Blanks
21" max. Stack Height Including Pallet
10,000# max. stack weight
End Discharge
Control Techniques Digital Drives
Delta RMC75 Motion Controller
New Controls in 2011
