USED STAMCO NOT SPECIFIED

Width: 72 inches
Thickness: .5 inches
Coil Weight: 60000 pounds
Arbor Size: 11 inches

Strip Width: 20"-72" (508mm-1800mm)

Strip Thickness: .075"-.500" (1.9mm-12.7mm)

Coil ID: 20"-30" on entry, 24" on Exit (508mm-762mm on entry) (610mm on Exit)

Coil OD: 36"-80" (914mm-2032mm)

Max Coil Weight: 60,000#

Line Speed: 150 FPM (50 MPM)

4 Cuts of .375" at 80,000PSI

4 Cuts of .500" at 50,000PSI
Electrical Upgrades: Allen Bradley 1397 Digital Drives (2006)

Line Direction: Left to Right

Complete Line with the Following Components:

Entry Pit Type Coil Car

Coil Saddle

Double Cone Uncoiler

Peeler and Hold Down Roll

Entry Edge Guides

Automatic Edge Controller

Pinch Rolls

Three Roll Flattener

Entry Crop Shear

Edge Guides Pinch Rolls

Two Slitting Heads

Two Scrap Choppers

Goose Neck Conveyor

Carry Over Table

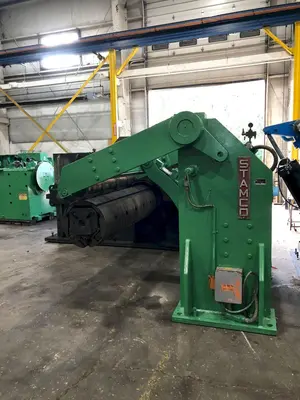

Recoiler with Overarm Separator

Exit L-Type Coil Car

Knives, Rubbers, and Tooling,

Electrical Upgrades to Allen Bradley 1397 Digital Drives (2006)
