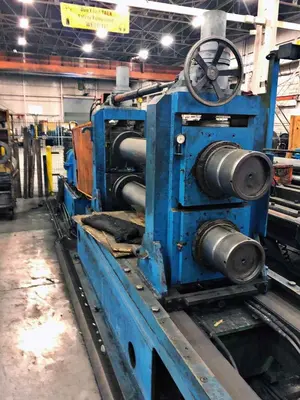

USED PAXSON NOT SPECIFIED

Width: 60 inches
Thickness: .250 inches
Coil Weight: 40000 pounds
Arbor Size: 10 inches

Manufacturer: PAXSON

General Specifications:

Material: HRS, CRS, HRPO, Galvanized / Maximum Strength: 50,000 PSI Shear, 40,000 PSI Yield

Thickness: .015" - .250"

Coil Weight Capacity: 40,000 lbs.

Coil Width (Maximum): 60" Trimmed, 62" Untrimmed

Coil I.D.: Entry: 20" - 24" / Exit 20"

Coil O.D.: Entry: 42" - 72" / Exit: 42" - 72"

Line Speed: Two-Speed, 130 and 390 FPM @ bare drum

Line Direction: Right to Left

Complete with the Following Components:

2-Arm Turnstile

Entry Coil Car

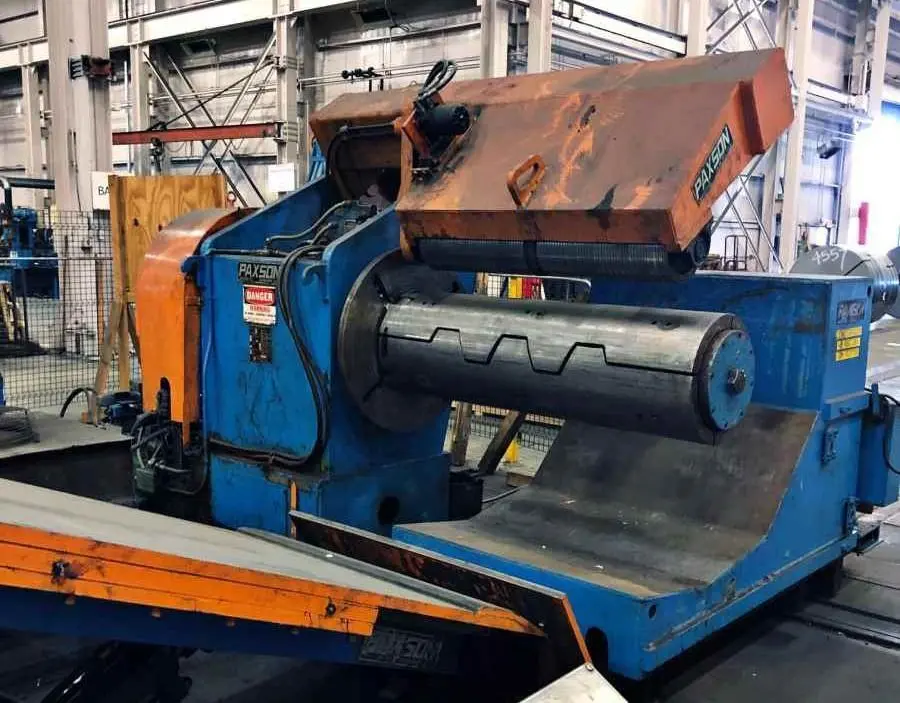

Uncoiler

Hydraulic Peeler Table

Slitter Entry Unit

Slitter Head
(2) Heavy Duty Scrap Winders

Hydraulic Lift Table for Threading

Recoiler

Exit Coil Car

Large amount of Knives, Spacers and Rubbers

Operators Panels
