Width: 36 inches
Thickness: .125 inches
Coil Weight: 15000 pounds
Arbor Size: 4.5 inches
15,000# coil capacity
.008 thru .125 gauge capacity

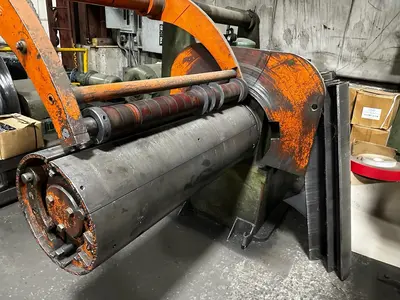

Uncoiler:
Yoder
15-1/2” - 18-1/2” hydraulic expansion
20” ID and 24” ID adapter plates
hydraulic sliding base
air cooled brake

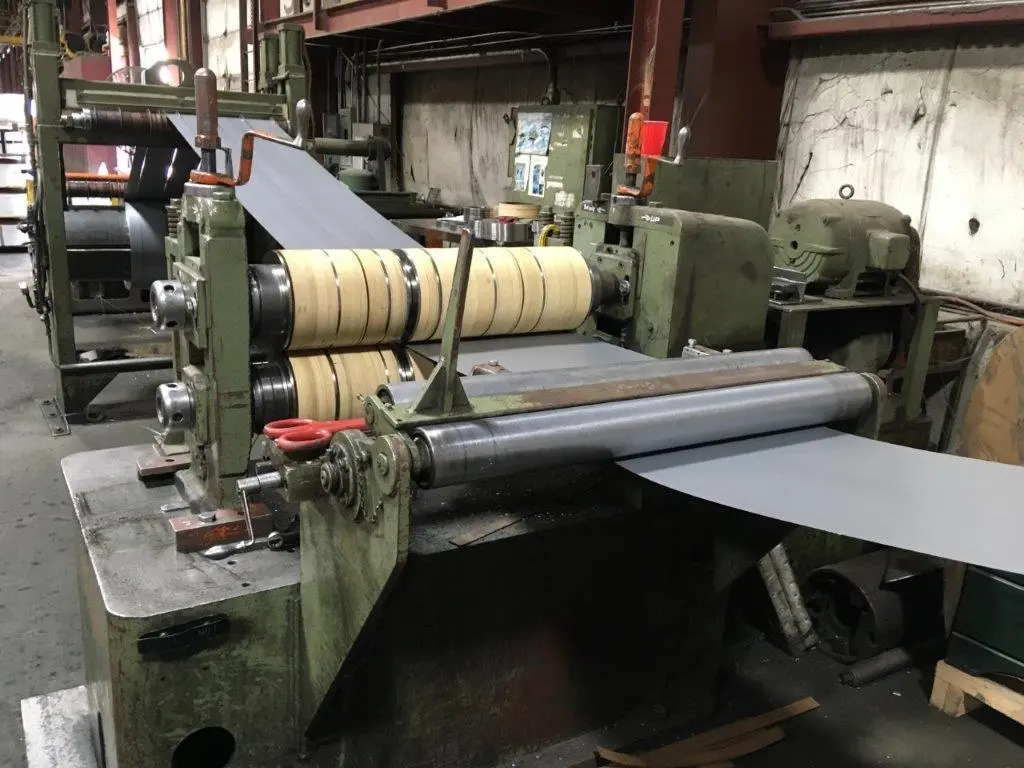

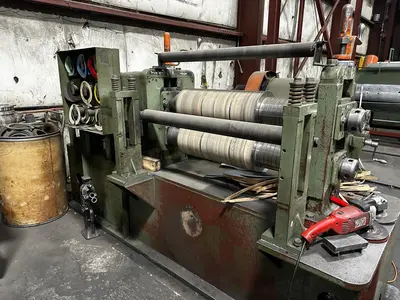

Slitter:
Yoder
4.500” arbors
electric feed-up drive
pinch rolls
edge guides

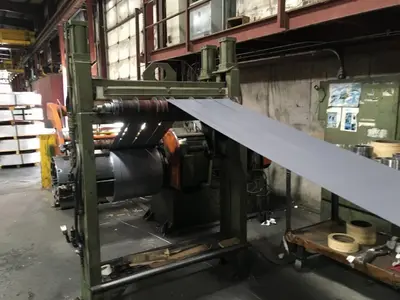

Tension Stand:
Custom Built
pneumatic drag wipe type
overarm

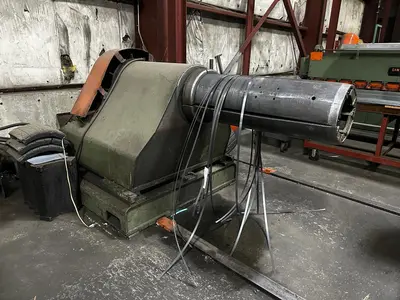

Recoiler:
15,000# coil capacity
16” ID – 20” ID with adapter plates
40 HP Eddy Current drive
Hydraulic push off
mechanical gripping and expansion
pneumatic controlled overarm

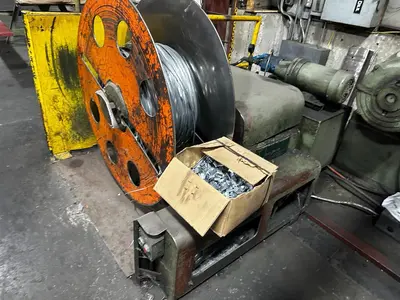

Scrap Winder:
1500# capacity - self-contained hydraulic
Hydraulic Unit:
All Electrics are 460 volt 3 phase
Tooling Knives Spacers and Rubbers
