USED HERR VOSS NOT SPECIFIED

Coil Weight: 20000 pounds
Width: 30 inches
Thickness: .065 inches
ID: 20 inches
Max OD: 72 inches

Coil Capacity:  20,000#

Thickness Range:  .015” - .060”

Minimum Strip Width:  2.5”

Maximum Strip Width:  30”

Coil OD:  72”

Coil ID:  20”

Sheet Length:  2” - 168”

Pack Height:  20”

Pack Weight:  10,000#

Line Speed:  125 FPM

Grade:  45K KSI

Complete Line With:

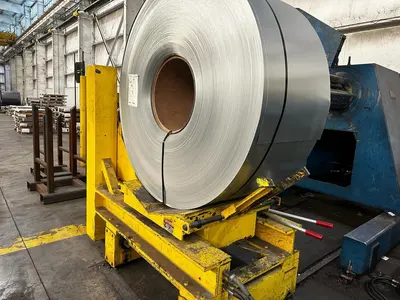

L-Type Coil Car

Floor Standing / Self Contained Hydraulics

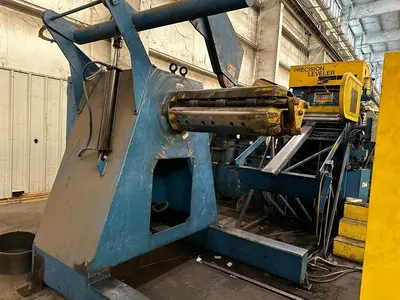

Mandrel Uncoiler

Hold Down Roll

Feed-up Drive

Hydraulic Expansion

3 Leaf Mandrel

Peeler Table In / Out / Up / Down

Edge Guides

Pinch Rolls

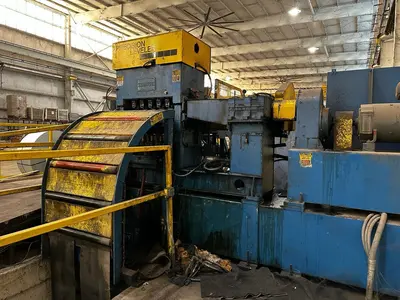

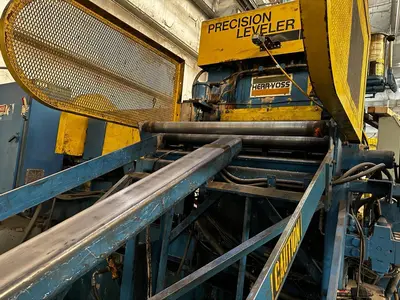

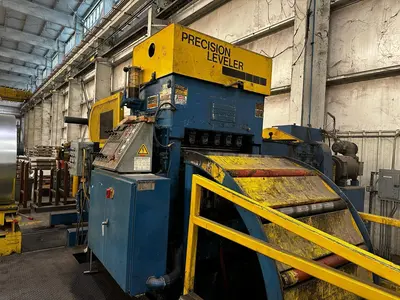

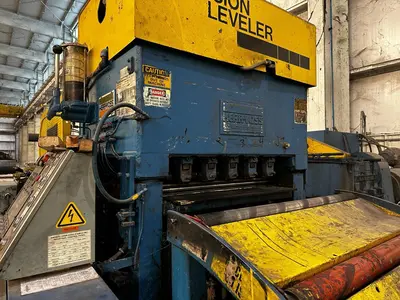

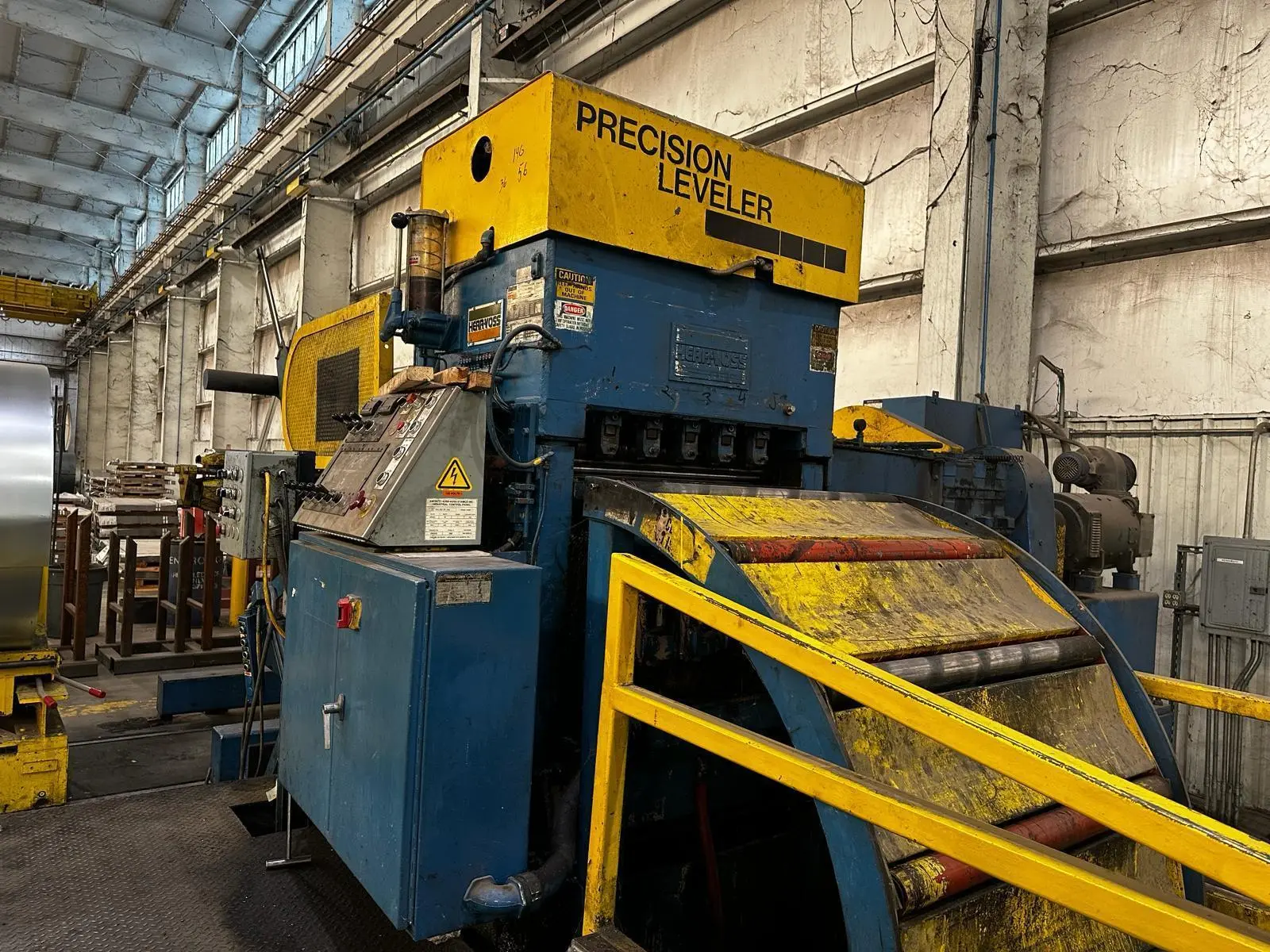

Herr Voss 5HI Precision Leveler

Model No:  RH 36/1.156-19/5, 5HI W/PR

5 Flights Top & Bottom Back-Ups

Individual Motorized Adjustments

Digital Readout Back Up Positioning

Entry & Exit Tilt with Digital Roll Positioning

2 Sets of Operator Stations

Spare set of Rolls

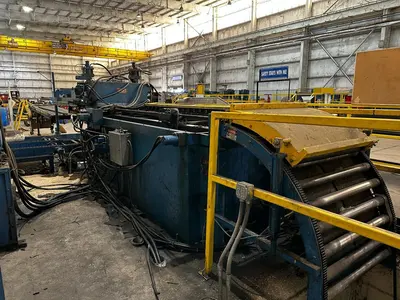

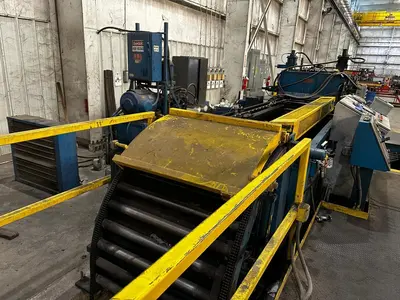

Looping Pit Cascade Rolls

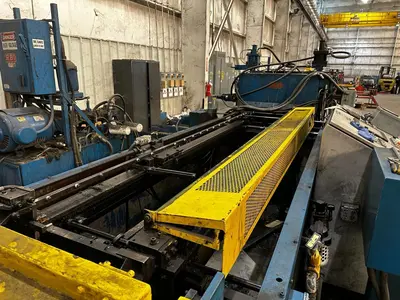

Red Bud  Gripper Feeder

Double Grip Feeder

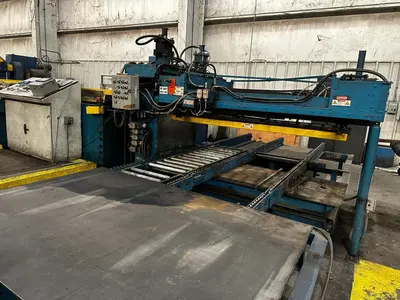

Red Bud Shear

Model SH18-140-36-6

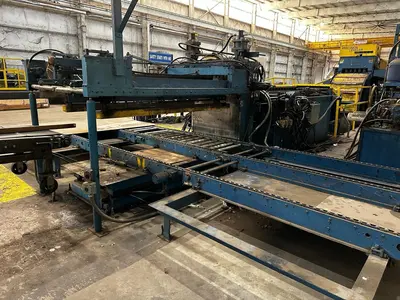

Drop Type Stacker

Lift Tabes

Side Squaring

Motorized Width Adjustment

Motorized End Stop

Side Pallet Feed

Side Discharge

Motorized Belt Conveyor for Short Lengths

Central Hydraulic Unit

Spare Set of Rolls for Leveler

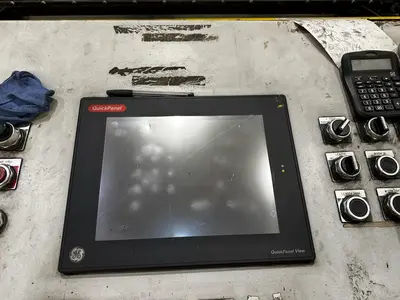

Quick Panel View Digital Readout
