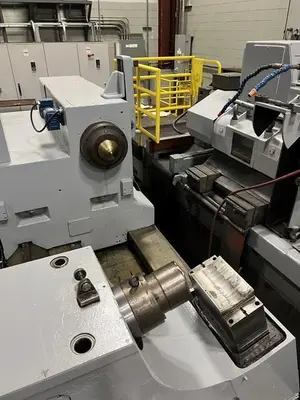

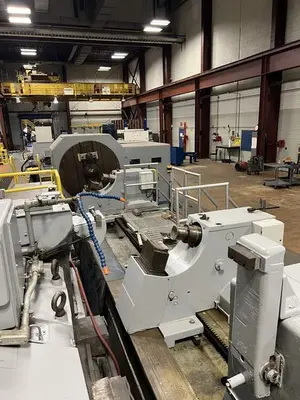

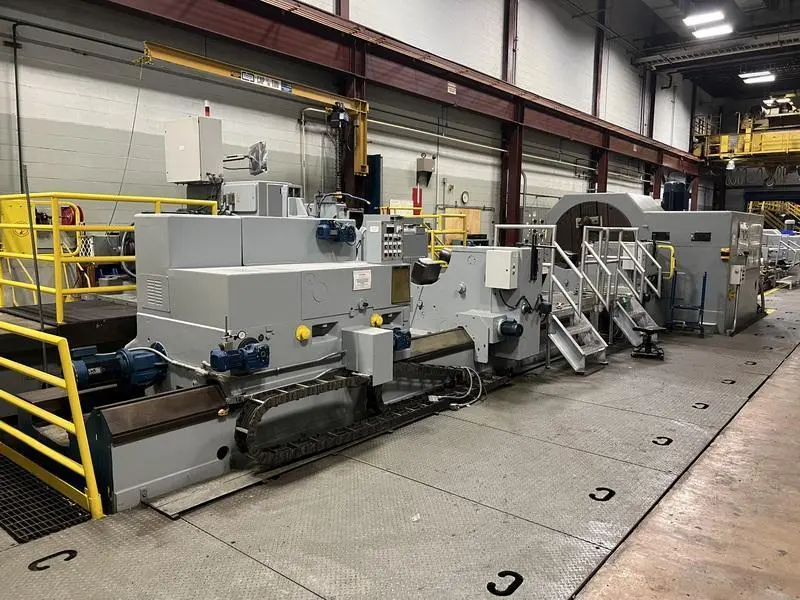

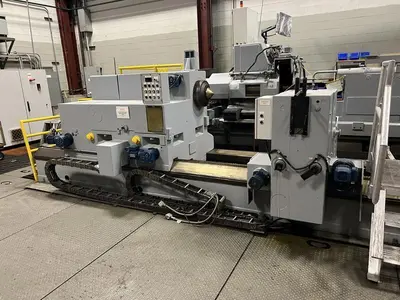

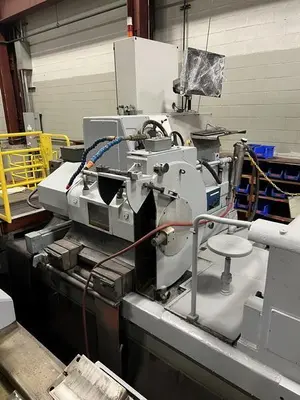

1700mm (67") x 8000mm (26') Wemex Heckert Roll Grinder Model SAXW-1600/2

Swing: 1600 millimeters
Centers: 8000 millimeters
Weight Between Centers: 165000 pounds
Grinding Wheel Dia.: 900 millimeters
Grinding Wheel Width: 760 millimeters
Crowning (Yes/No): yes
CNC Control: yes
Weight: 192000 pounds

Wemex Roll Grinder (Italian)

Model:  SAXW-1600/2

Serial No. 10.5201-000
Crowning and Cambering Capabilities

Max Grinding Diameter - 1700mm (67") with 760mm Grinding Wheel

Max Grinding Diameter - 1550mm (61") with 900mm Grinding Wheel

Min Grinding Diameter -  250mm (10") with 900mm Grinding Wheel

Center Height:  1000mm (40")

Maximum Center Distance:  5000mm - 8000mm (16' - 26')

Maximum Work Piece Weight:  75,000kg  (165,000 Lbs)

Work Drive Motor:  68KW

Variable Work Speeds:  2.5 - 40 RPM

Grinding Carriage Feed:  35 - 3600 mm/min

Longitudinal Rapid Movement of Grinding Carriage:  3500mm/min

Grinding Wheel Drive Motor:  66KW

Grinding Wheel Speed:  375 - 1125 RPM

Automatic In Feed Grinding Wheel to Radius Workpiece:  .0025mm - .05mm

Rapid Approach Of Grinding Wheel:  150 / 300 mm/min

Micro Infeed of Grinding Wheel by Hand:  .0005mm

Crown Referred to Radius of Workpiece:  +/- .01mm - 1.5mm

1 Pair of 2 Jaw Steadies with Fine Measuring

Roll Neck Diameters:  250mm - 500mm

1 Pair of 2 Jaw Steadies with Fine Measuring

Roll Neck Diameters:  480mm - 800mm

1 Pair of 2 Jaw Steadies with Fine Measuring

Roll Neck Diameters:  800mm - 1000mm

Magnetic Auto Filter

Paper Band-Type Auto Filter

Tank & Chip Tray

Continuous In-Feed Mechanism of the Grinding Wheel for Compensation of Wheel Ware

Stabilization of Power

Dynamic Wheel Balancing

Electronic Vibration Indicator

Wheel Mount

Roll Head Grinding Unit

Cone Grinding Carriage

Rough Grinding, Finish, Fine & Superfinish Grinding

Re-Conditioning Work Rolls and Back-Up Rolls

Hard & Soft Rubber Rolls

Machining of:  Cylindrical, Convex and Concave Rolls of Various Materials

Dimension of Grinding Wheels:

Max:  750mm x 100mm x 305mm and 900mm x 100mm x 305mm

Min:  450mm x 100mm x 305mm

Servo Motor Movement / Adjust on Headstock, Tailstock, Grinding Wheel, Steadies Etc.

(Both Push Button Stand & HMI)

Head Stock Operator Push Button Panel

Computer Controlled

Carriage Flex I/O

Tailstock Forward & Reverse

2 Tailstock Clamps

Center Adjustment In / Out

2018 Electrical Upgrade

Allen Bradley PowerFlex Digital Drives 755

Allen Bradley 1609 SPO Ethernet Network Card

Allen Bradley PLC
