7 5/8" Diameter x 15,000 PSI Hydrostatic Tester

Pipe Dia: 7.625 inches

Year 2014
Capacity:  15,000 PSI
Max Diameter:  7 5/8"
Wall Thickness:  .250" - .453"
Length Range:  45' - 24'

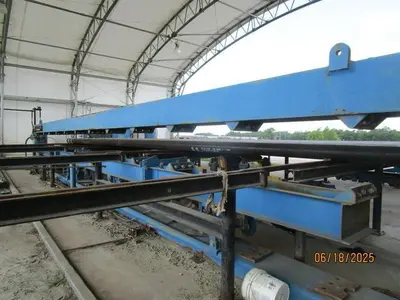

Pipe Infeed Conveyor
Pipe Indexing
Powered Conveyors 1 , 2 , 3
Pipe Lift Table
Pipe Clamping with 48" Spacing

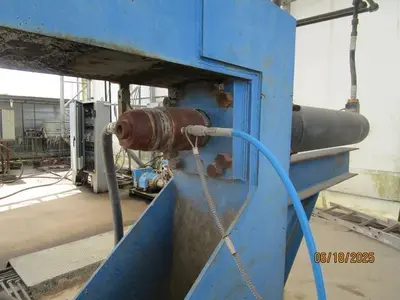

Hydraulic Opposing Clamp Heads
Power 150 HP

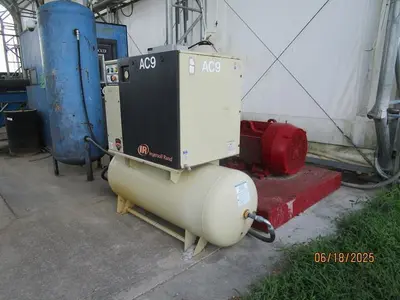

2 Air Compressors
Fill Pump

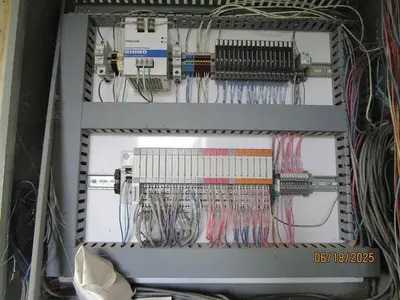

Operator Push Button Station

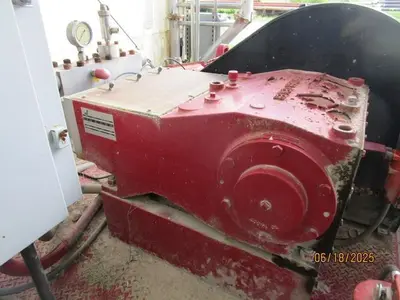

Gardner Denver High Pressure Pump
Rated Driver RPM:  1780
Rated Pump RPM:  515
Max Pressure (PSI/Bar)  10K/689
Flow 100% Vol. GPM (US) / LPM:  23.88/90.4
