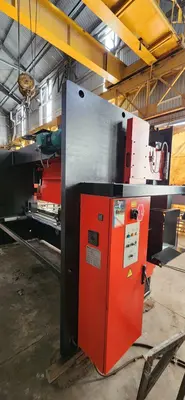

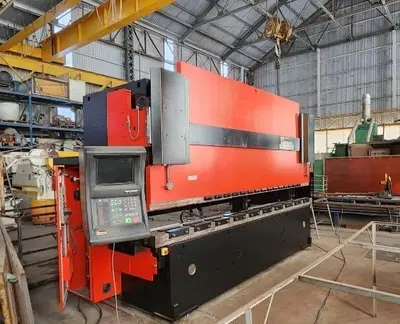

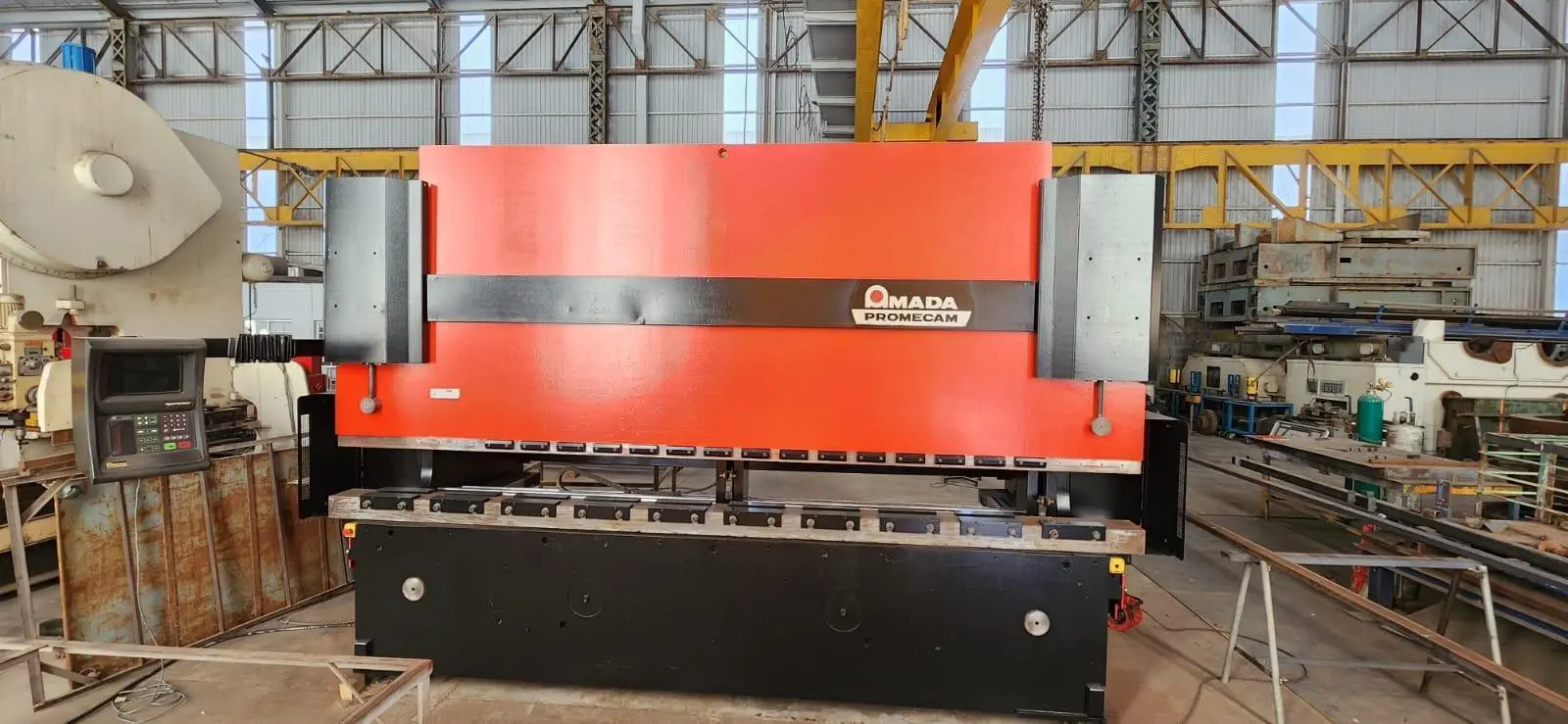

USED 1997 AMADA HFB2204

Serial Number: HFBO 220 40 H971117
Maximum Tonnage: 2200 kN / 220 Tons

Model: HFB2204 220 Metric Tons 4 Meter Bed

Year: 1997

Overall Length of Bed: 168.5'' (4280 mm)

Distance Between Housings: 148'' (3760 mm)

Stroke: 7'' (180 mm)

Open Height: 16.3'' (415mm)

Closed Height: 4.72'' (120mm)

Control  Operator: OP2

Weight & Dimensions: 189'' (4810mm) L x 86.6'' (2200mm) W x 120.8'' (3070mm) H, 15300 Kg Weight
Voltage/Frequency: 460v / 80 Hz,  230v / 60 Hz
Power: 19 kW
Nominal Current: 32A, 60A
Number of Phases: 03
