Enhance your CNC operations with the Royal 10214 Spindle Type Live Center. Featuring a 4MT size, high-speed steel tip, and 4,500 RPM max, it offers precision with +/-0.00005" accuracy. Ideal for demanding tasks with 4,050 lbs. thrust load capacity.

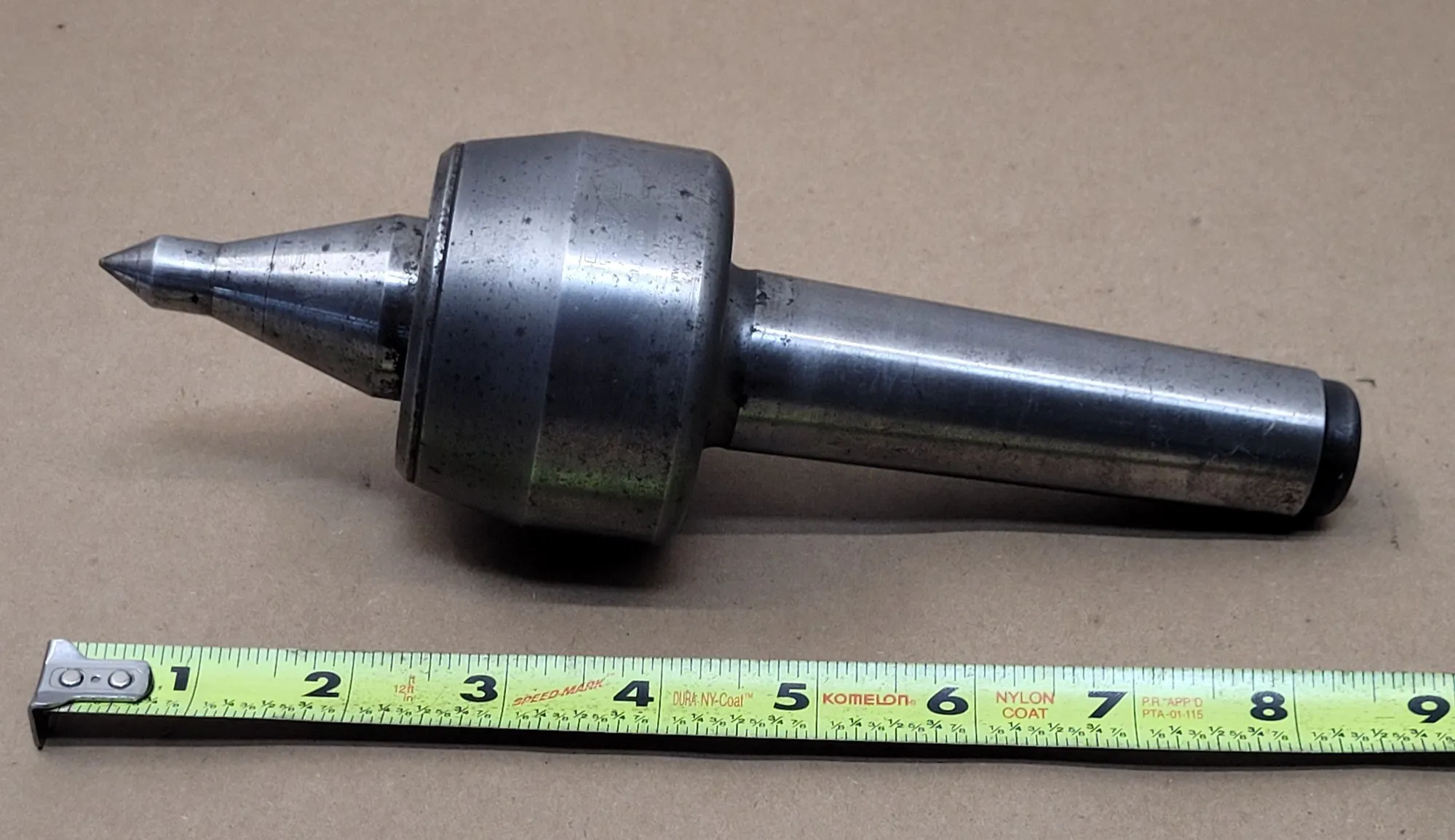

Royal 10214 Spindle Type Live Center – 4MT
USED
Brand: Royal
Tool Type: Spindle Type Live Center
Size: 4MT
Part Number: 10214
OAL: 9” (approx.)
Max Suggested RPM 4,500
Thrust Load (lbs.) 4,050
Point Style: CNC
Tip Material: High Speed Steel
Point Diameter: 1.25 in
Point Length: 2.18 in
Head Diameter: 2.68 in
Head Length: 1.98 in
Accuracy: +/-0.00005"
Included Angle: 60°
