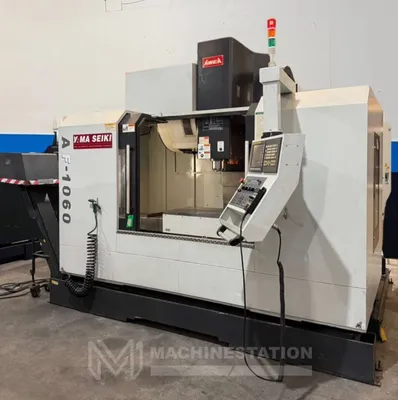

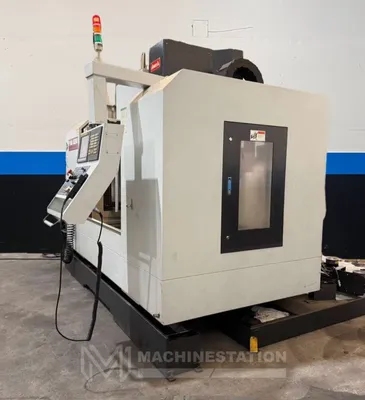

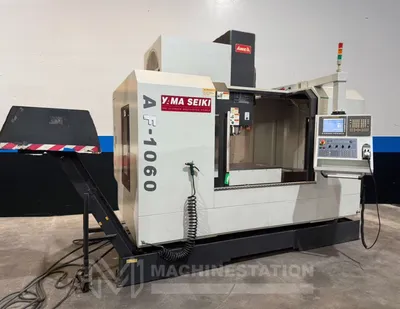

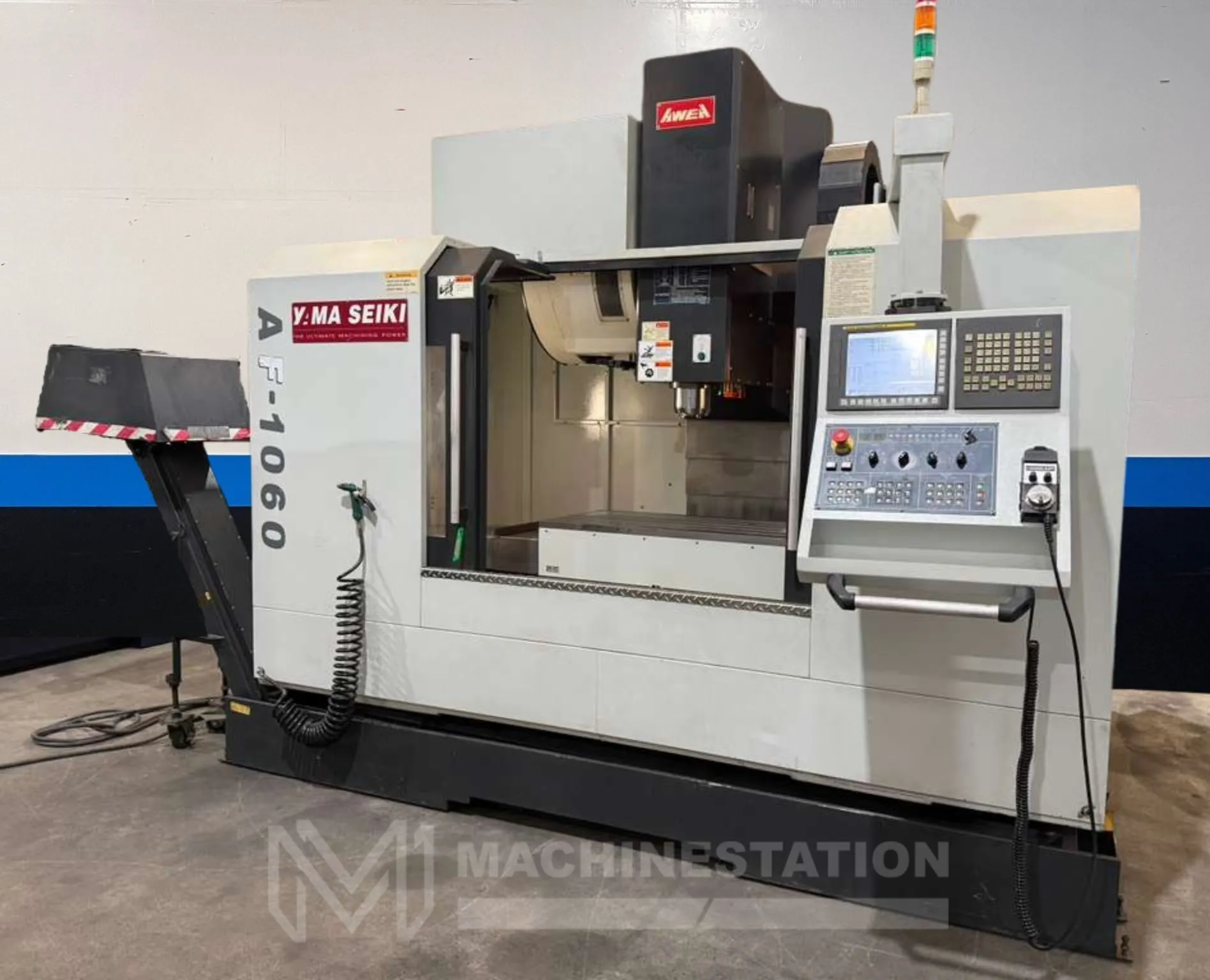

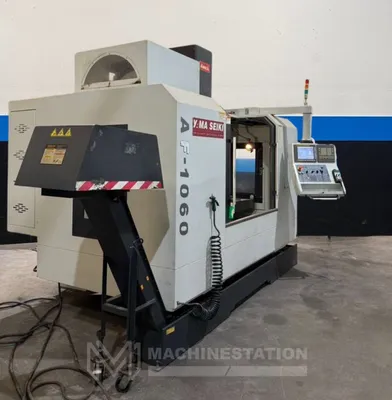

USED 2012 YAMA SEIKI AF-1060

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

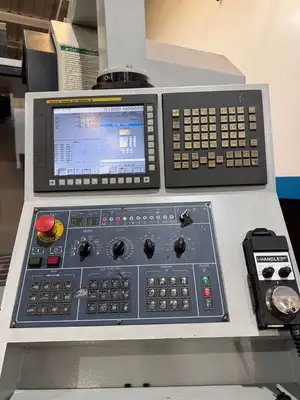

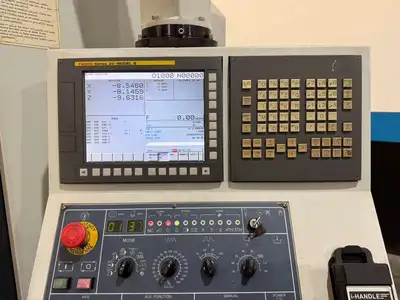

Fanuc 31i-MB CNC Control
7,427 Hours Cutting Time
Linear Ways Construction
USB Port & PCMCIA Card Slot
Telescopic way covers
Coolant System

Travels:
X-Axis: 41.7″
Y-Axis: 23.6″
Z-Axis: 23.6″
Rapid Traverse Rates X & Y Axis: 1418 Inch Per Minute
Rapid Traverse Rates Z Axis: 945 Inch Per Minute
Cutting Feed Rates: 394 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 3.93″ – 27.5″

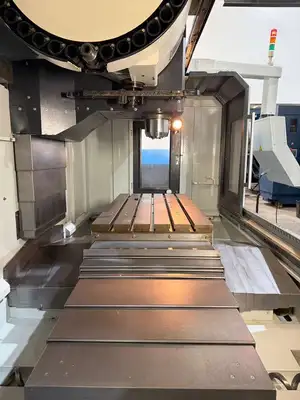

Table:
Length: 47.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1540 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 36
Max Tool Weight: 15.4 lbs
Max Tool Dia: 3.14″
Max Tool Length: 9.84″

General:
Air Required: 85 psi 6 scfm

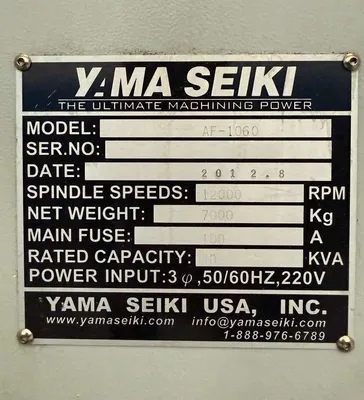

Power: 220v / 50/60 Hz / 3-Phase / 40 kva
Overall Dimensions: 122.1″ x 86.6″ x 112.9″ High Without Chip Conveyor
Weight: 15400 lbs

4th axis ready (wired) need amplifier
12000 RPM High Speed Spindle
36 Station Automatic tool changer

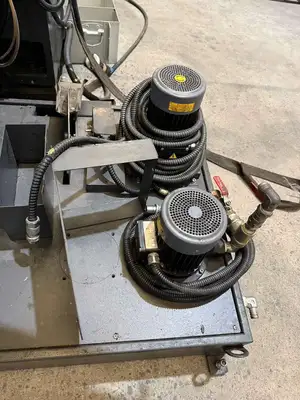

Through Spindle Coolant
Spindle Chiller Unit
MPG Handwheel Control
Chip Conveyor
