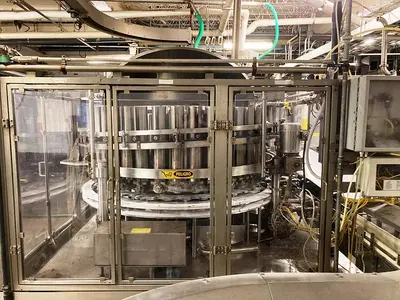

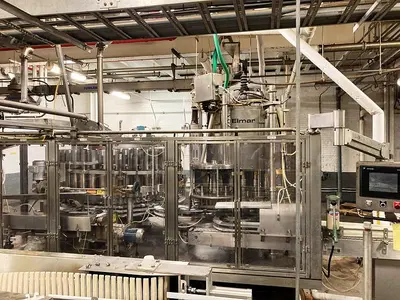

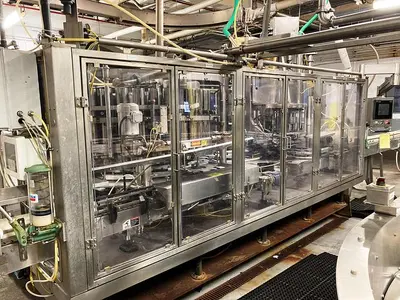

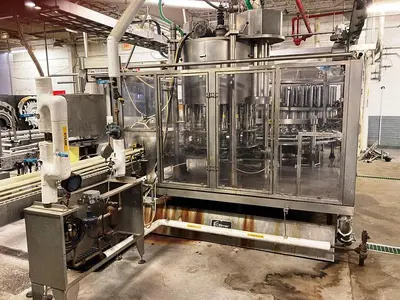

USED ELMAR MODEL RPE-36/16 MONOBLOCK FILLER/CAPPER ELMAR MODEL RPE-36/16 MONOBLOCK FILLER/CAPPER

Elmar Monoblock RPE-736/16 RH\nserial number EM07-7022\nmanufactured in 2007\n \n36 Station Elmar Filler Turret and one Fowler Zalkin 16 Head "Pick and Place" Capping Turret complete with Infeed Timing Screw, Infeed Starwheel, Intermediate Transfer Starwheel and Discharge Starwheel all mounted on a Monoblock Main Base with:\n \n*         3-3/4" Diameter Super Extended Cylinders (max fill range 67 fluid ounces)\n \n*         3-3/4" Diameter Stainless Steel "Dome Style" Pistons with PTFE Wear Rings and "0" Ring.\n \n*         Motorized Volume Adjustment\n \n*         Adjustable Container Rails with Replaceable UHMW Wear Surface.\n \n*         Quick Change Feed Screw - Toolless\n \n*         Change Parts - Toolless\n \n*         Powered Bowl Height Adjustment (3-15/16" to 9-15/16"), for Instant Height Change-Over.\n \n*         Central Lubrication Cluster - Lincoln Automatic Lubrication System (manual pump)\n \n*         Complete Electronic Control System with A-B 5/05 PLC and Operator Station with Allen-Bradley InverterDrive System , 480V/3PH/60HZ\nThe Elmar Industries Inc. Filler Control system is a programmable logic controller (PLC) based control system. The basic unit controls filler speed, fill volume and the No Container No Filler (NCNF) trip mechanism.\n \nFOWLER/ZALKIN 16-head "Pick and Place" Capping Turret (PCD 498 mm) to mount on a Elmar filler Monoblock. This turret is equipped for the application of 63 mm, screw-on closures to PET bottles, at a rate of applied closures per minute. This machine is equipped as follows:\n \n*         Set of Sixteen (16) Zalkin BH-3 Hysteresis magnetic clutch heads for screw-on closures requiring an application torque of 12 to 36 inch pounds +-10%.\n \n*         Heads are equipped for use with quick change chucks for cap handling and application.
