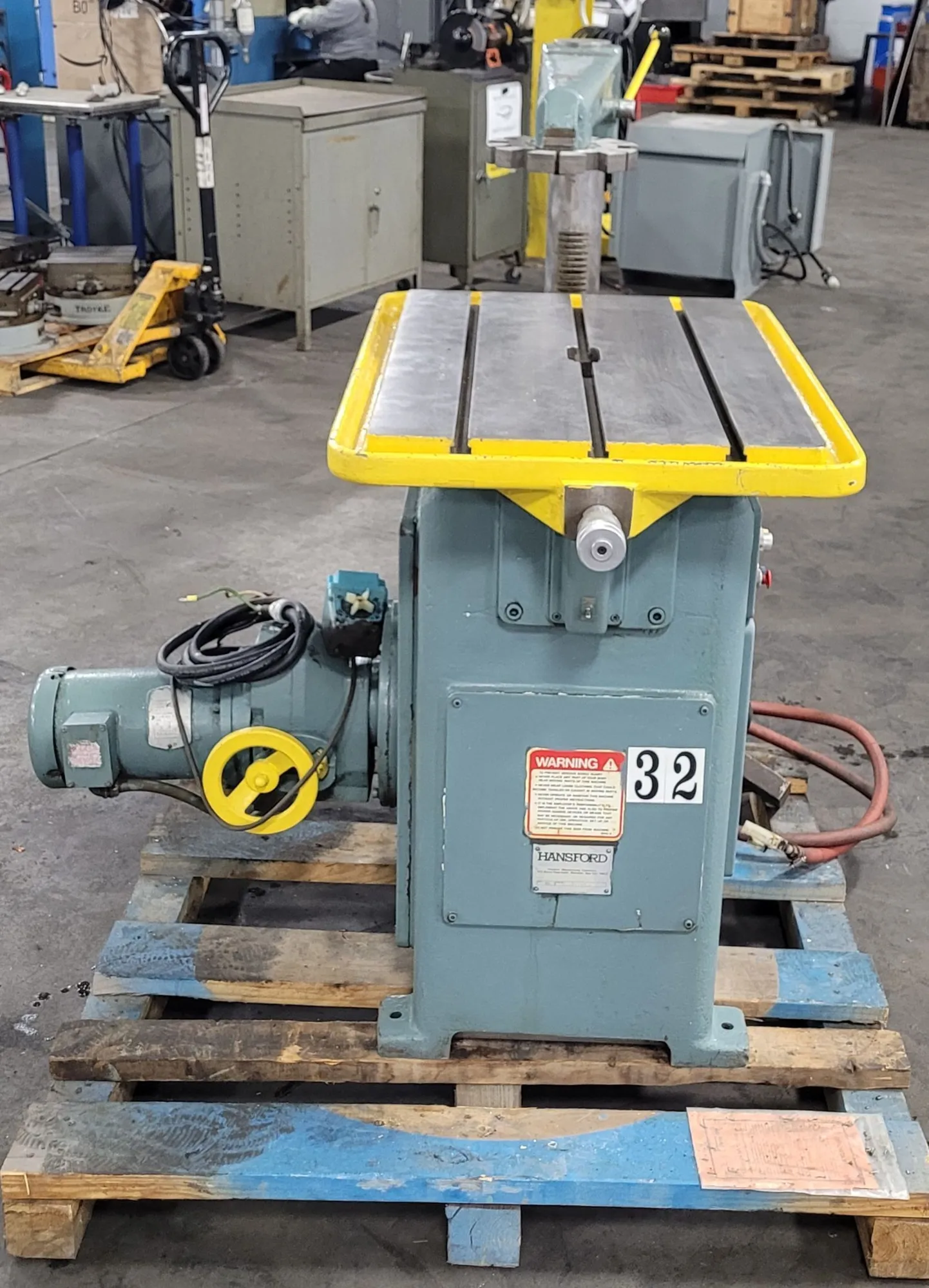

USED HANSFORD DAVIS 15B

Hansford Davis Keyseater Model 15B, used, with extensive tooling. Keyway capacity: 1/16"–1-1/2". Throat depth: 19"–22". Max height: 12"–18". Cuts up to 18". 2 HP motor. Table: 20" x 31". Includes 27 broaches, metric and inch. Weight: 1250 lbs.

Davis Keyseater Model 15B w/Lots of Tooling
S/N 15 970
Manufacture Date: 1984
Keyway Cutting Capacity: 1/16″ to 1–1/2″ (in steel)
Throat Depth: 19″
With DA-60 extra throat depth assembly: 22″
Maximum Height of Work Standard: 12″
With D-1701 arm post option: 18″
Maximum Length of Cut:
16″ long cutter: 4″
20″ long cutter: 8″
24″ long cutter: 12″
30″ long cutter: 18″
Table Size: 20″ x 31”
Table Travel:1–1/2″
Strokes per Minute Stroke: 4–1/2”
Standard: 45
With DA-27 variable speed drive: 11–56
Motor HP: 2 hp
Air Pressure Req. For Auto Feed: 80psi Minimum
Air Consumption: 3SCFM
Number of T-Slots in Table: 3
Net Weight: 1250 lbs.
Shipping Crate Dimensions 40″ x 44″ x 48″
Phase: 3
WIRED: 460

This comes with tons of Keys and Tooling:
Key Size/Overall Diameter:
1.278/5.996
1.278/5.113
.996/5.113
.900/3.627
1.112/4.184
1.003/1.330
.187/.525
.647/1.750
1.262/4.748
1.253/4.748
1.000/4.523
1.023/4.367
.341/3.490
1.282/6.600
1.113/5.304
.518/1.748
.520/1.748
.898/3.120
.892/3.000
.640/2.865
.887/3.503
.890/3.110
1.117/3.491
.500/2.173
.640/2.870

Keyseating Broach Sizes - 27 in all
Metric & Inch sizes
2 – 28mm
2 – 1.250”
32mm
22mm
20mm
16mm
14mm
12mm
10mm
1.002
1.000
.888
.881
.750
.637
.890
3994
.875
.375
.500
.4372
.625
.1875
.3125
.250
