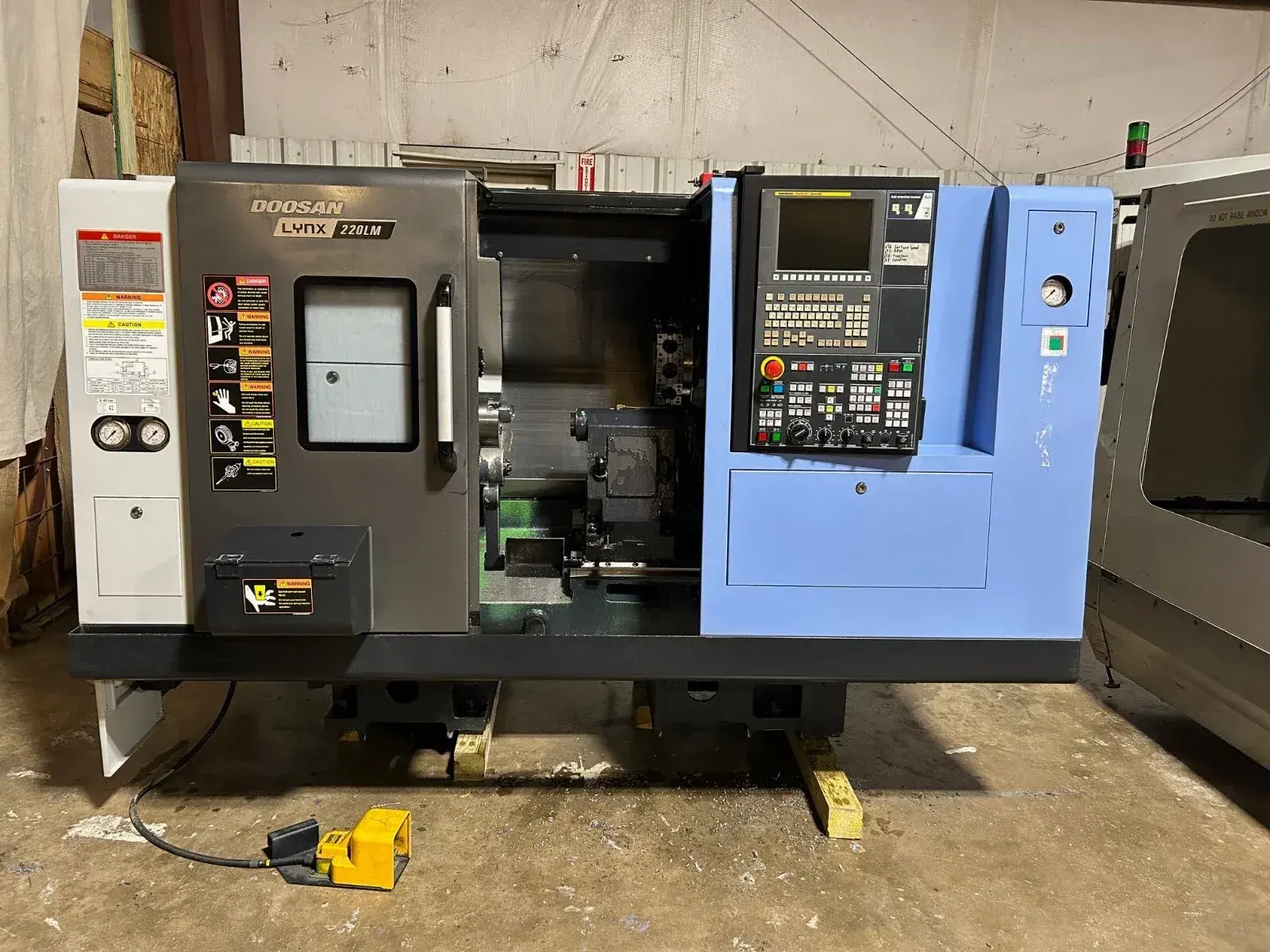

2015 Doosan LYNX 220LMA CNC Lathe for sale. Features: 23.2" swing, 20.1" machining length, 6" chuck, and 2" bar capacity. Equipped with 20 HP, max 6000 RPM, 9.84" turning diameter, and live tooling. No tailstock or sub spindle. Used condition.
| Swing | 20.1" | 510.54 mm |
| Machining Length | 20.1" | 510.54 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 9.8" | 248.92 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Dimensions | 103.5L x 63W x 65.2H | 103.5L x 63W x 65.2H |
| Weight | 7300 lbs | 7300 lbs |
Manufacturer Doosan
Model Lynx 220 LMA
Year 2015
Condition Used
Model Lynx 220 LMA
Swing Over Bed (in) 20.1
Swing Over Saddle (in) 11.4
Max. Turning Dia. (in) 9.8
Max Turning Length (in) 20.1
Spindle Bore / Bar Working Dia. (in) 2.4 / 2
X-Axis Travel (in) 6.9
Z-Axis Travel (in) 21.7
Max. Spindle Speed (rpm) 6,000
Spindle Nose A2#5
Rotary Tool 12 Position
Min. Spindle Indexing Angle (C-Axis) 0.001 Degree Turret
Tailstock Quill (rpm) 6,000
Tailstock Quill Diameter (in) 2.6
Tailstock Quill Travel (in) 3.1
Main Spindle Motor (hp) 20
Rotary Tool Spindle Motor (hp) 5
Approx. Machine Dimensions (in) 103.5L x 63W x 65.2H
Approx. Machine Weight (lbs) 7,300
C Axis
Live Tooling
Parts Catcher
Fully Cleaned and Inspected
