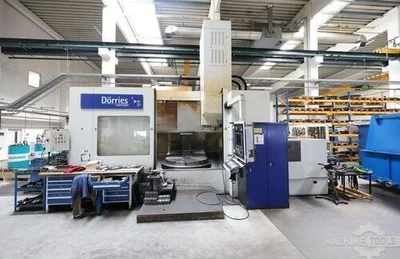

USED 2010 DORRIES VCE 1600/140 MC F
Overview
Description
Siemens SINUMERIK 840D SL CNC ControlLive Spindle & Table C-Axis16-40-fold pick-up magazineProtective deviceVarious turning tool holdersVarious SK50 tool holders and toolsVarious clamping devicesCoolant device with filterChip conveyorDocumentationCrossbeam Support: Travel range X-axis: ± 950 mm Crossbeam stroke W-axis: 600 mmRam: Cross-section Ram: 250 x 250 mm Plunging diameter: 340 mm Travel Z-axis Ram: 1100 mmDrilling and Milling Device: Distance between milling spindle and machine table 1245 mm Tool holder SK 50 Drive power 30 kW Speed range 2,000 rpm Torque 1395 Nm
Specifications
Manufacturer: Dorries
Model: VCE 1600/140 MC F
Year: 2010
Condition: Used
Stock Number: 5654276
Table diameter: 1,400 mm
Swing: 1,600 mm
Turning height: 1,245 mm
Table capacity: 9,000 kg
Table turn speed: 450 rpm
Live spindle speed: 2,000 rpm
Live spindle motor: 30 kW
C axis speeds: 0.004 - 5 rpm
Table torque: 13,400 Nm
Table drive: 60 kW
Feed rates: 18,000 mm/min
Machine weight: 47.4 Ton
