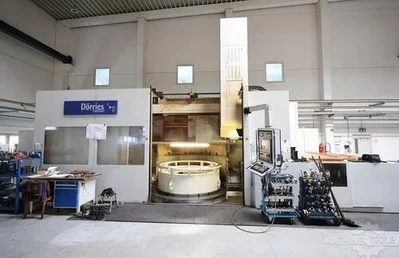

USED 2009 DORRIES VCE 2800/220 MC SO

Siemens SINUMERIK 840D CNC ControlLive Spindle & Table C-Axis24-72-fold pick-up magazineProtective deviceVarious turning tool holdersVarious SK50 tool holders and toolsVarious clamping devicesCoolant device with filterChip conveyorDocumentationCrossbeam Support: Travel range X-axis: ± 1,550 mm Crossbeam stroke W-axis: 1,200 mmRam: Cross-section Ram: 300 x 250 mm Plunging diameter: 380 mm Travel Z-axis Ram: 1,750 mmDrilling and Milling Device: Tool holder SK 50 Drive power 30 kW Speed range 2,000 rpm Torque 1395 Nm

Manufacturer: Dorries
Model: VCE 2800/220 MC So
Year: 2009
Condition: Used
Stock Number: 5654277
Table diameter: 2,200 mm
Swing: 2,800 mm
Turning height: 2,140 mm
Table capacity: 17,000 kg
Table turn speed: 280 rpm
Live spindle speed: 2,000 rpm
Live spindle motor: 30 kW
C axis speeds: 0.006 - 7.5 rpm
Table torque: 44,900 Nm
Table drive: 80 kW
Feed rates: 18,000 mm/min
Machine weight: 61.1 Ton
Total power requirement: 160 kW
