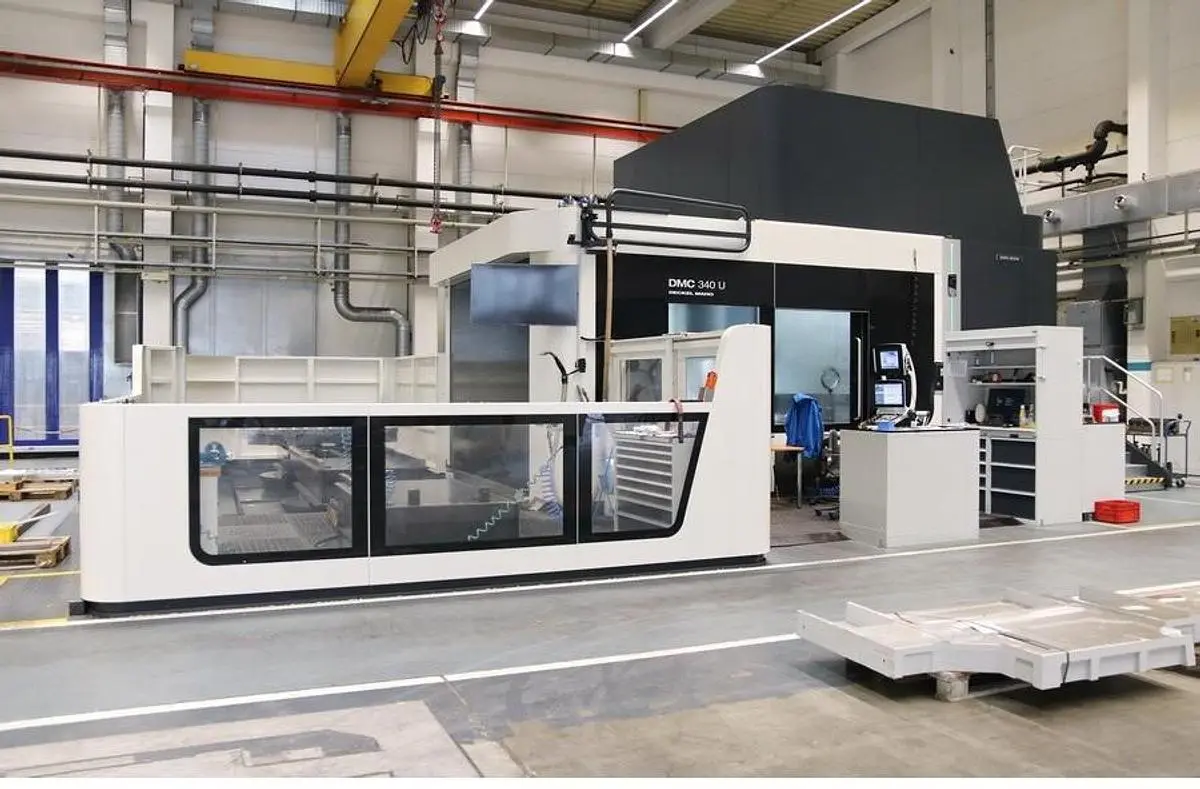

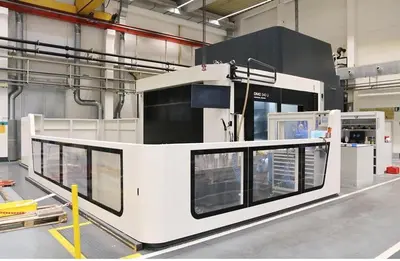

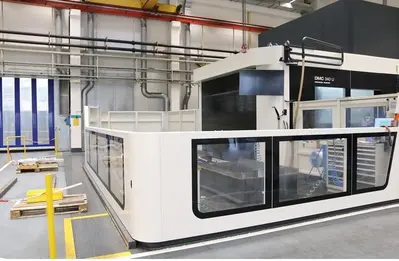

USED 2019 DMG DMC 340 U

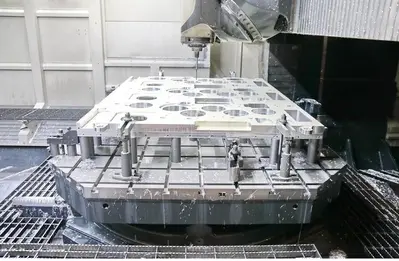

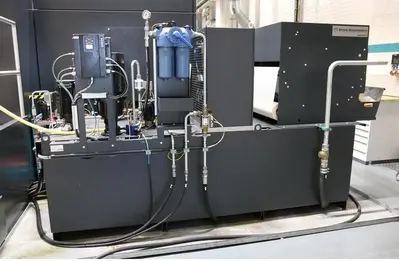

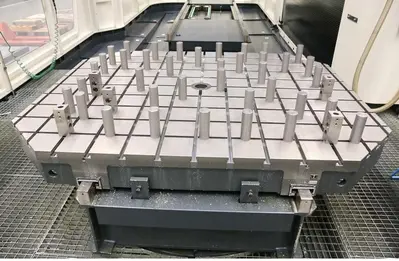

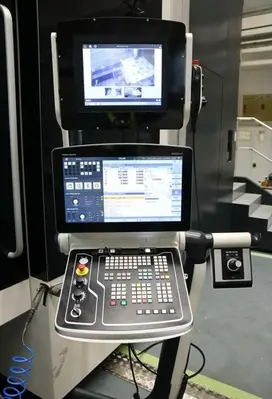

Only approx. 10,500 spindle hoursSiemens CELOS 840D SL Op CNC ControlDMC 340 UAccuracy packageMDynamics package (Improved surface finish with reduced machining time)Cone cleaning station with rotating brushesBalluff tool identificationMachine protection via rapid shutdown (MPC)Laminated safety glassMachine design for pit installationHeidenhain linear scales (instead of Magnescale)Camera remote system with screen on the control panelFeatures:3D quickSET Airblow through center of spindle autom. Frontdoor Chip conveyor Coolantsystem Documents elektr. hand wheel flush system high pressure coolant 10-80 baroil mist extraction pallet changer 2 pos.Rotary screen Signal lamp - 4 color test probe Renishaw RMP 60through spindle coolant tool setting (Blum Laser NT Hybrid)Main Spindle: max. spindle speed 20 - 15.000 rpm power capacity - main spindel 52 / 42 kW tool taper HSK-A100 max. Torque 404 / 280 Nm swivellable B: -30° / +180 °NC-Rotary Table: table diameter 2,500 x 2,000 mm max. table load 10,000 kg table speed 5 rpm distance spindle center to table - vertical 230 - 1,830 mm distance spindle nose and table - vertical -1,600 - 1,800 mm 2 Pallet with ChangerTool-Presetter: type - 5x Rad- / Wheel number of toolpositions 303 pos. max. tool diameter110 mm max. tool-dia with free toolbox 280 mm max. tool length 900 mm max. tool weight 45 kg tool changing time 7.5 sec

Manufacturer: DMG
Model: DMC 340 U
Year: 2019
Condition: Used
Stock Number: 5654278
X axis travel: 3,400 mm
Y axis travel: 3,400 mm
Z axis travel: 1,600 mm
Spindle speeds: 15,000 rpm
Spindle power: 52 / 42 kW
Tool taper: HSK-A100
Spindle torque: 404 / 280 Nm
Spindle Swivel B Axis: -30° +180°
Rapid traverse: 60 / 30 / 40 m/min
Feed speeds, max: 60,000 mm/min
Total power requirement: 140 kVA
Machine weight: 106 Ton
Machine dimensions: 14 x 13 x 7 m
