USED KALIX KX100B

🏭 Manufacturer
Kalix Dupuy (IWK Group)
Renowned for high-speed, precision tube filling and cartoning equipment for the pharmaceutical, cosmetic, and personal care industries.

📝 Description

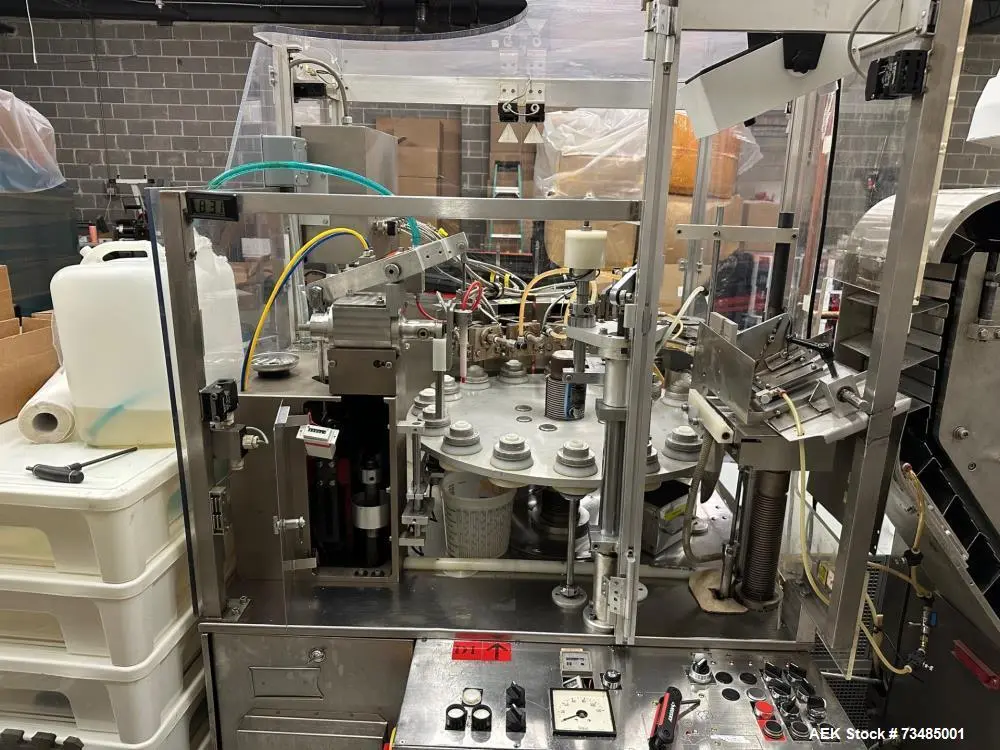

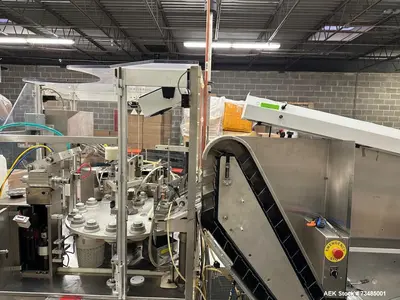

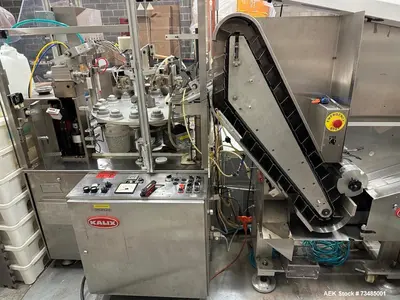

This used Kalix KX100 automatic tube filler is a high-speed, servo-driven tube packaging system engineered for plastic, laminated, or metal tube applications. Now tooled for 50mm diameter, 175mm length tubes (200 ml volume), it includes advanced features like a "No-Drip" piston fill system, bottom-up filling, heated sealing jaws with quench, and automatic tube loading via the Kalix Floor Feeder.
It was last used in a pharmaceutical production setting, ensuring it meets sanitary and cGMP operational standards.

⚙️ Specifications

Model: Kalix KX100

Tube Speed: 80–100 tubes per minute (product- and size-dependent)

Tube Materials: Plastic, metal, or laminated

Tube Size Range:

Diameter: 13.5mm to 50mm

Length: 60mm to 220mm

Fill Volume Range (with changeparts): 3cc to 350cc

Current Tooling:

50mm Diameter

175mm Length

200ml Volume

Filling System: Piston fill, bottom-up, “No-Drip” nozzle upgrade

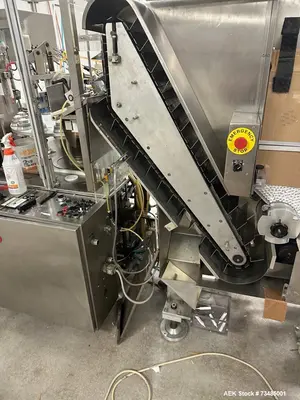

Tube Feeding: Kalix Floor Feeder (automatic tube loader)

Sealing System: Hot jaw heated sealer with water quench and chiller

Trim Station: Included

Electrical: 3 Phase / 60 Hz / 220V

Previous Use: Pharmaceutical production

Condition: Used, pharma-grade

🧪 Applications
Perfect for high-speed tube filling in regulated or hygienic environments including:

Pharmaceuticals (ointments, gels, creams)

Cosmetics (lotions, BB/CC creams)

Toothpaste and oral care products

Topical pain relief gels

Nutraceutical and vitamin pastes

Food pastes (condiments, concentrates)

Skincare and sunblock

Hair styling and dye products

Adhesives and chemical creams

Veterinary salves and pastes

📦 What Products Would This Be Used For?

Prescription topical ointments

Toothpaste in plastic tubes

Skin creams and lotions

Hair gels and creams

Over-the-counter pain gels

Face masks in tubes

Hand sanitizers

Sun protection cream

Nutrient or protein pastes

Cosmetic or dermatological serums
