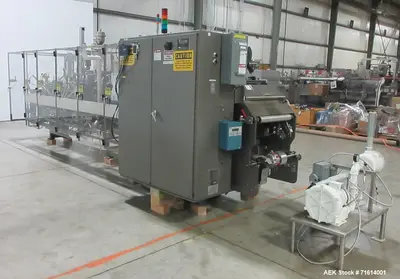

USED BARTELT IM7-14

Manufacturer Info

Manufacturer: Bartelt (Klockner / Klöckner)

Model: IM7‑14 Servo HFFS

Configuration: 2 product fill stations; currently set up for desiccant bead filler + laboratory medical device inserter (other fillers retrofit‑ready; consult AEK Sales)

Rated Speed: Up to 100 cycles per minute (application dependent)

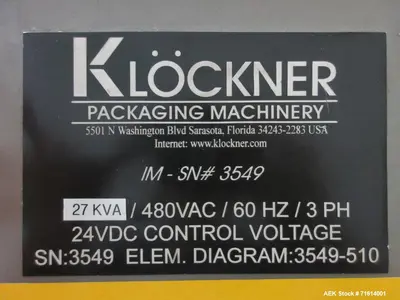

Power: 3/60/480V

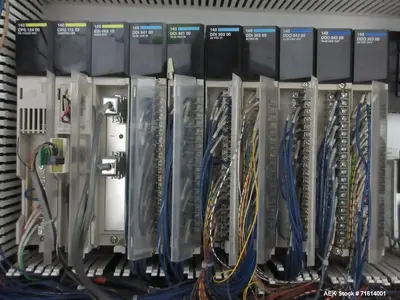

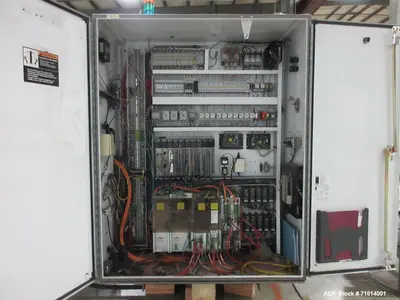

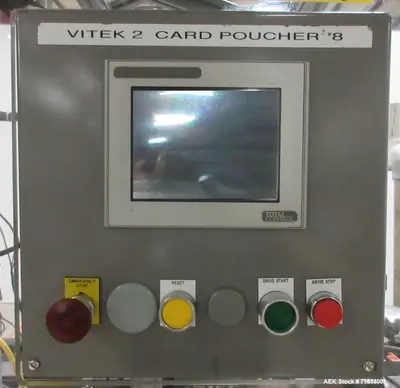

Controls: Schneider Electric PLC & EcoDrive servos

Condition: Used

Description

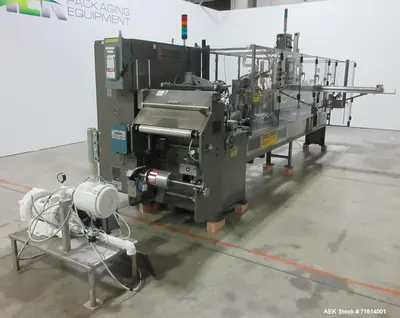

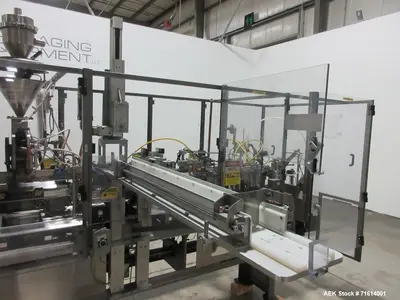

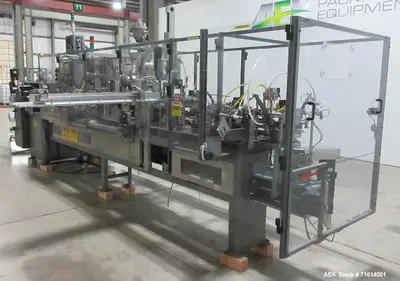

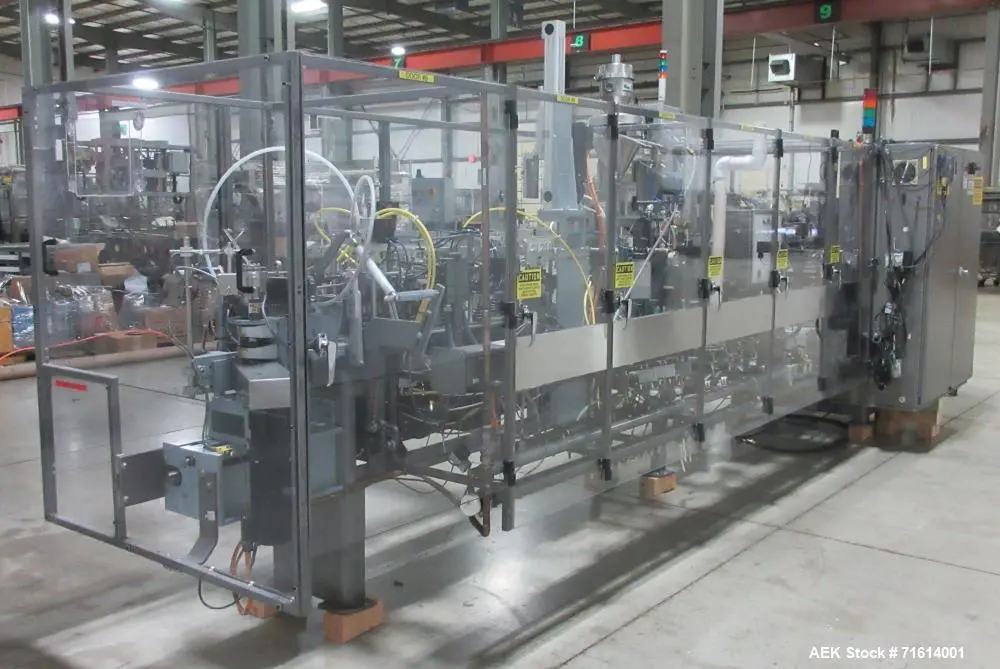

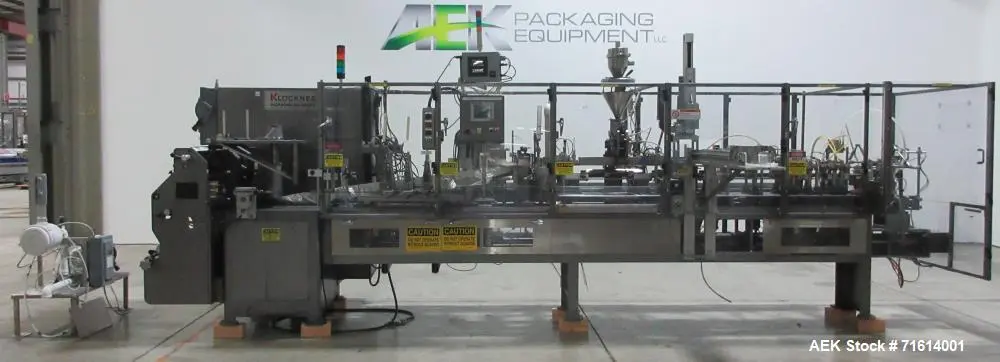

Industrial‑grade Bartelt (Klockner) IM7‑14 Servo Horizontal Form Fill & Seal pouching system configured for high‑speed production. This machine features servo film feed and servo indexing for precise registration, web tracking with automatic alignment, and a full vertical sealing suite (pre‑heat, final heat, quench). It’s presently tooled for 5‑1/2" W × 4‑5/8" H pouches within an adjustable range of 2"–5‑3/4" width and 2"–9" height (change parts may be required). Dual fill stations with air‑knife openers support multi‑component packaging; current tooling includes a desiccant bead filler and a laboratory medical device inserter. Discharge uses dual front‑and‑back alternating pick‑and‑place for smooth downstream transfer. A robust unwind package (6" core, power unwind, splice table) plus Versatec web tension, web tracking control, and automatic web alignment enhances run stability. Cluster Lube system simplifies maintenance.
Specifications

Machine Type: Servo Horizontal Form Fill & Seal (HFFS)

Model: IM7‑14 (intermittent motion)

Rated Speed: Up to 100 CPM

Pouch Size Range:

Width: 2" to 5‑3/4"

Height: 2" to 9"

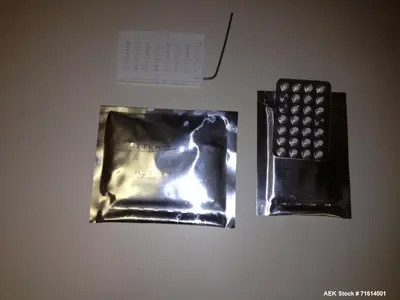

Current Tooling: 5‑1/2" W × 4‑5/8" H

(Change parts may be required for other sizes)

Stations & Tooling:

2 product fill stations with air‑knife pouch openers

Desiccant bead filler (installed)

Laboratory medical device inserter (installed)

Other fillers retrofittable (consult AEK Sales)

Film/Web Handling:

Servo film feed & servo indexer

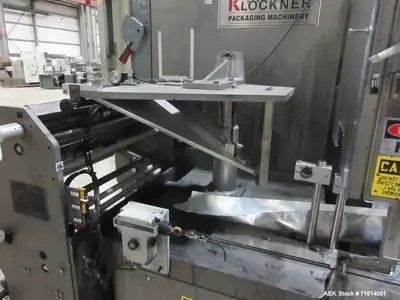

6" core power unwind

Splice table

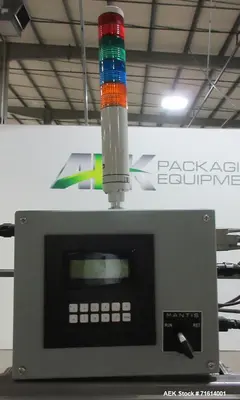

Versatec web tension control

Web tracking control & automatic web alignment

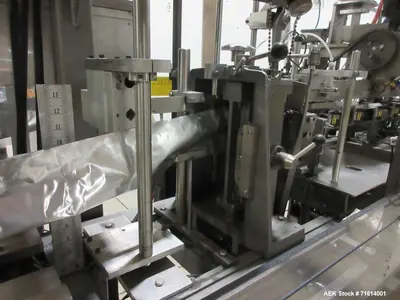

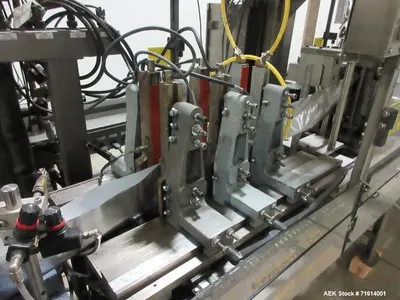

Sealing: Pre‑heat, final heat, and quench vertical seal stations

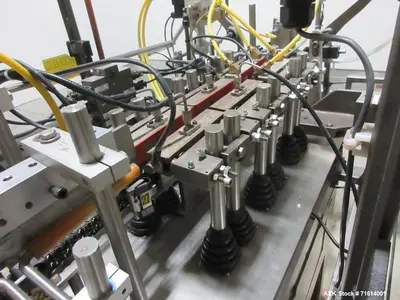

Discharge: Dual front‑and‑back alternating pick‑and‑place pouch discharge

Lubrication: Cluster Lube

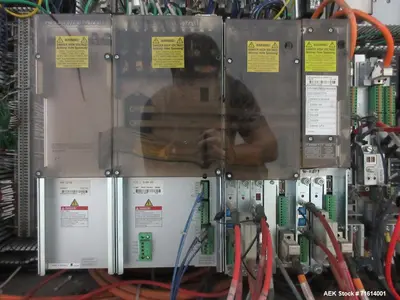

Controls: Schneider Electric PLC & EcoDrive servo drives

Utilities: 3/60/480V electrical

Applications

High‑speed pouching for pharma, medical device, and nutraceutical lines

Dry goods, desiccants, components, and small device kitting into flat pouches

Lab/IVD kits, trials, and contract packaging where quick changeovers are needed

Multi‑component or sequential fill operations (e.g., device + desiccant)

What Products Would This Be Used For (Bulleted)

Desiccant sachets & humidity control pouches

Single‑use medical device components (e.g., swabs, lancets, test cassettes)

Diagnostics/IVD items with desiccant inclusion

Nutraceutical sample pouches & tablets/capsules in pouches

Dry powders, granules, and pellets

Hardware/small parts kits

Wipes or sterile barrier flat packs (where compatible)

Cosmetic samples & sachets

Specialty chemical additives

Food & beverage dry mix samples (where suitable)
