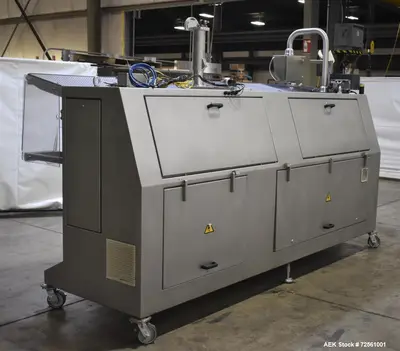

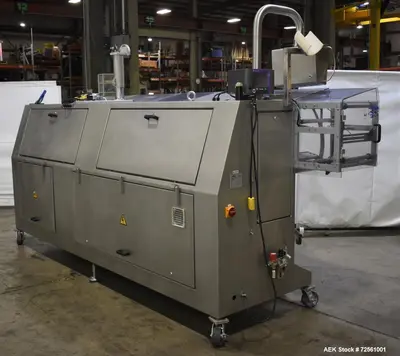

USED EFFYTEC HB-152

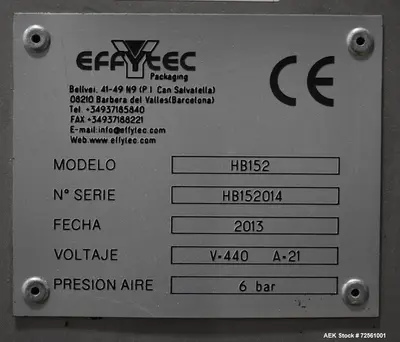

Manufacturer Information:

Brand: Effytec

Model: HB-152 Simplex

Description:

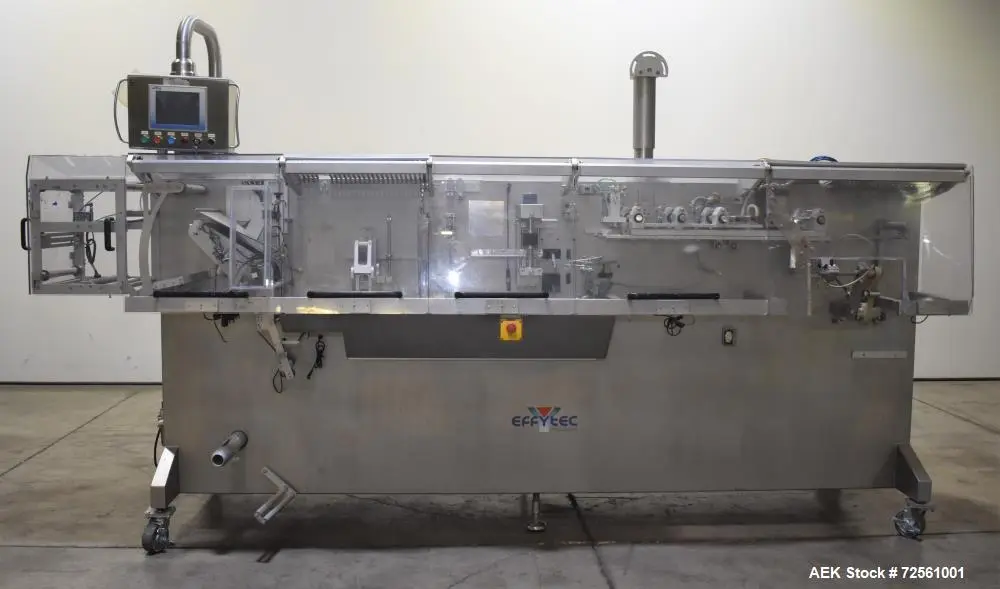

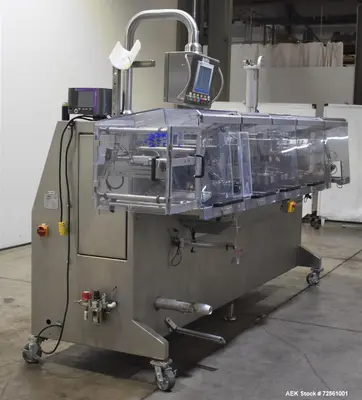

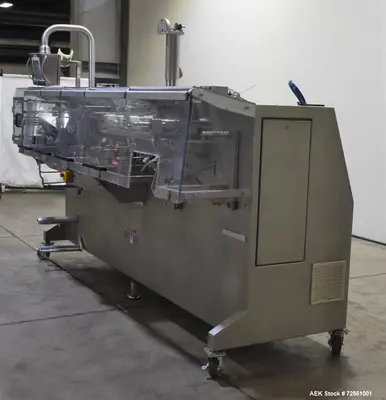

The Effytec Model HB-152 Simplex Horizontal Pouch Machine is a high-performance packaging system designed for flexible pouch applications. Capable of speeds up to 100 cycles per minute, it accommodates a pouch size range of 60 mm - 150 mm (2.36" - 5.9") in width and 60 mm - 175 mm (2.36" - 6.89") in height. This unit supports a maximum fill volume of 350 cc and can handle film rolls up to 450 mm (17.72") in diameter on a 70-75 mm (2.75"-2.95") core. Equipped with film print registration, a tear notch, vacuum pump, and an Effytec servo auger filler with a level sensor, this machine ensures precision and efficiency. It features three Yasakawa ServoPak 200V drives and three Yasakawa V1000 drives for smooth operation. The machine operates on 3/60/230/460V power and was last used for packaging nutritional supplements.
Specifications:

Machine Type: Horizontal Pouch Machine

Speed: Up to 100 cycles per minute

Pouch Size Range:

Width: 60 mm - 150 mm (2.36" - 5.9")

Height: 60 mm - 175 mm (2.36" - 6.89")

Max Fill Volume: 350 cc

Max Film Diameter: 450 mm (17.72")

Film Core Diameter: 70-75 mm (2.75"-2.95")

Features:

Film print registration
Tear notch
Vacuum pump

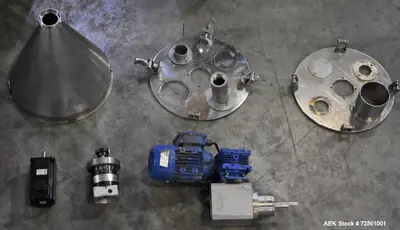

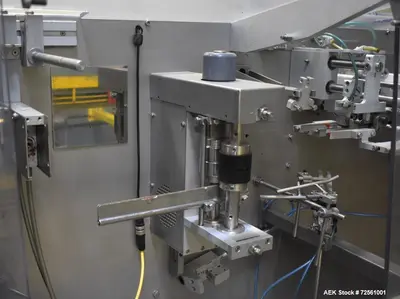

Effytec servo auger filler with level sensor

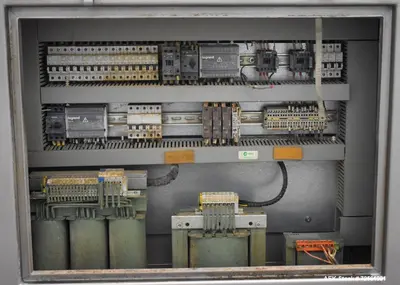

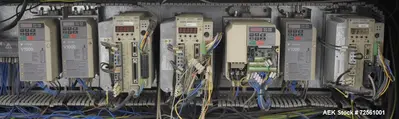

Drives:

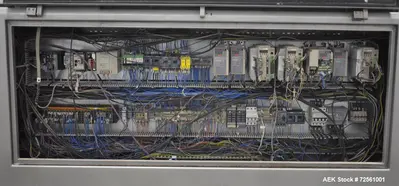

(3) Yasakawa ServoPak 200V drives
(3) Yasakawa V1000 drives

Power Requirements: 3/60/230/460V

Previous Application: Nutritional supplement packaging

Applications:

Food and beverage pouch packaging
Nutritional supplement and protein powder packaging
Pharmaceutical and medical pouch filling
Cosmetic and personal care pouch packaging
Industrial and chemical product packaging

What Products Would This Be Used For?

Protein powders and supplements
Liquid and dry food products
Pharmaceutical powders and granules
Cosmetic creams, gels, and lotions
Industrial and chemical pouch-packed products
