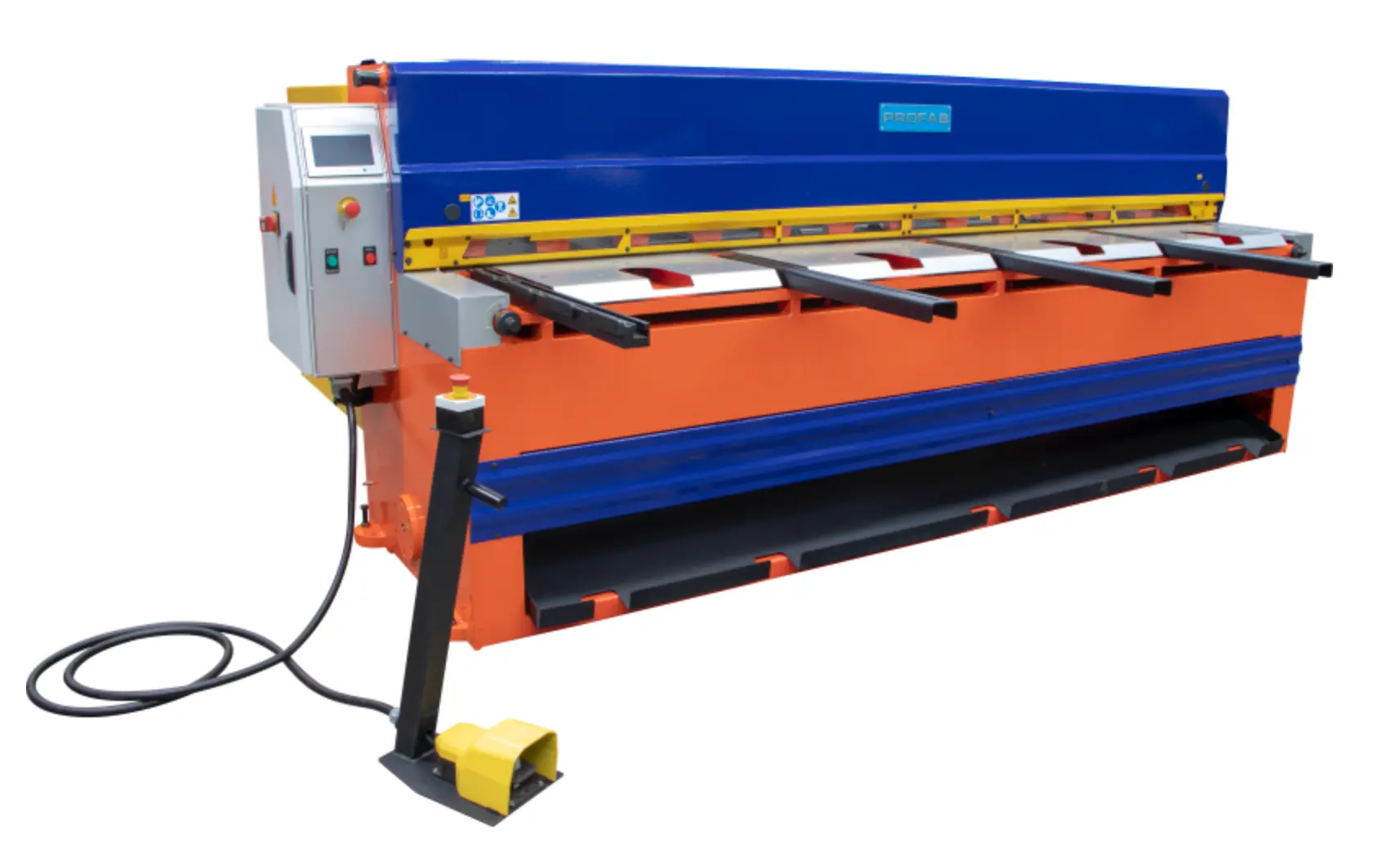

NEW PROFAB Shear Pro 1010M

California, United States
762Listings|93Followers
Overview
Power Squaring Shears (Gauge)

Introducing the versatile PROFAB Shear Pro sheet metal shear featuring both front and rear material return!

Specs
Max Gauge
10 gauge
10 gauge
Length of Blade
120"
3,048 mm
Hyd/Mech
Mech
Mech
Back Gauge
30"
762 mm
Power
15 hp
11.2 kW
SPM
35 strokes/min.
35 strokes/min.
Dimensions
142”W x 88.5”D x 55”H
142”W x 88.5”D x 55”H
Weight
8,819 lbs
8,819 lbs

Brand: PROFAB
Model: Shear Pro 1010M
Capacity: 10’ x 10 GA Mild Steel, 14 GA SS

Features:

35 strokes per minute
30″ front-operated, motorized back gauge
Touch-screen NC control
Rear pneumatic sheet support system and Return to Front Feature
98″ side extension squaring arm
Two front support arms
Easy blade gap adjustment from front
Material shadow line light system
Finger guard system on front
Cut part counter
Single, inch and continuous stroke
Foot pedal control with emergency stop
Ball transfer table on bed of shear
230/460-volt, 3-phase power
15 HP Motor
Dimensions 142”W x 88.5”D x 55”H
Weight: 8,819 lbs

TERMS:

FOB FACTORY, Charlotte Hall, MD, Includes manufacturer’s 1-year warranty, Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, stock machines subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
