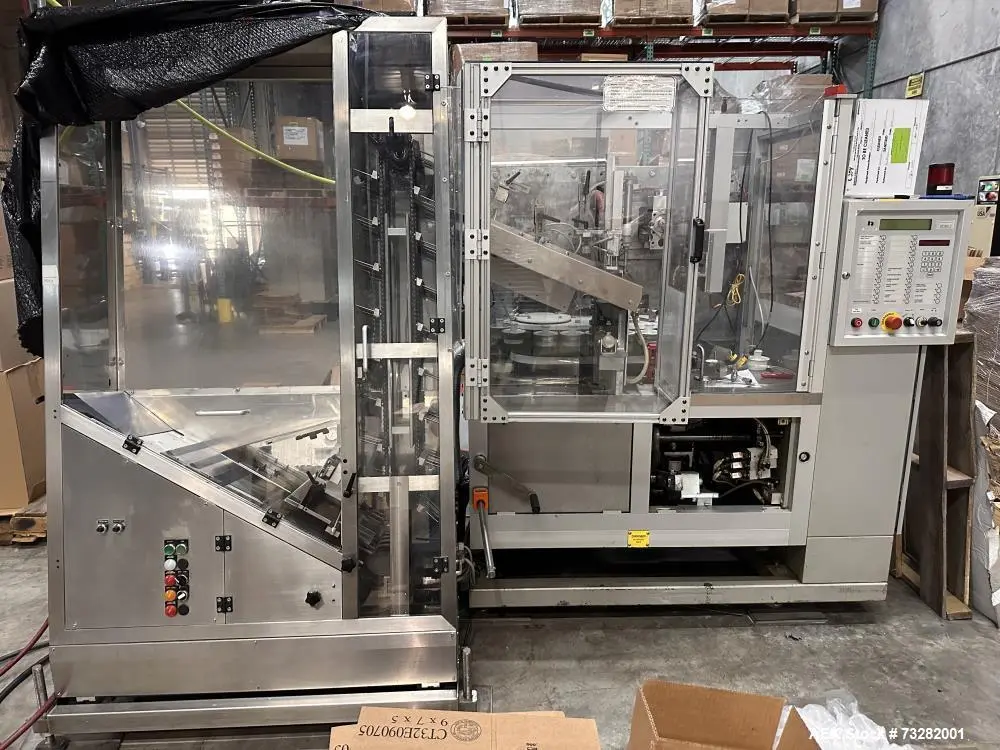

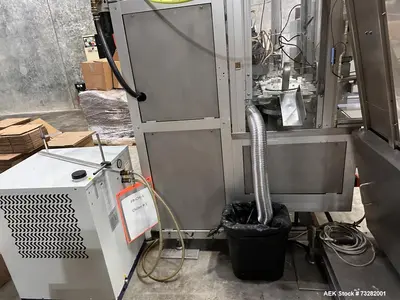

USED NORDEN NM-400HA

🔹 Manufacturer Info

Manufacturer: Norden (a Coesia Company)

Model: NM-400HA

Machine Type: Plastic Hot Air Tube Filler / Metal Tube Sealer

CE Certified: Yes

Air Requirements: 100 PSI

Electrical: 3 Phase, 60 Hz, 208V

Condition: Used – With Change Parts & Automatic Tube Loader

🔹 Product Description
This used Norden NM-400HA automatic tube filler is a versatile system engineered for both plastic tube hot air sealing and metal tube sealing with a #1 fold configuration. Built for pharmaceutical, cosmetic, and personal care industries, the unit operates at speeds up to 40 tubes per minute.
The machine handles tube diameters from 10mm to 50mm (0.4" – 1.97") and heights from 50mm to 245mm (1.97" – 9.65"), with fill volumes from 1ml to 300ml (0.034 – 10.15 fl oz). It is currently equipped with a 60mm diameter piston, set up for a fill range of 25ml to 300ml.
Included is an automatic tube loader for efficient continuous production, and metal tube sealing parts for a #1 saddle fold. The system is CE certified and constructed for reliable, hygienic production.

🔹 Key Specifications

Model: NM-400HA

Manufacturer: Norden

Tube Compatibility: Plastic (Hot Air Seal) & Metal (Fold Seal)

Folding Type: #1 Fold for Metal Tubes

Sealing Type: Hot Air for Plastic Tubes

Tube Diameter Range: 10mm – 50mm (0.4" – 1.97")

Tube Height Range: 50mm – 245mm (1.97" – 9.65")

Fill Volume Range: 1ml – 300ml (0.034 – 10.15 fl oz)

Installed Piston Size: 60mm Diameter (25ml – 300ml Fill Range)

Speed: Up to 40 Tubes Per Minute

Tube Loading: Automatic Tube Loader Included

Construction: Stainless Steel

Electrical Requirements: 3/60/208V

Air Requirements: 100 PSI

Certification: CE Certified

Condition: Used – Equipped for Both Tube Types

🔹 Applications

Pharmaceutical cream and ointment packaging

Cosmetic lotion, balm, and gel filling

Food pastes or semi-viscous products

Industrial and chemical pastes

Haircare and personal care packaging

Toothpaste, gels, and dental creams

Adhesive and lubricant tube filling

CBD and wellness cream packaging

Veterinary ointments and gels

Paint or pigment-filled metal tubes

🔹 Used in Products For

Sunscreens and SPF lotions

Toothpaste and dental gel tubes

Anti-aging or skin creams

Topical pharmaceuticals

CBD salves and balms

Epoxy or glue tubes

Shampoos and conditioners

Nutritional topical creams

Veterinary medical products

Food-safe condiment pastes
