USED AXIOMATIC OPTIMA 240

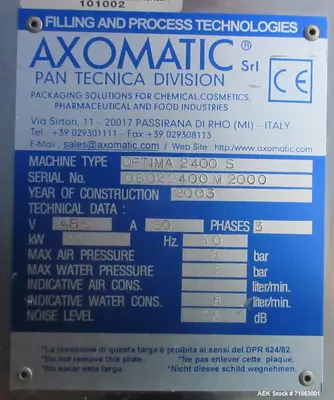

Manufacturer Information:

Brand: Axomatic

Model: Optima 2400S

Description:

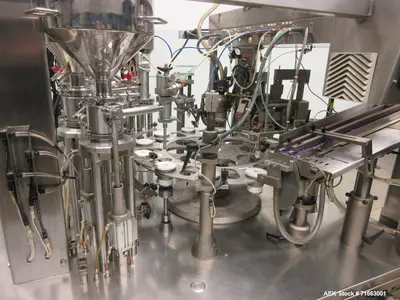

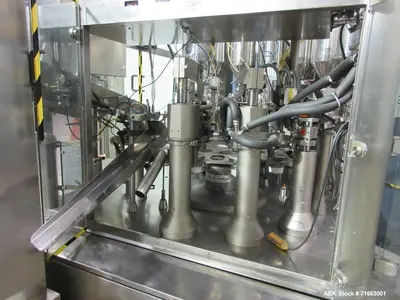

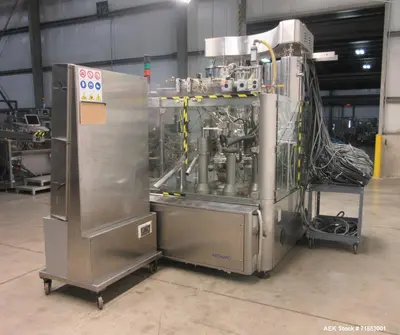

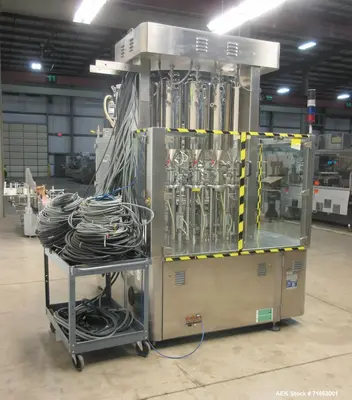

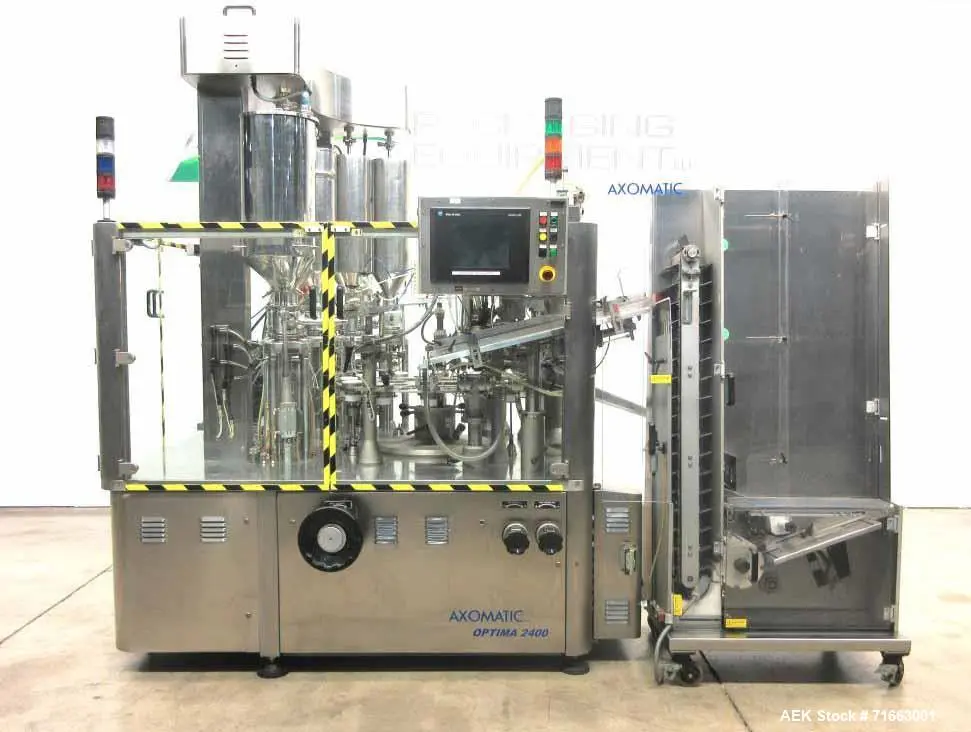

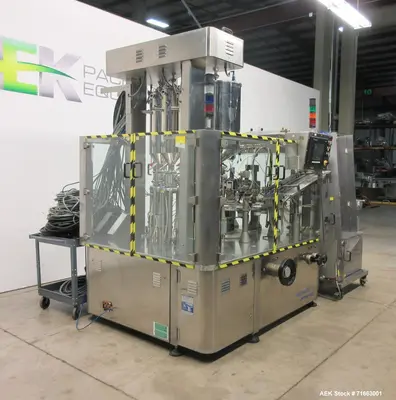

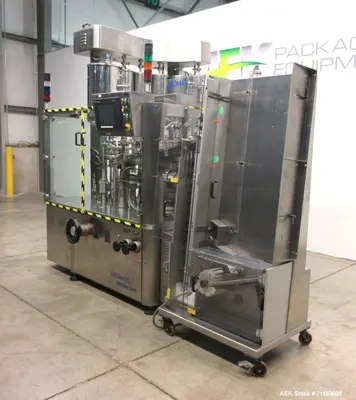

The Axomatic Model Optima 2400S Automatic Hot Air Plastic Tube Filler is a high-speed, precision tube filling and sealing machine, designed for pharmaceutical, cosmetic, and personal care applications. Capable of handling up to 200 tubes per minute, this system supports a fill size range of 3ml - 250ml and tube sizes from 10mm to 50mm in diameter and 60mm to 280mm in height (with changeparts).
Key Features:

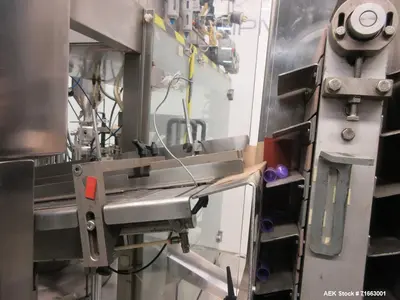

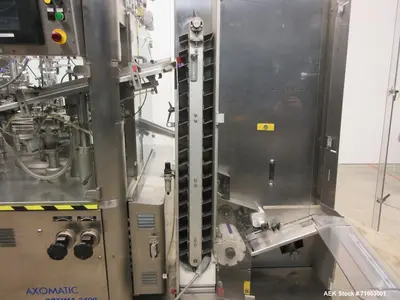

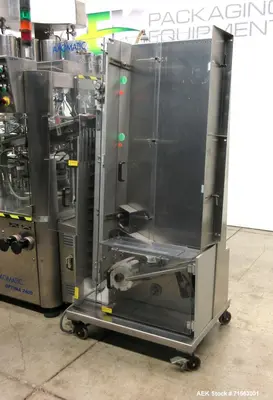

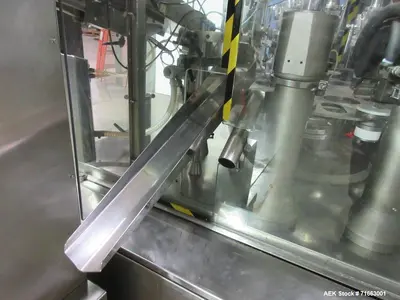

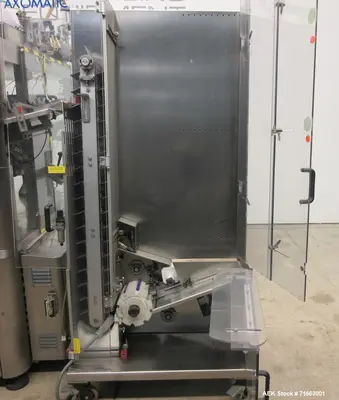

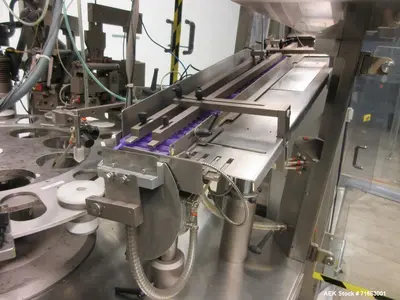

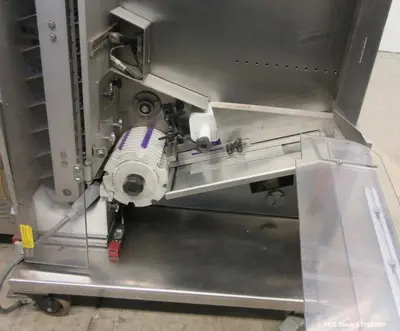

Automatic tube elevator feeder for continuous production

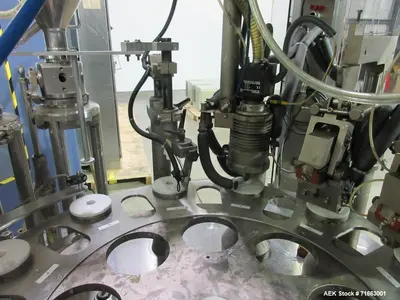

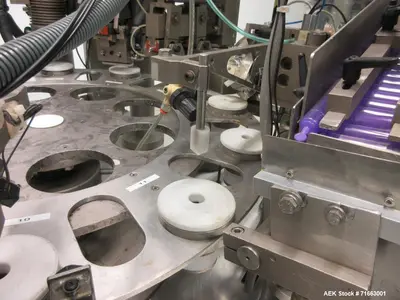

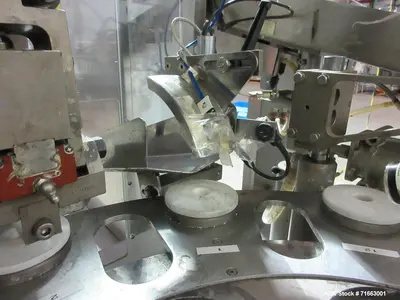

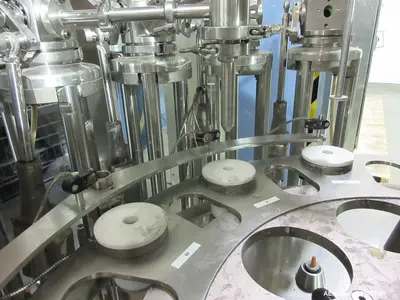

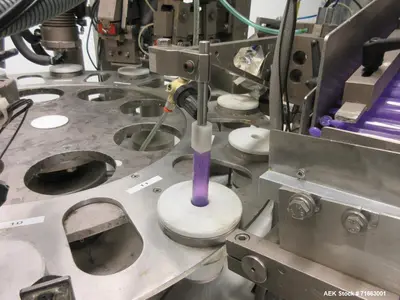

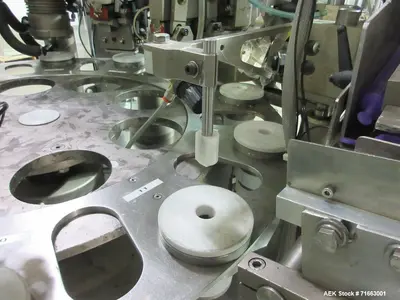

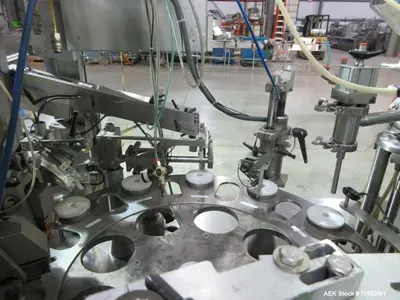

24-pocket turret for efficient handling

Tube print registration for precise label alignment

6 dosing/fill stations for flexible product filling

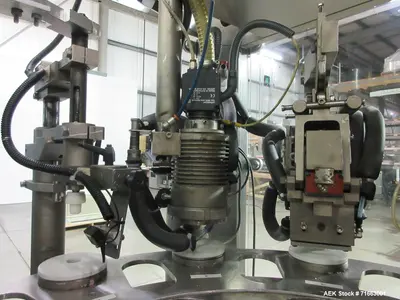

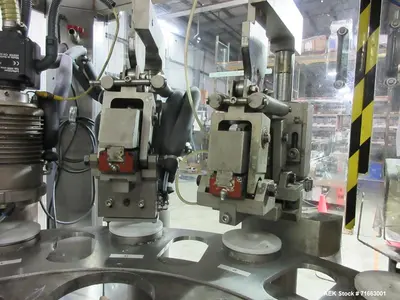

Hot air sealer and trimmer for high-quality tube finishing

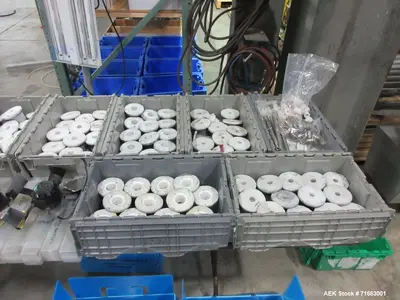

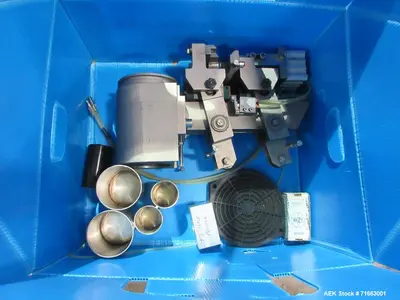

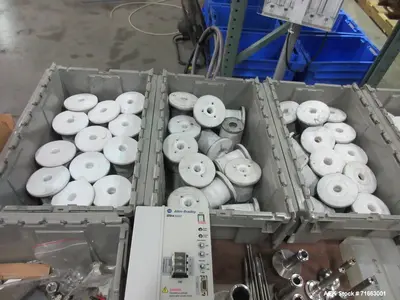

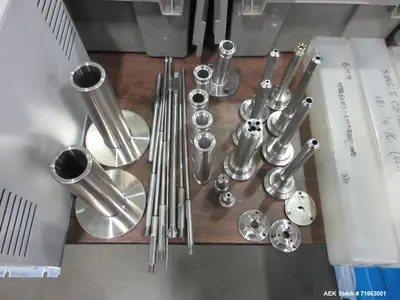

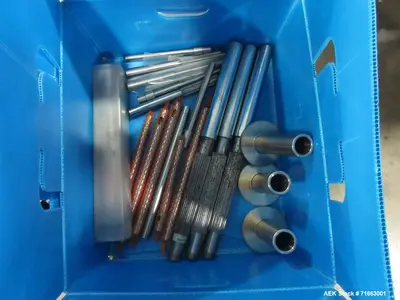

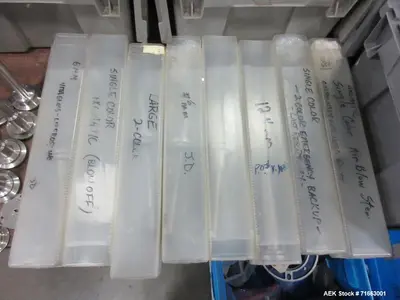

Installed tooling:

22mm diameter dosing pumps for 3-50ml fills

1 x 13.75mm nozzle

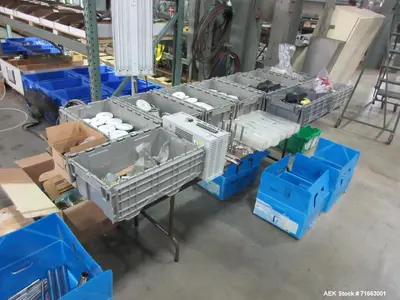

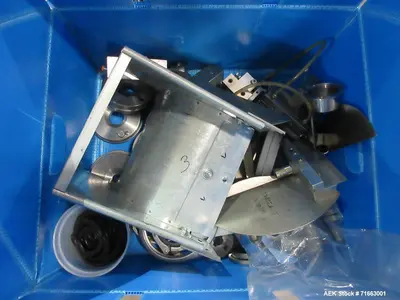

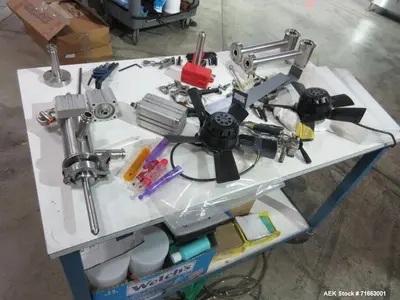

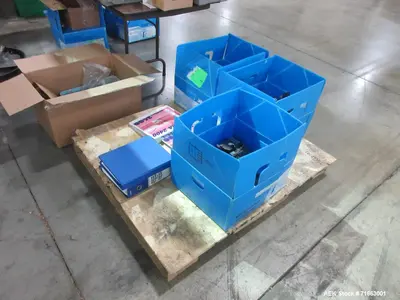

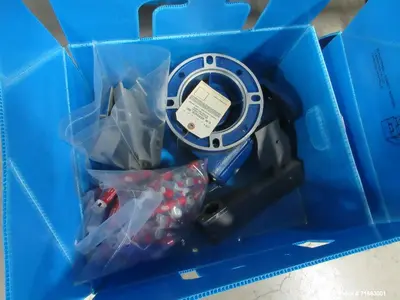

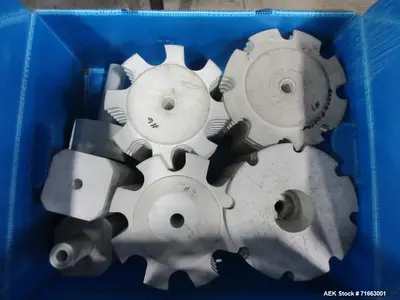

Additional tooling available upon request

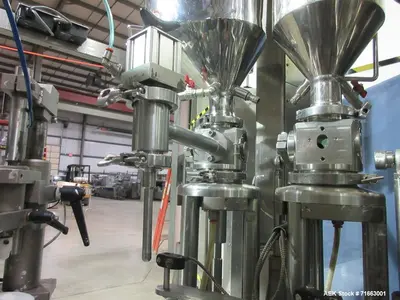

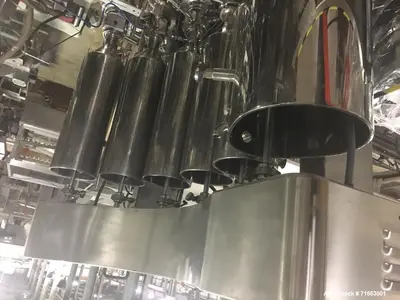

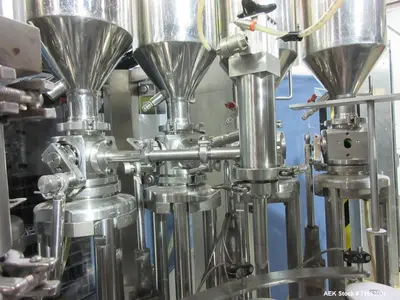

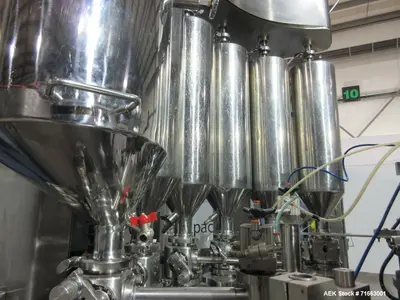

Jacketed, agitated hoppers for temperature-sensitive products

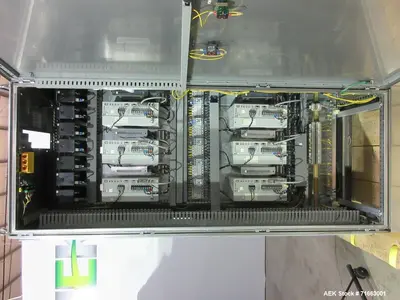

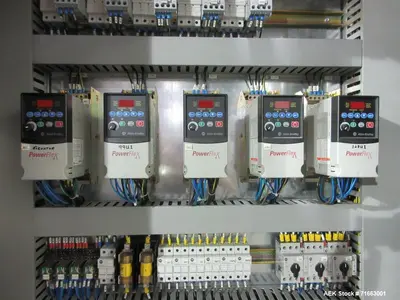

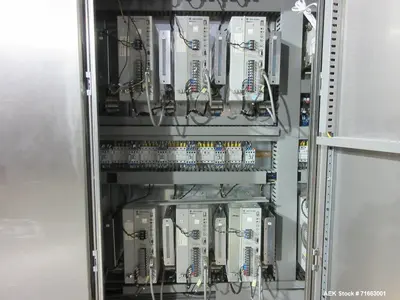

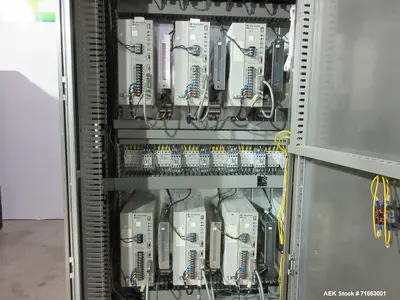

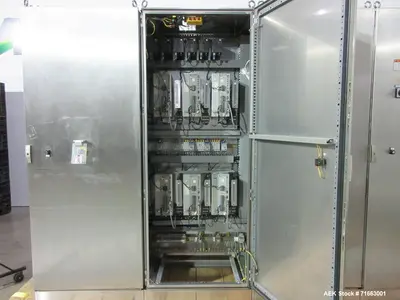

13 servos for high-precision control

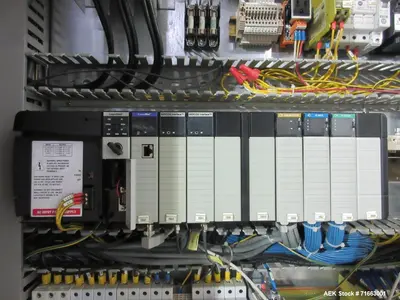

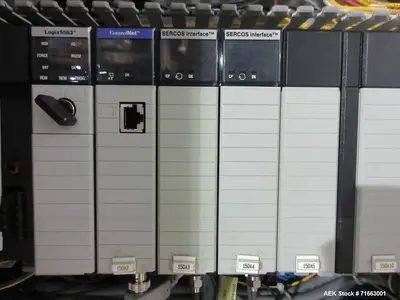

Allen Bradley ControlLogix 5563 PLC

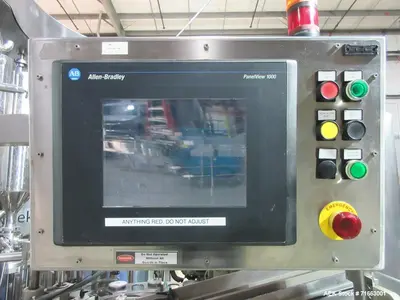

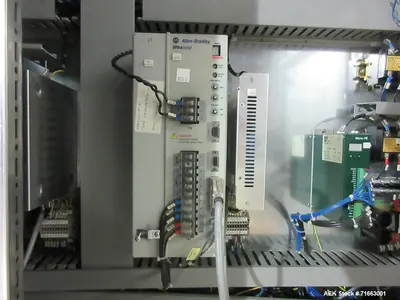

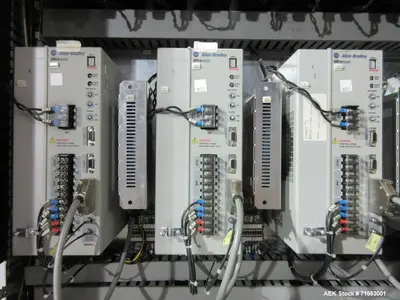

2 Ultra 3000 Servos with PanelView 1000 HMI

Power Requirements: 3/60/480V

Last Used: In the personal care industry for 20mm diameter x 120mm length, 15ml tubes

Specifications:

Machine Type: Automatic Hot Air Tube Filler

Speed: Up to 200 tubes per minute

Fill Size Range: 3ml - 250ml (with changeparts)

Tube Size Range:

Diameter: 10mm - 50mm

Height: 60mm - 280mm

Dosing Options: Selection of 1 or multiple dosers per product fill

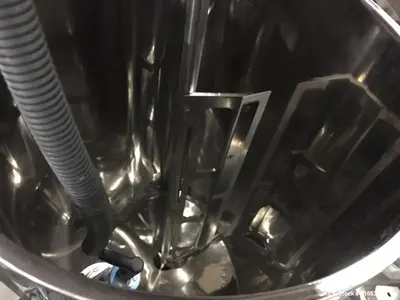

Hopper Type: Jacketed, Agitated Hoppers

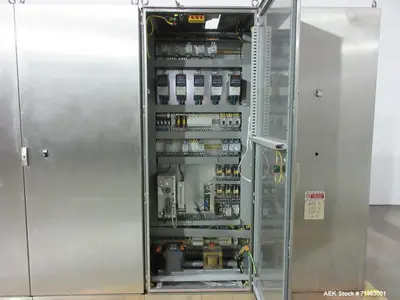

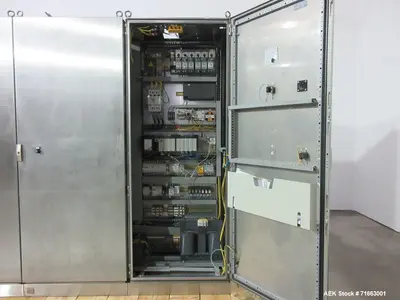

Control System:

Allen Bradley ControlLogix 5563 PLC
2 Ultra 3000 Servos
PanelView 1000 HMI

Sealing System: Hot air sealer and trimmer

Power Requirements: 3/60/480V

Applications:

Personal care product tube filling
Pharmaceutical tube packaging
Cosmetic cream and gel filling
Industrial and specialty product tubes
Food-grade tube packaging

What Products Would This Be Used For?

Facial creams and skincare products
Pharmaceutical ointments and gels
Toothpaste and oral care products
Haircare and styling products
Adhesives, lubricants, and sealants
