USED PER-FIL PF23

🔹 Manufacturer Info

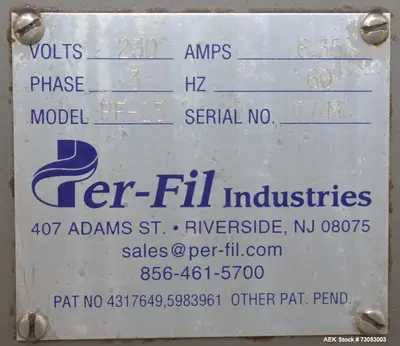

Manufacturer: Per-Fil Industries

Model: PF23

Serial Number: 7747

Control System: Mitsubishi Digital Touchscreen HMI + PLC

Country of Origin: USA

Power Requirements: 230V, 3 Phase, 60Hz, 6.35 Amp

🔹 Product Description

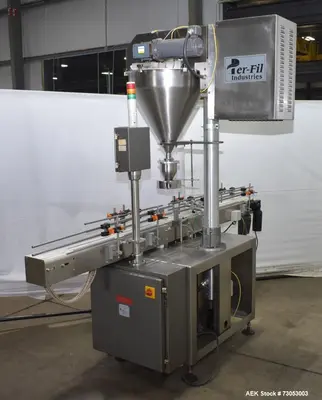

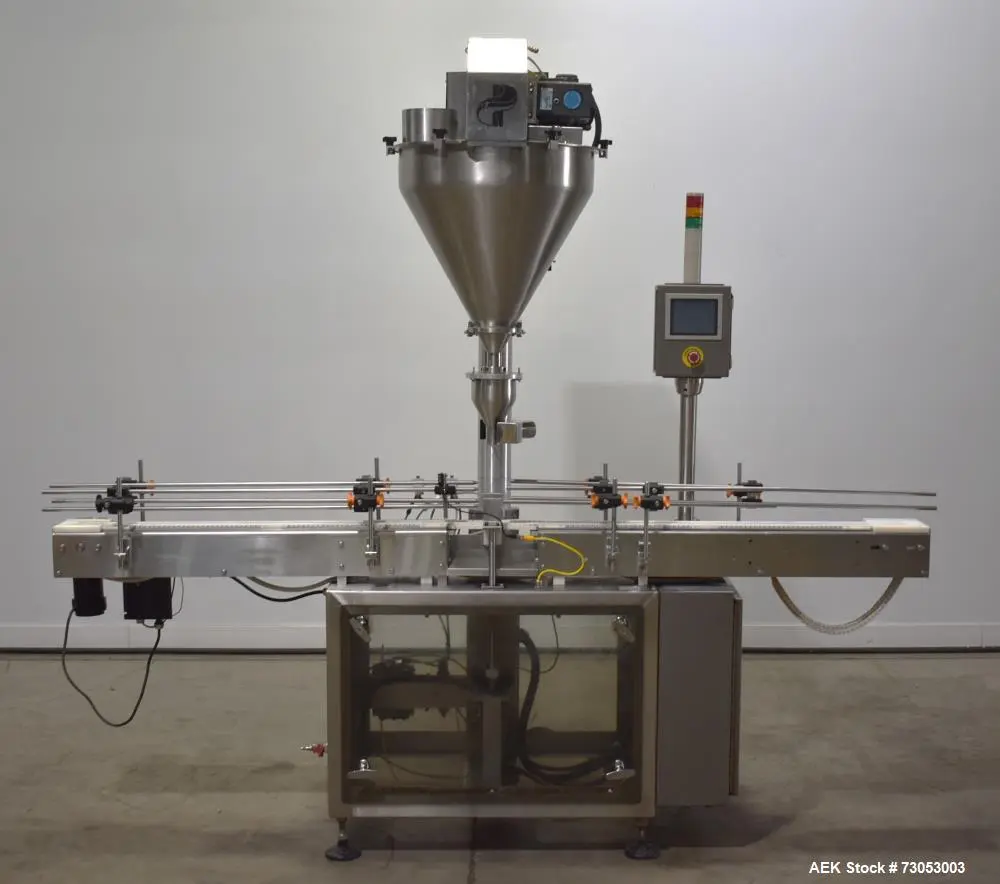

This used Per-Fil PF23 single-head auger filler is a versatile powder filling system capable of handling a wide fill range from 0.5 grams to 10 kilograms. Designed with a right-to-left product flow configuration, it is ideal for packaging powders and granular products in industries like food, chemical, nutraceuticals, and more.

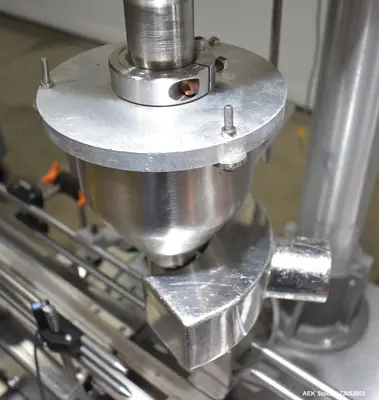

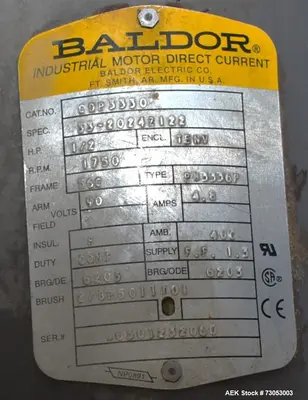

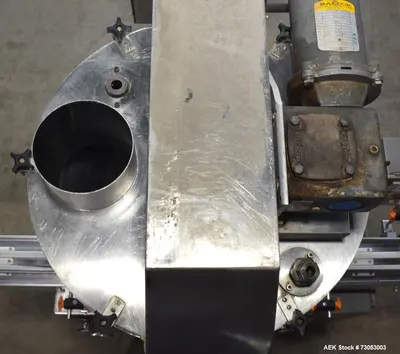

The unit includes a 20" diameter x 22" deep stainless steel hopper with scrape agitator and auger powered by a 1/4 HP motor. Product dosing is delivered through a 1 3/4" diameter stainless fill nozzle. The hopper features dual 6” diameter top inlet ports with stainless covers for material loading.

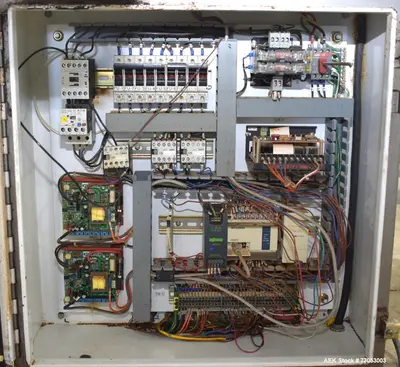

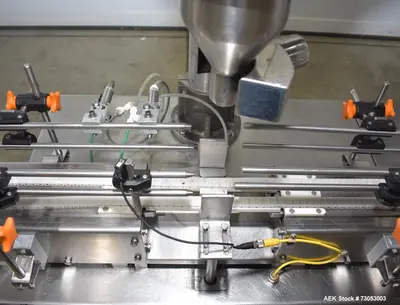

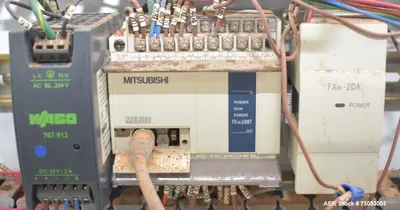

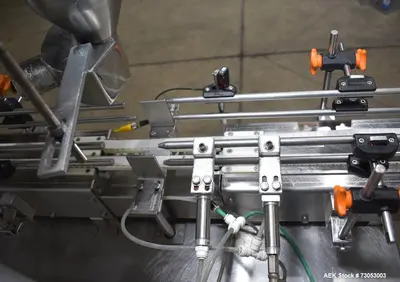

A 92" long conveyor with dual 3/4" wide plastic chain belts, adjustable guide rails, and a 2.5" total belt width provides precise indexing. The system features a Mitsubishi digital touch HMI and PLC, mounted on a stainless steel base with Plexiglas guarding, and houses electrical components in a carbon steel cabinet.

🔹 Key Specifications

Model: Per-Fil PF23

Fill Range: 0.5g – 10kg

Speed: 10–40 Containers Per Minute (CPM)

Flow Direction: Right to Left

Hopper Dimensions: 20" Dia. x 22" Deep, Stainless Steel

Hopper Features: Scrape Agitator, Auger, 1/4 HP Motor

Fill Nozzle: 1 3/4" Diameter

Hopper Covers: Two, each with 6" Diameter Inlet

Conveyor Length: 92" Long

Conveyor Width: 2.5" Total (with dual 3/4" W plastic belts)

Guide Rails: Adjustable

Control System: Mitsubishi Touchscreen HMI + PLC

Frame: Stainless Steel with Plexiglas Covers

Electrical Cabinet: Carbon Steel

Power Supply: 230V / 3 Ph / 60Hz / 6.35 Amps

Serial Number: 7747

🔹 Applications

Food ingredient packaging

Nutraceutical and supplement powder dosing

Chemical powder dispensing

Coffee, flour, or spice filling

Cosmetic powders and pigments

Agricultural products (fertilizers, feed additives)

Plastic resins and powdered polymers

Bakery mix packaging

Small to bulk powder fills

R&D and short-run production packaging

🔹 Used in Products For

Protein powder tubs

Coffee and espresso grounds

Spices and seasonings

Nutritional blends

Pharmaceutical powders

Chemical additives

Dry food mixes

Cosmetic powder jars

Baby formula or nutritional supplements

Industrial powder packs
