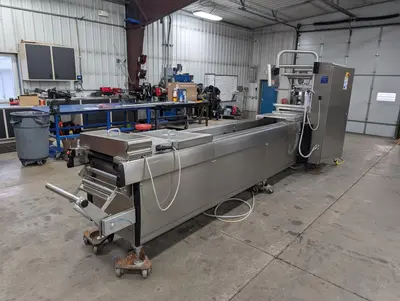

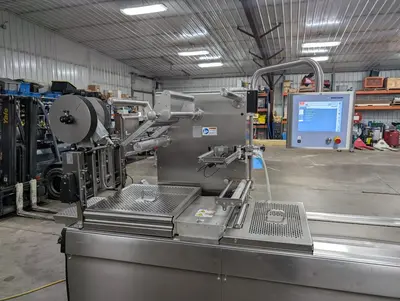

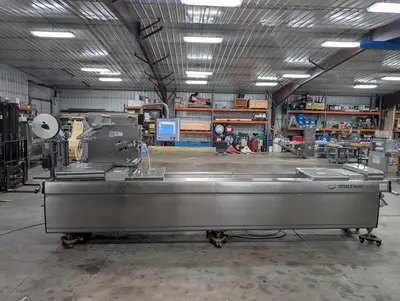

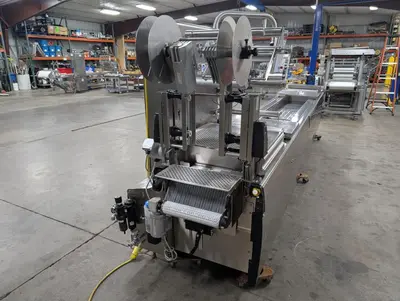

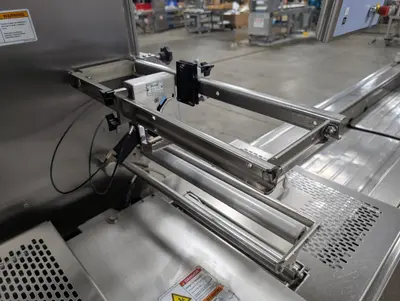

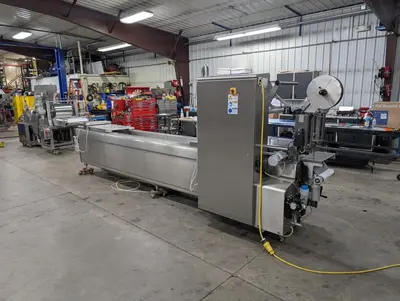

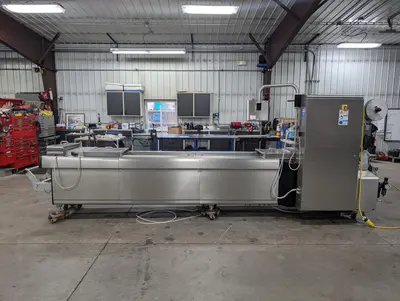

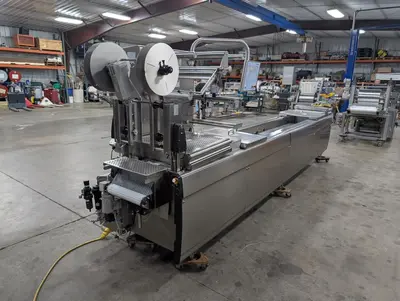

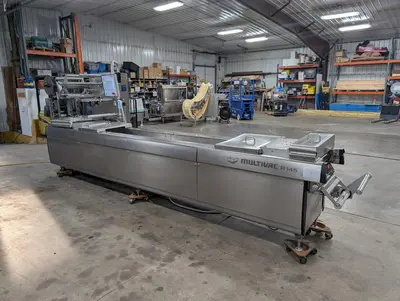

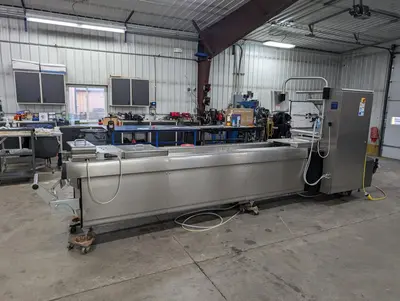

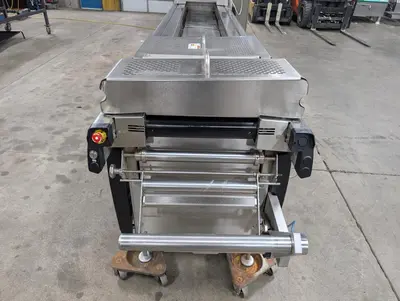

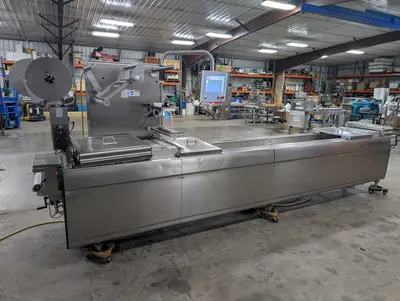

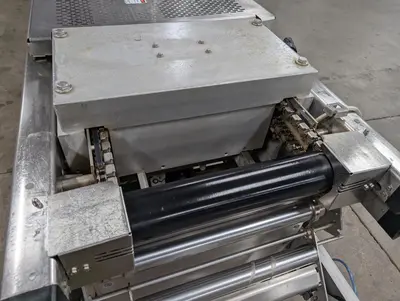

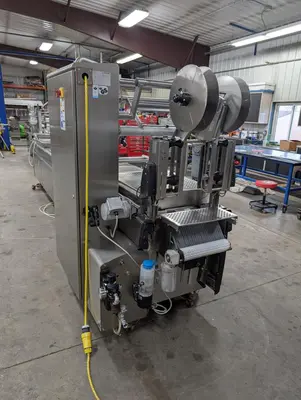

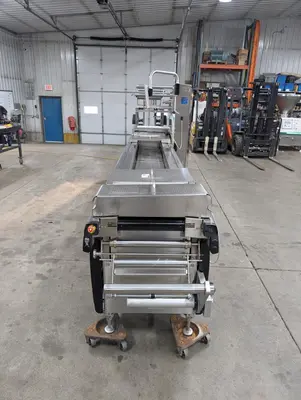

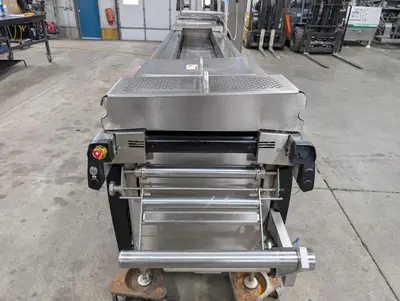

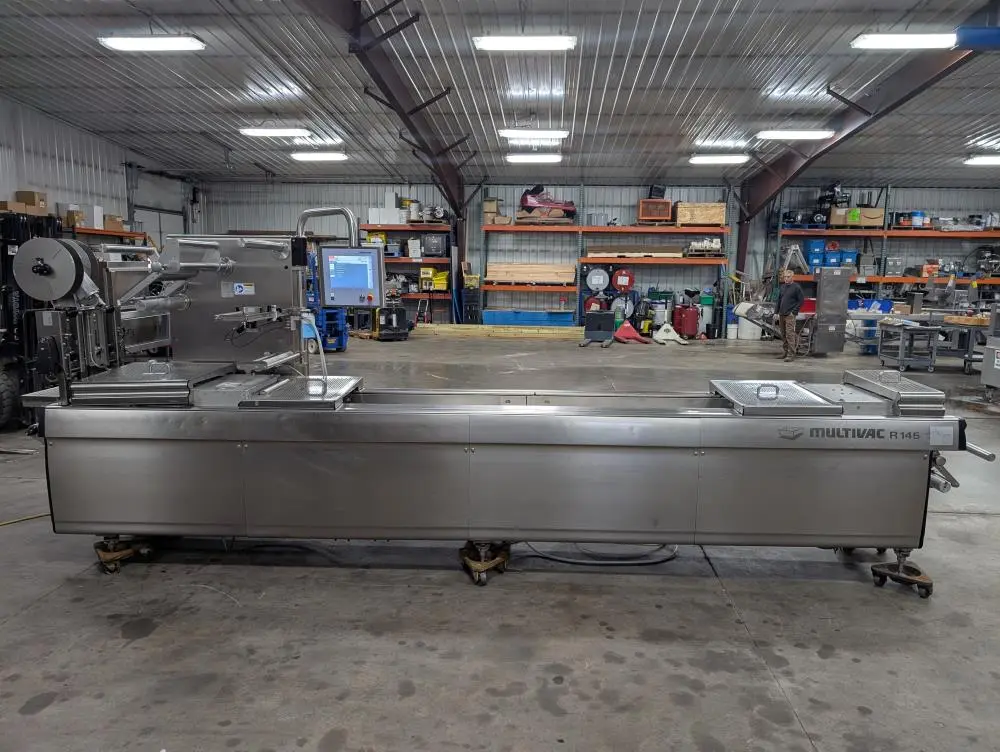

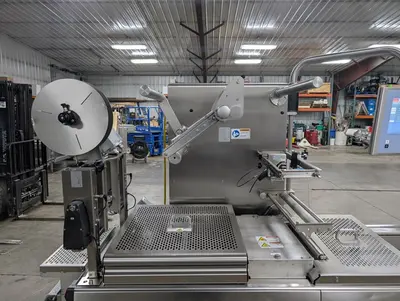

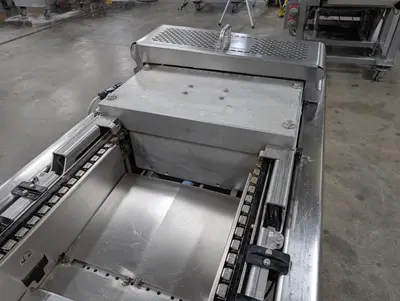

USED 2011 MULTIVAC R145

The Multivac R145 is a compact, modular thermoforming packaging machine, designed for efficient and versatile packaging applications. Its customizable modular design makes it ideal for small to medium-sized batches, while advanced vacuum and forming capabilities ensure reliable packaging performance.
Key Specifications & Features:
Machine Width & Film Handling:
Machine Nominal Width (MNW): 16.54 inches (420 mm)

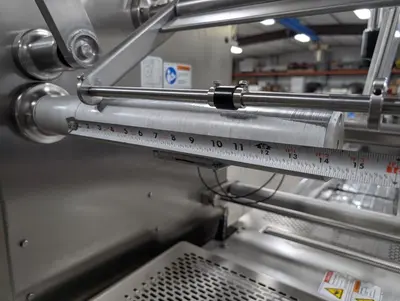

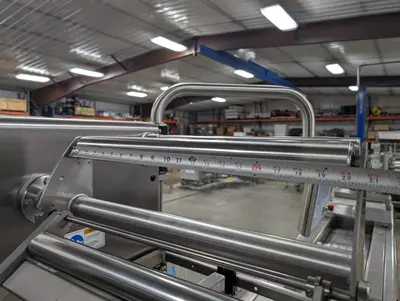

Film Width: 16.54 inches (420 mm)

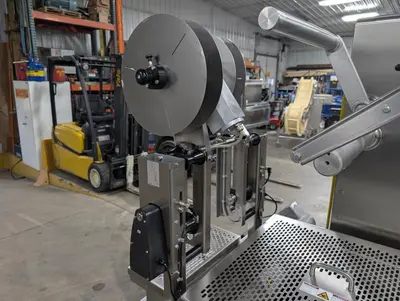

Reel Diameter: 14 inches
Forming & Cutting Capabilities:
Maximum cut-off length:
Up to 15.75 inches (400 mm) without preheating
Up to 10.63 inches (270 mm) with preheating
Maximum forming depth: Up to 4.3 inches (110 mm) (depending on machine configuration)
1-Up Square configuration
Vacuum & Air System:
Vacuum Pump: Busch RA 0100 F 503
Vmax: 120 m³/h
Vacuum trim system for efficient operation
Cooling Pressure: Min. 1.5 bar / Max. 4.5 bar
Air Pressure: Min. 7 bar / Max. 10 bar
Controls & Power Requirements:
Most recent controls installed
Electrical Requirements: 220V, 3 Phase, 60 Hz, 58 Amp, 9 kW
Usage & Dimensions:
Production Hours: 4592 hours
Overall Dimensions: 220 inches long x 45 inches wide x 82 inches tall
This Multivac R145 Thermoforming Packaging Machine is a versatile and efficient solution for industrial packaging, offering customizable configurations, precise forming depth, and advanced vacuum capabilities for food and product packaging applications.

Material of Construction : Stainless Steel
Manual : Included
Overall Dimensions : 220 in. long x 45 in. wide x 82 in. tall
Approximate Weight : Approx. 3500 lbs.
