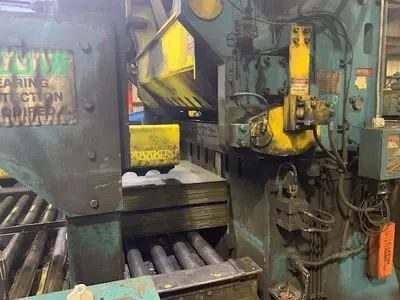

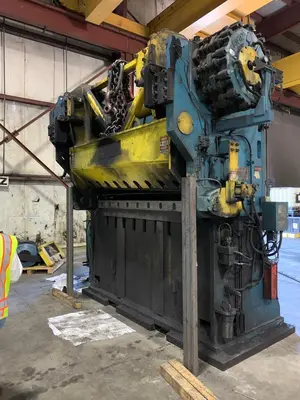

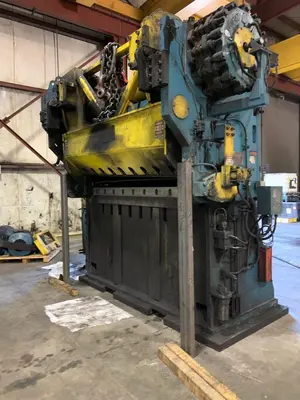

USED 2000 BUTECH MS-625-78

Width: 76 inches
Thickness: .625 inches
Hyd/Mech: mechanical
Power: 100 horsepower

Year: 2000

Model: MS-625-78

Material to Cut: HR, HRP&O, Steel

Thickness: .625” Max., .060” Min.

Strip Width: 76” Max, 24” Min.

Shear Strength: 80,000 PSI Max. Up To .500” ; 50,000 PSI Max. Over .500”

Line Direction: Right to Left

Shear Style: Mechanical Downcut (Single Rake)

Drive: 100 Horsepower. AC

Knife Length: 86”

Knife Opening: 4.00”

Knife Rake Angle: .500”/Foot

Stroke Rate: 100 Strokes/Min.

Cut Rate: 40 Cuts/Minute Min.

Scrap Tail Length: 24”-30” Min.

Auto Gap Control

Driven Entry Kickout Rolls

Flywheel & Air Clutch

Tail Pusher

SOLA Suppressor STV 25K Series

SOLA Power Supply SDN 10-24-100
