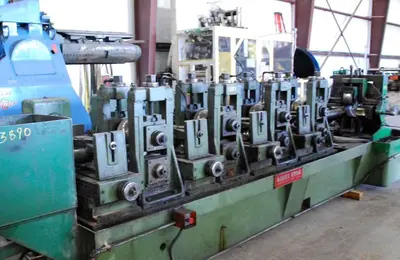

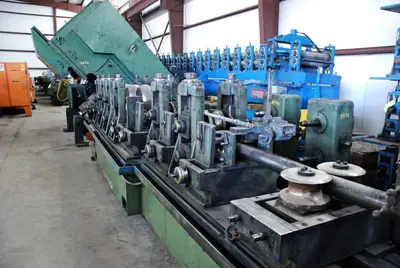

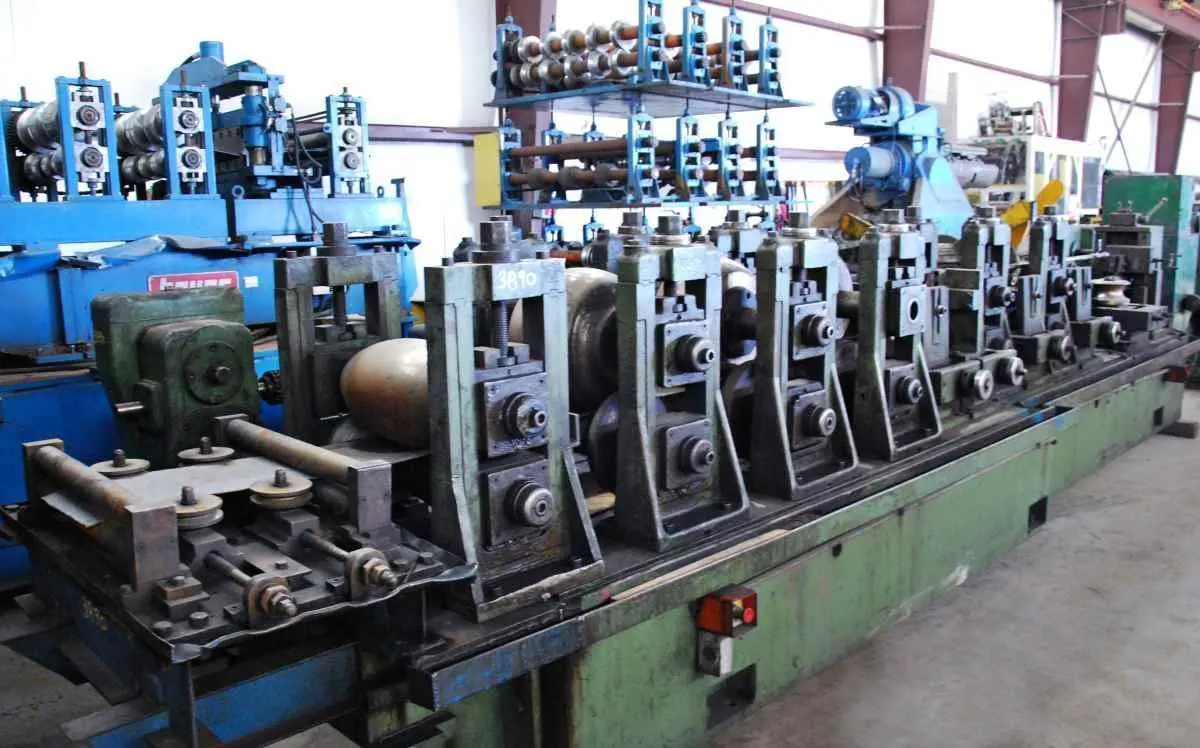

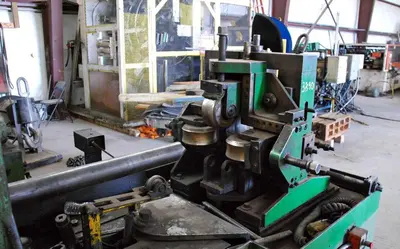

USED ABBEY ETNA 6 SXU

Tube Diameter: 6 inches
Max. Wall Thickness: .120 inches

Manufacturer: Abbey Etna Machine Co.

Model Number: 6SXU

Specifications

Tube Diameter Range: 1.9” (48.2mm) – 6” (152mm)

Wall Thickness Range: .042” (1.1mm) - .120” (3mm)

Forming Roll Space Width: 21” (533mm)

Fin & Sizing Roll Space Width: 8” (203mm)

Driven Spindle Diameter: 2-1/2” (63.5mm)

Gear Box Data: Abbey 4K, 15:1 Ratio

Direction of Operation: Left to Right

Forming Mill

Entry Guide

(4) Driven Breakdown Stands

(4) Idle Side Roll Units

(2) Driven Fin Stands

Welding Section

(1) 2 Roll Weld Pressure Unit for HF Welding

(1) Scarfing and Seam Ironer Unit

Sizing Mill

(4) Driven Sizing Stands

(4) Idle Side Roll Units

(1) Straightener Unit (Modified Turkshead)

Various Tooling Sizes
