USED RUESCH 146

Width: 26 inches
Thickness: .105 inches
Coil Weight: 20000 pounds
Arbor Size: 4.125 inches

Thickness Range:  .010" - .105"

Minimum Cut Width:  .324"
Arbor Diameter:  4 1/8"
Coil Entry ID:  16"
Coil Exit ID:  16"
Complete Line With

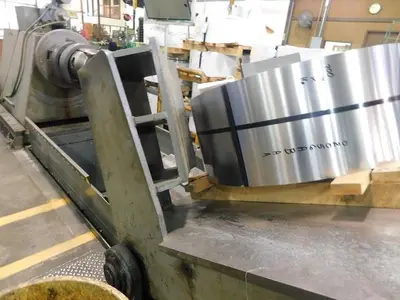

Coil Tipper
Traversing Coil Car / Coil Lift
Mandrel Uncoiler
28" Mandrel Face
4 Leaf Mandrel
Sliding Base
Feed Up Drive
Hydraulic Expansion

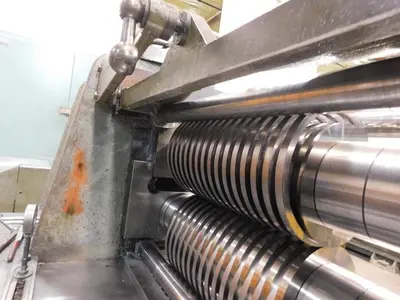

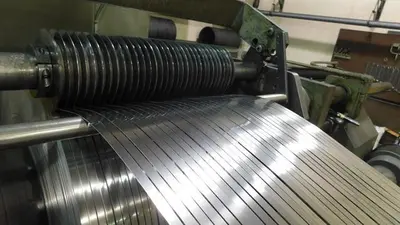

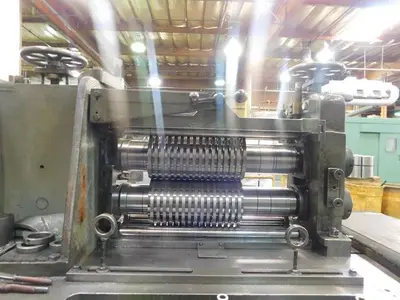

Ruesch Slitter Head
Ring Slitter Design
Top & Bottom Back Ups
4 1/8" Diameter Arbors
25 HP DC Drive
Entry Pass Line Roll
Entry Edge Guides
2 Scrap Winders with Oscillating Wind
Feed Table

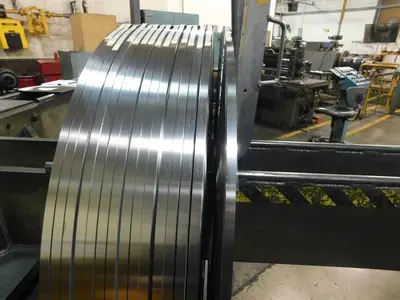

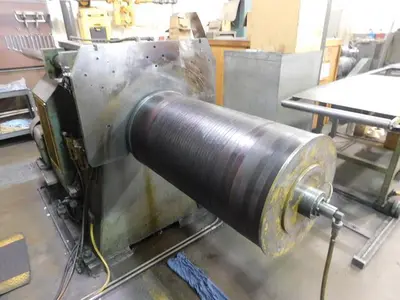

Ruesch Recoiler with Slip Core Drum (Serial No. N3047E)
16" Diameter Drum
33" Drum Face
40 HP DC Drive
Hydraulic Push-Off
Spare Recoiler Drum

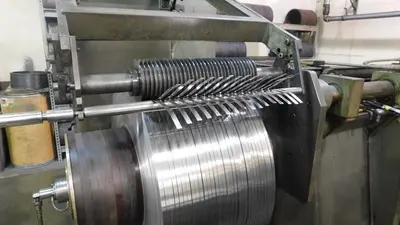

Floor Standing Overarm Separator
4 Arm Exit Turnstile
Precision Slitter Tooling
Hydraulic Units
Operator Push Button Controls
Electrical Controls & Transformers
