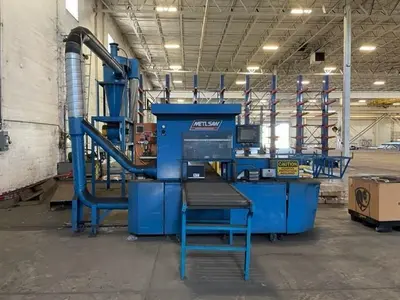

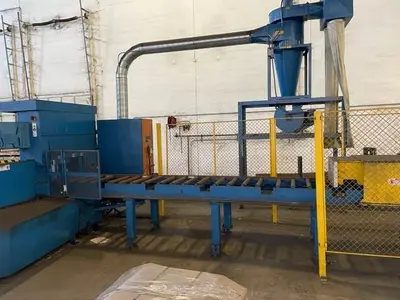

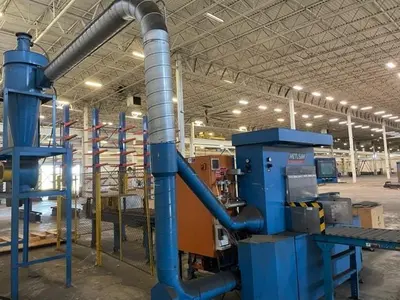

USED METLSAW CS2-T12

Cutting Window: 24" (600mm)

Cutting Height: 8" to 14" (200-355mm)

Backgauge  Length: 12' (3.6m)

Cut Length Range: 1/2"-Unlimited (12mm-Unlimited)

Position Tolerance:  ±.003 (.08mm)

Vertical Squareness:  ±.0005" /in thick (.01mm/mm thick)

Horizontal Squareness:  ±.002 /ft (.05mm/mm)

Feed Rates

Motor: 30 HP (22KW)

Carriage Cutting Speed: To 500" /min (12,700mm/min)

Backgauge Increment Speed: To 500"/min (12,700mm/min)

Backgauge Reverse Speed: To 800" /min (20,000mm/min)

Power:  460/480 @ 80 amp

Air: 30 CFM @ 80 psi
