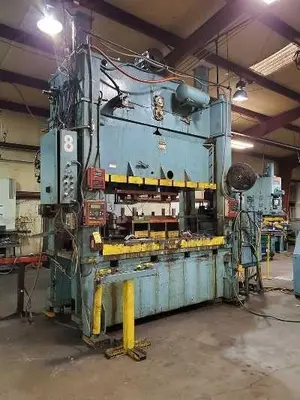

USED HEIM 300-48-102

Tonnage: 300 tons
Stroke: 12 inches
Shut Height: 25.25 inches
SPM: 18
Vari Speed (Yes/No): no
Bed W: 102 inches
Bed L: 48 inches

Model: #300-48-102

Capacity: 300 Ton

Stroke Of Slide: 12"

Power Slide Adjustment: 6"

Shut Height, SDAU: 24-1/4"

Area Of Ram T Slotted Ram: 102" X 48"

Windows: 26" Wide

Bolster: 102" X 48" X 6-1/4"

Strokes Per Minute: 18

Air Clutch & Brake: Yes

Air Counterbalance: Yes

Floor Standing: Yes

Bolster Plate: T Slotted

Palm Buttons: Dual

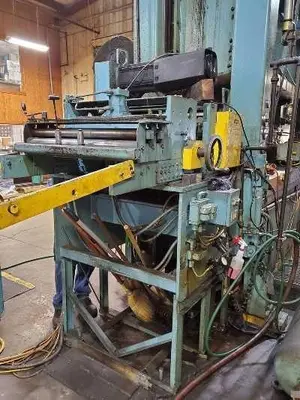

Perfecto Servo Feeder Length: 15"

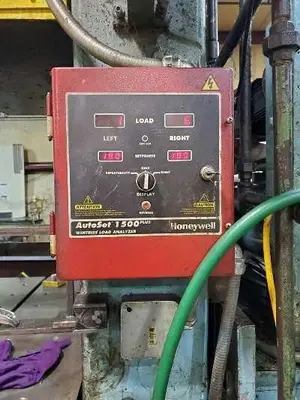

Wintress Load Analyzer: Yes

Motor: 20 Horsepower
