Tonnage: 400 tons
Stroke: 16 inches
Shut Height: 30 inches
SPM: 40
Vari Speed (Yes/No): yes
Bed W: 120 inches
Bed L: 60 inches
Bed Size: 120" x 60"

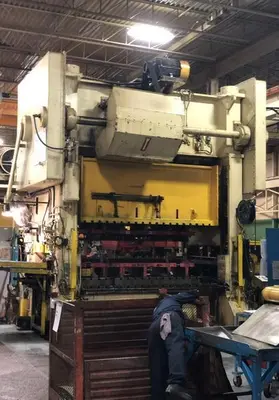

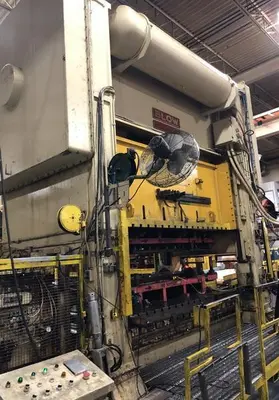

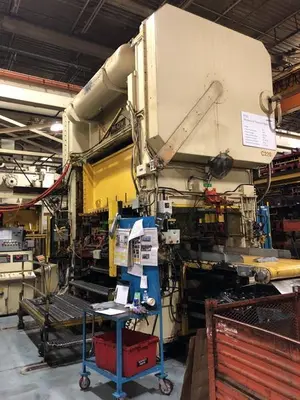

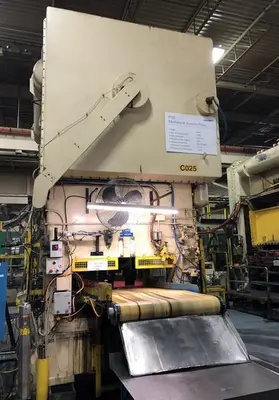

Type of Press: Straight Side
Tonnage: 400 ton
Type of Operation: Progressive
Max Shut Height: 30”
Set Die Build Height: 26.125”
Slide Adjustment: 10”
Slide Stroke: 16”
SPM: 20 - 40
Method of Scrap Removal: Shaker Trays / Conveyor
BOLSTER
Length (L to R): 120”
Width (F to B): 60”
Die Build Passline (from top of bolster): 15.125”
Top of Bolster to Floor Height (operator stand): 47” (25.5”)
Bolster Thickness: 6
RAM
Length (L to R): 120”
Width (F to B): 60”
Ram Thickness: 4.25”
Left Hand Window: 60” x 30”
Right Hand Window: 60” x 30”
T-Bolt Size: 1”
