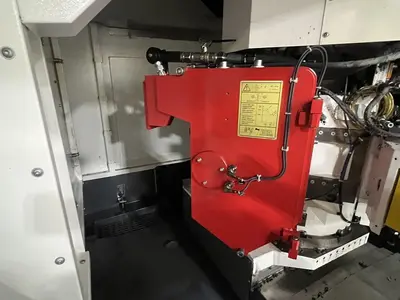

(1) OD Wheel - 4,500 rpm
(1) ID Spindle - 42,000 rpm

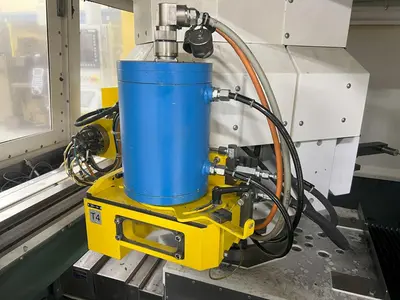

(1) Grooving Spindle for Splines
B Axis -45° to +225°
C Axis Workhead
Probing & Gauging

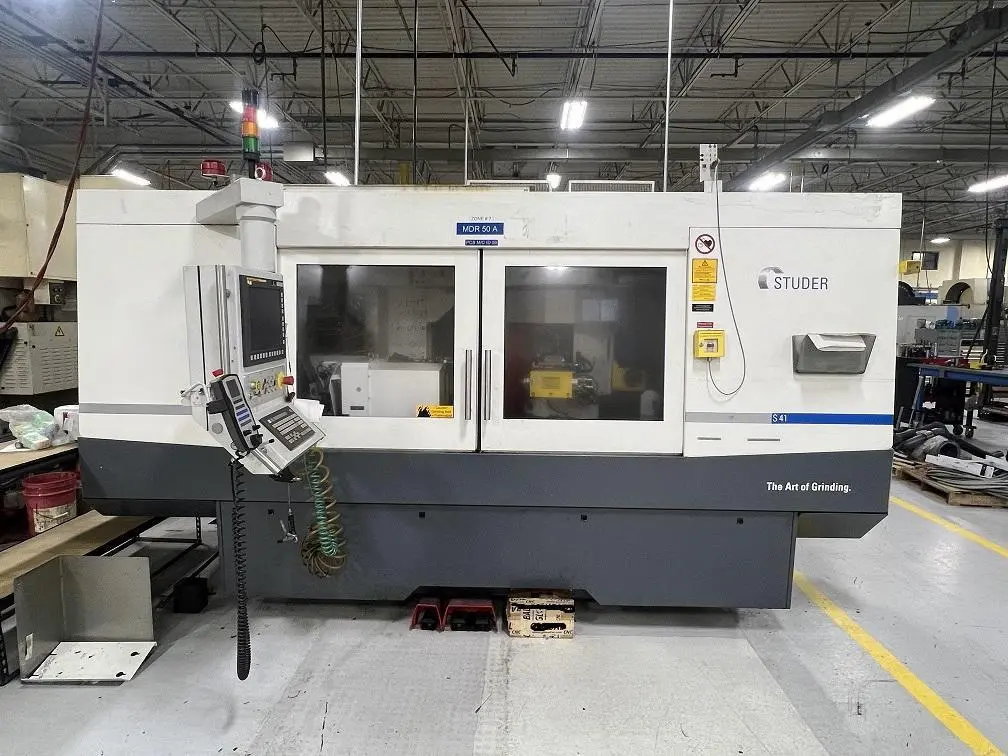

The Studer S41 is an exclusive part of our Cylindrical Grinders (Universal) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
CNC Control: yes

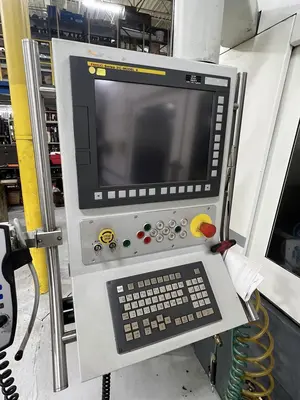

Control Type: Fanuc 31i-Model A
Center Height: 8.9"
Center Distance: 39.4"
Max Weight Between Centers: 550 pounds
X Axis Travel: 13.8"
Z Axis Travel: 45.3"
Workhead Speed: 1,500 rpm
Workhead Power: 13.6 horsepower
C Axis: yes
C Axis Index: 0.0001°
B-axis Indexing: -45° to +225°
Grinding Wheel Dimensions: 20" x 3.54" x 8"
Wheel Speed (RPM): 4,500 rpm
Wheel Head Motor: 20 hp
ID Spindle Speed: (2x) 42,000 rpm
Dimensions: 154" x _ x 99"
Weight: 20,000 pounds
- Fanuc 31i-Model A Control

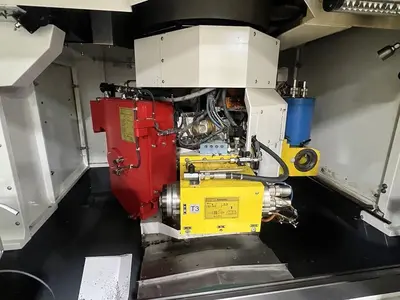

- (1) Fischer ID Spindle - 42,000 rpm T3
- (1) Grooving Spindle T4
- (1) OD Grinding Wheel 15748 sfpm T2

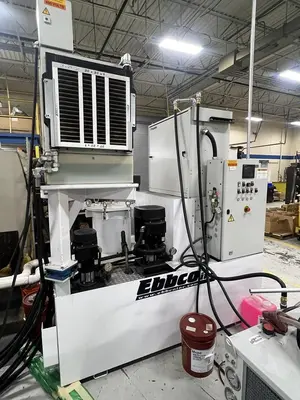

- Transor Filtration System
- Marposs Gauging
- Dittell Balancing M6000
- Workhead w/C Axis
- B Axis Wheelhead
- No Tailstock
- Probing H1 Touch Probe
- Rotary Dresser
