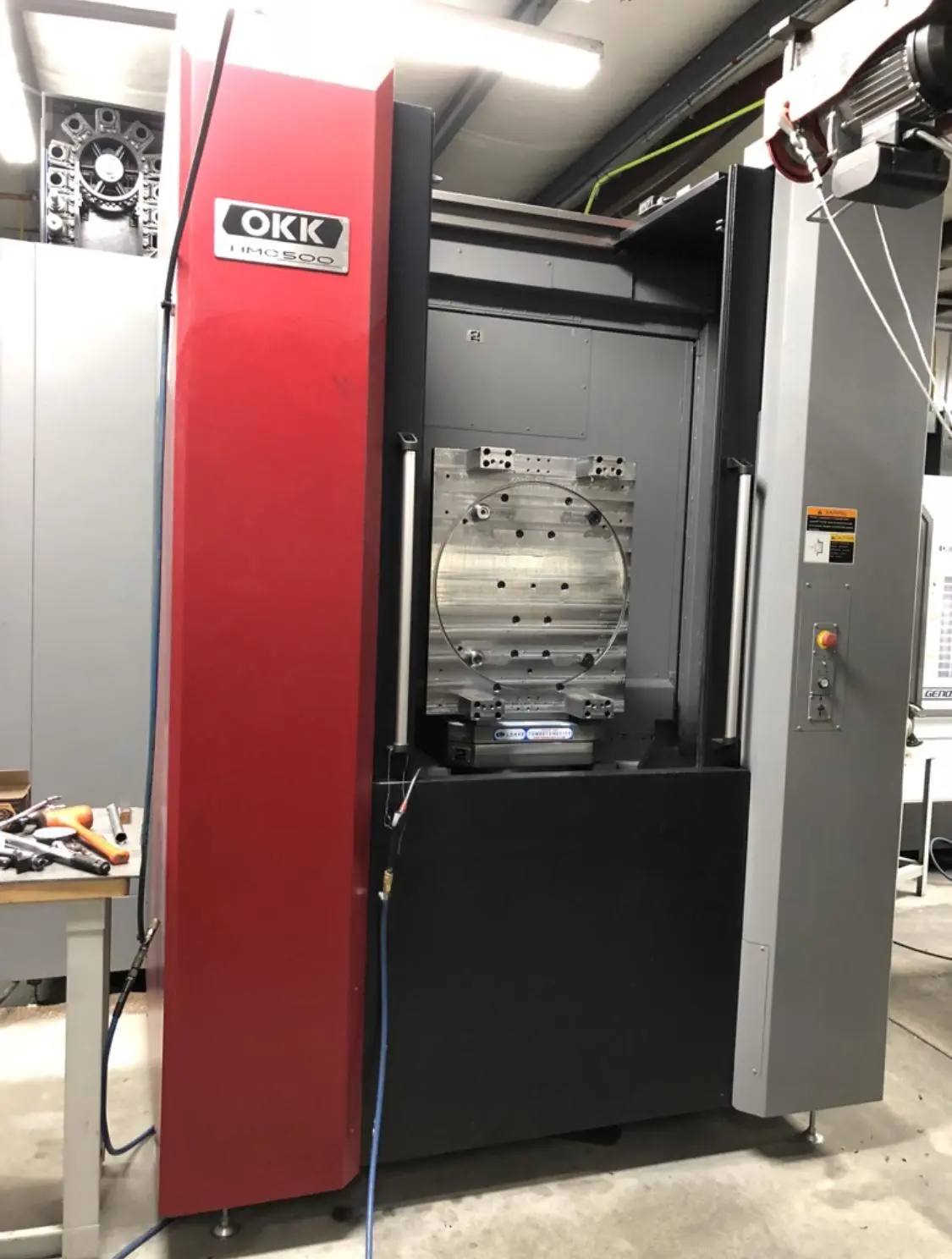

USED 2017 OKK HMC 500

- Fanuc 31i-MB Control

- High Pressure Coolant Thru Spindle

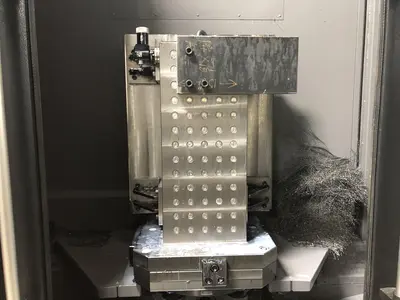

- 19.7" x 19.7" Pallet Size

- Full 4th Axis (0.001°)

- CAT 40 Big Plus | 15k RPM | 50HP
The OKK HMC 500 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

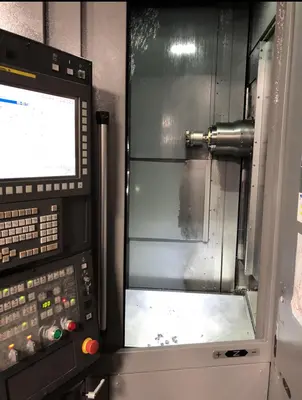

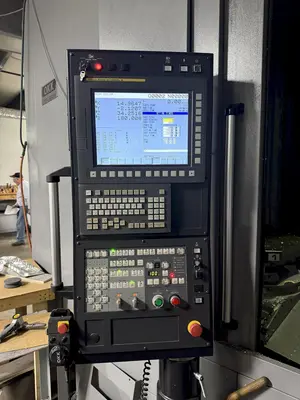

Control Type: Fanuc 31i-MB CNC Control
# Axis: 4

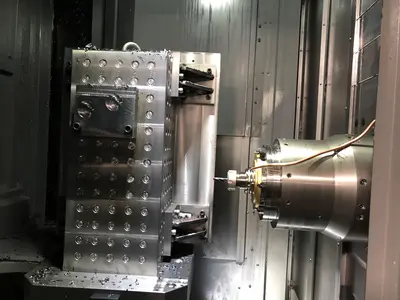

Pallet Width: 19.7"
Pallet Length: 19.7"
Pallet Capacity: 1,543 pounds
Pallet Indexing (B-Axis): 0.001°
X-Axis Travel: 29.9"
Y-Axis Travel: 29.9"
Z-Axis Travel: 31.5"
Rapid Traverse Rate (X/Y/Z): 2,480 ipm

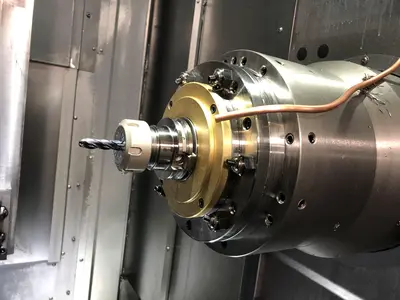

Spindle Taper: CAT 40
Spindle Speed: 15,000 rpm
Spindle Motor (HP): 50 horsepower

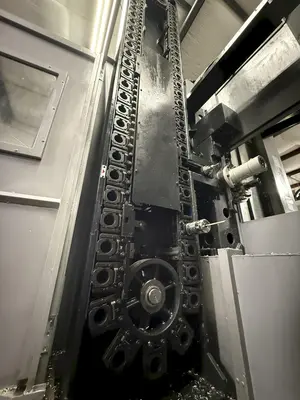

Tool Changer Capacity: 60
Coolant Through Spindle: yes
Dimensions: 191" x 108" x 142"
Weight: 23,200 pounds

- Fanuc 31i-MB CNC Control
- CAT 40 Big Plus
- Coolant Tank
- Chip Conveyor
- Custom Macro B
- 200 Tool Offset Pairs
- Coordinate System Rotation (G-command)
- T1-A Renishaw OMP60 Probe w/OTS Tool Setter
- Handheld Manual Pulse Generator (MPG)
- Tool Life Management (256 Sets)
- Work Coordinate System Additional 48 types
- Expanded Memory (1000 programs)

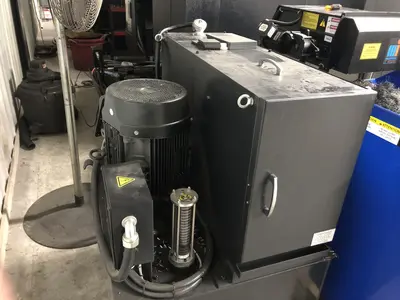

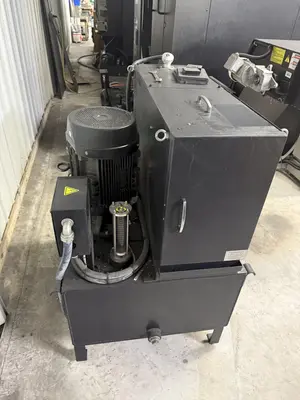

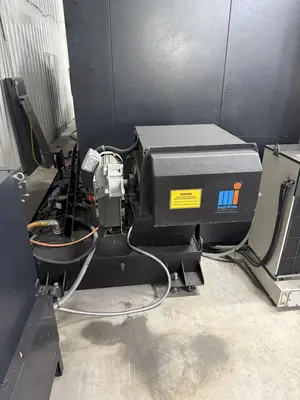

- High Pressure Coolant Thru Spindle (1000 psi)
- High Speed Machining
