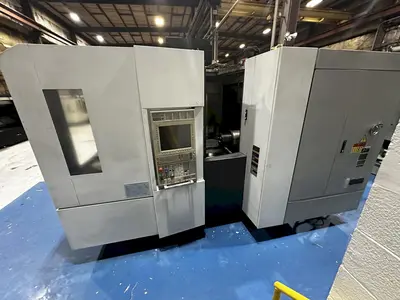

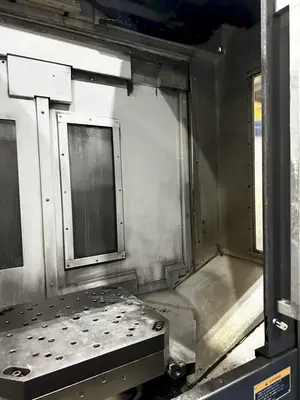

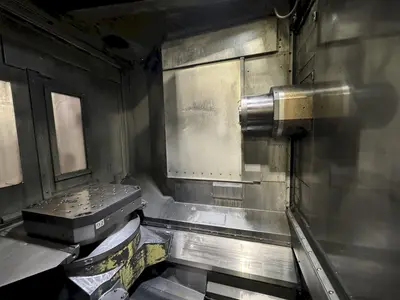

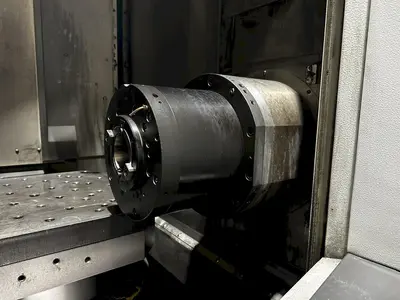

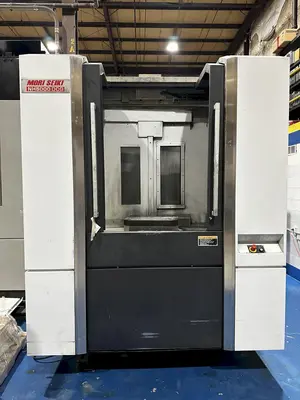

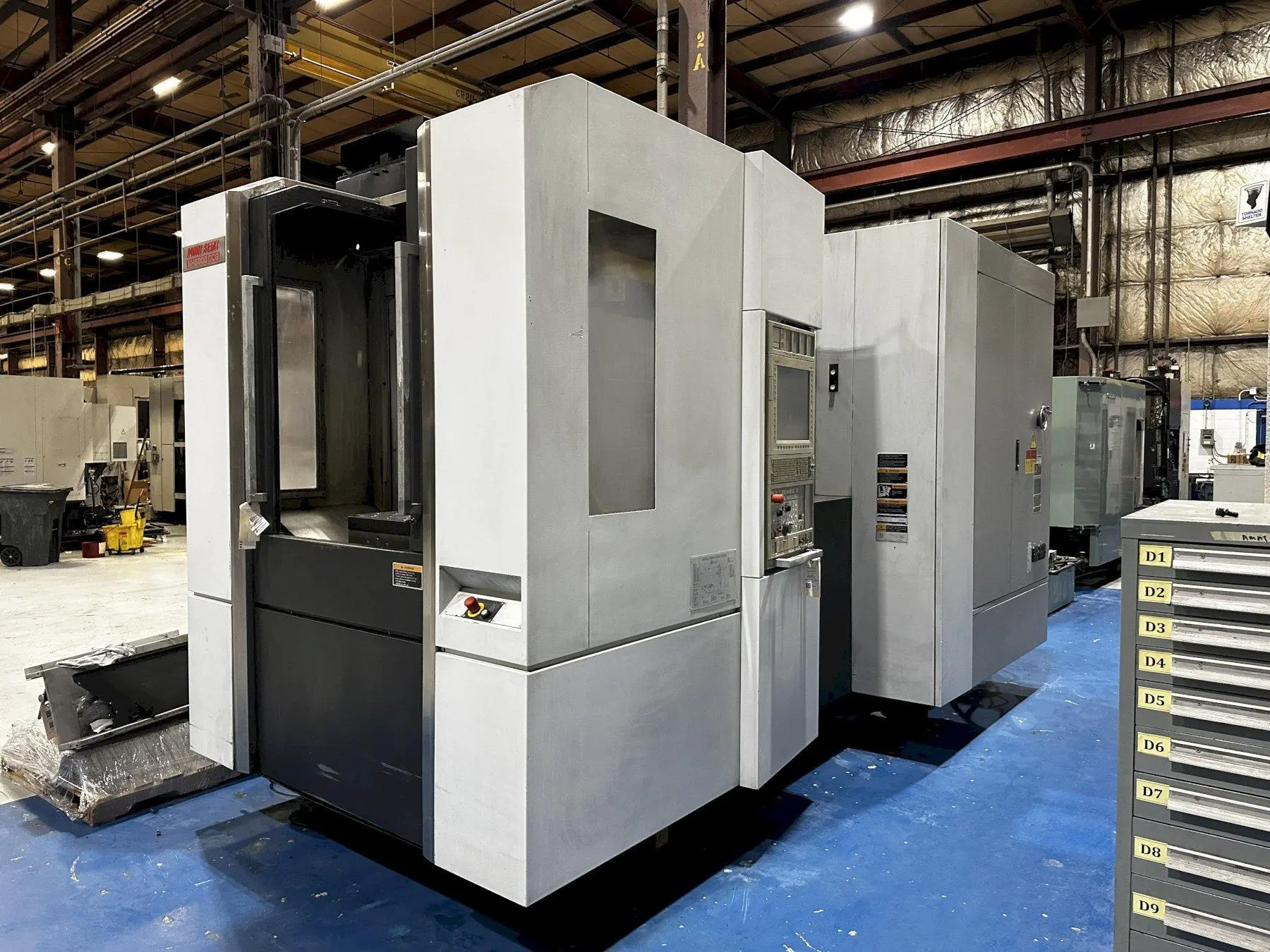

USED 2010 MORI SEIKI NH5000DCG/50
Overview
Description

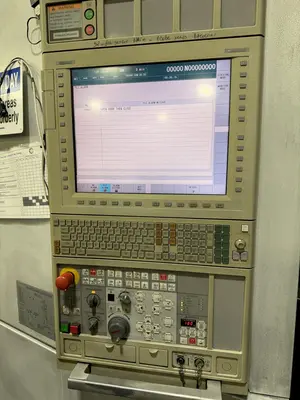

MSX-701IV CNC Control (Fanuc)
Low Pressure Coolant Thru Spindle
1° Degree B-axis Indexing

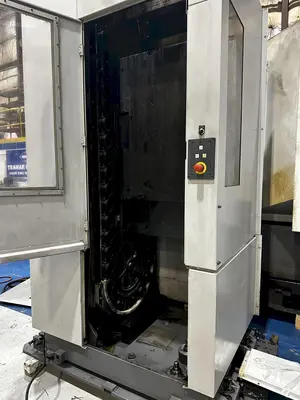

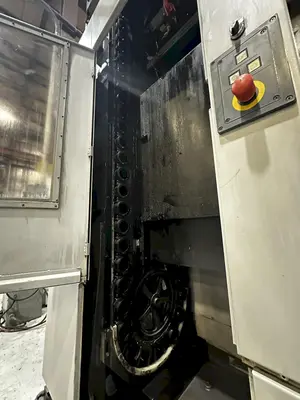

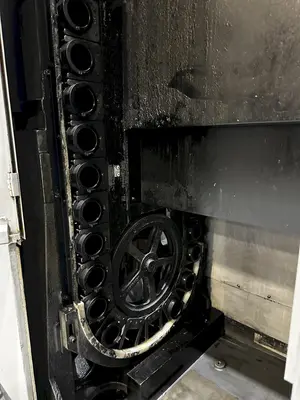

54 Station Tool Changer
8,000 rpm | 30hp | CAT 50
The Mori Seiki NH5000dcg/50 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specifications
CNC Control: yes
Control Type: MSX-701IV
# Axis: 4
Pallet Length: 19.7"
Pallet Width: 19.7"
Pallet Load Capacity: 1,540 pounds
Pallet Indexing (B-Axis): 1° Degree
X-Axis Travel: 28.7"
Y-Axis Travel: 28.7"
Z-Axis Travel: 33.5"
Rapid Traverse Rate (X/Y/Z): 1,968 ipm
Spindle Taper: CAT 50
Spindle Speed: 8,000 rpm
Spindle Motor (HP): 30 hp
Tool Changer Capacity: 54
Coolant Through Spindle: yes
Machine Weight: 27,000 pounds
Equipped With
- MSX-701IV CNC Control (Fanuc)

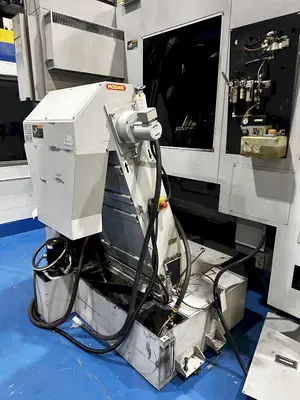

- Chip Conveyor
- Coolant Tank
- 1° Degree B-Axis
- Low Pressure Coolant Thru Spindle
