USED 2015 DOOSAN HP5100 II
Overview

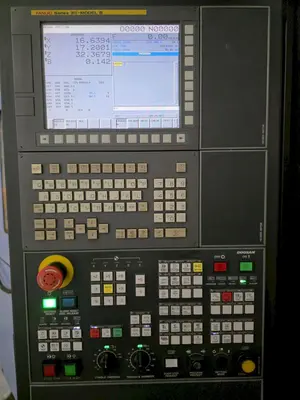

Fanuc 31i-MB CNC Control
Hydraulic Clamping
High Pressure Coolant Thru Spindle
HSK 63 | 14,000 rpm | 30 hp | 60 ATC
Pallet Size: 19.7" x 19.7"
Travels: 33.5" / 27.6"/ 29.5"
The Doosan HP5100 II is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specs
CNC Control: yes
Control Type: Fanuc 31i-MB
# Axis: 4
Pallet Length: 19.7"
Pallet Width: 19.7"
Pallet Capacity: 1,100 pounds
Pallet Indexing (B-Axis): 0.001°
X-Axis Travel: 33.5"
Y-Axis Travel: 27.6"
Z-Axis Travel: 29.5"
Rapid Traverse Rate (X/Y/Z): 2,362 ipm
Spindle Taper: HSK 63
Spindle Speed: 14,000 rpm
Spindle Motor (HP): 30 hp
Tool Changer Capacity: 60
Coolant Through Spindle: yes
Machine Dimensions: 212" x 110" x 119"
Machine Weight: 33,100 pounds
Equipped With
- Fanuc 31i-MB Control
- Hydraulic Clamping

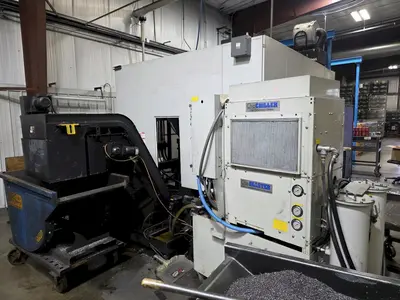

- Chip Blaster (model JV-40) Hi-Pressure CTS
- Chiller Unit
- Coolant Tank & Pumps
- Chip Conveyor
- Embedded Ethernet | RS232 Port | USB Port
- Tool Load Monitoring
- Manual Guide i (conversational programming)
- Handheld Remote Manual Pulse Generator (MPG)
- Custom Macro B
- Rigid Tapping
- Embedded Ethernet
- USB
- 200 Tool Offset Pairs
- Tool Life Management
- Tool Offset Memory C
- Graphic Function
- AI Contour Control II
- Machining Condition Selecting Function
