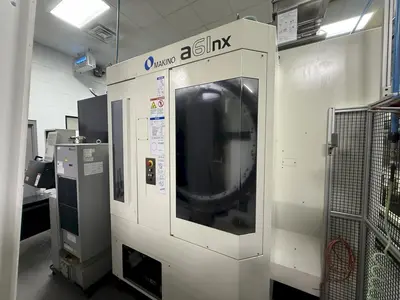

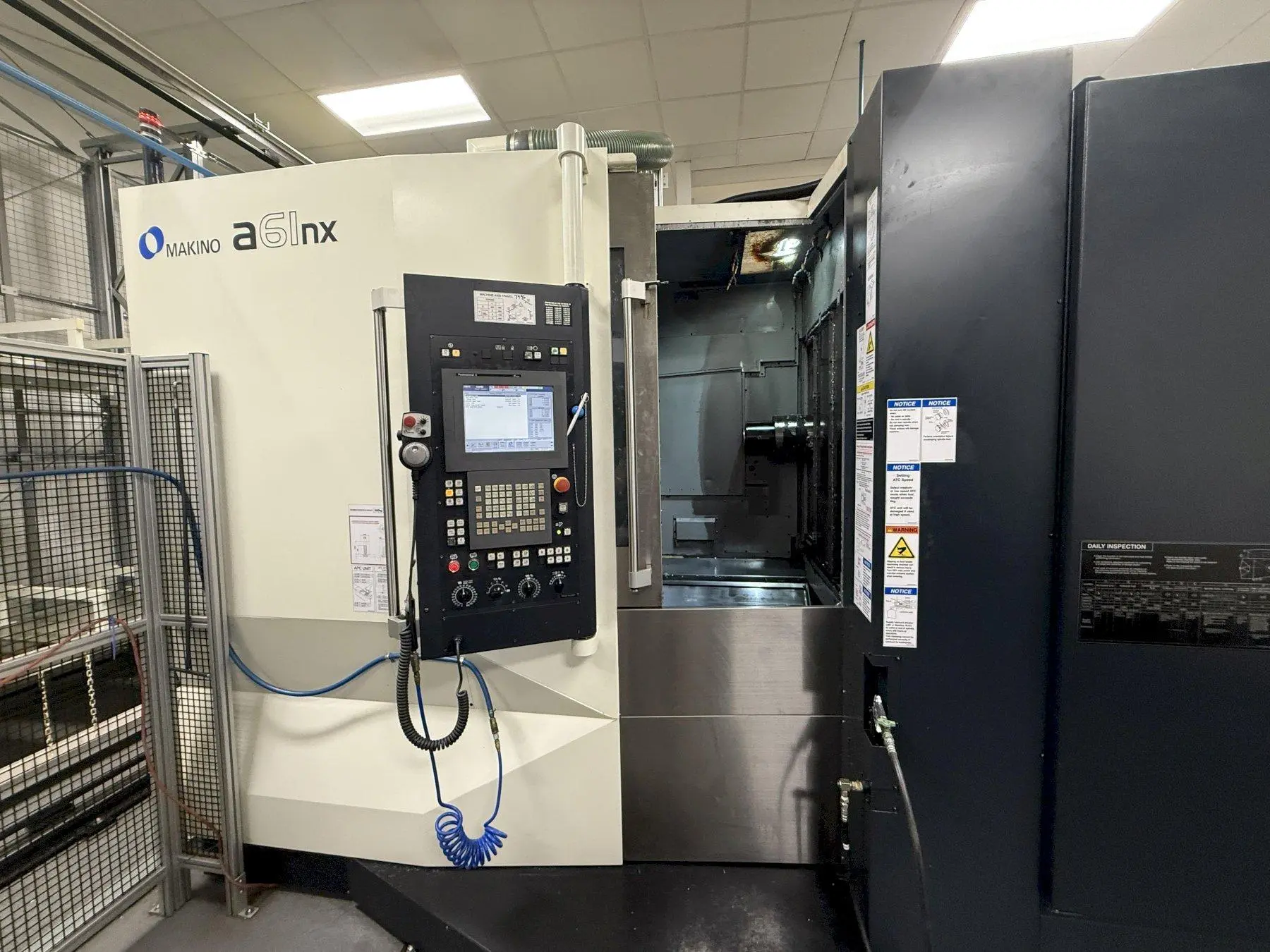

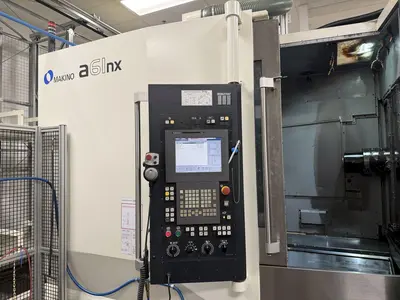

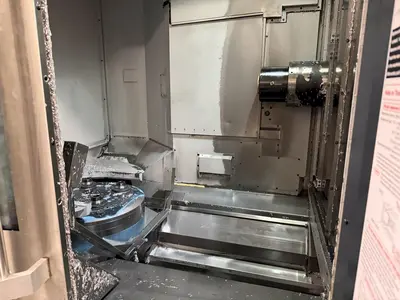

USED 2014 MAKINO A61NX
Overview

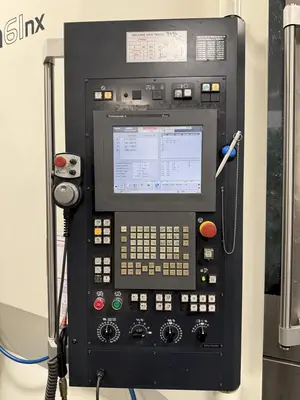

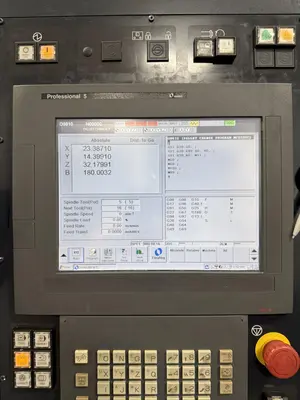

Professional 5 CNC Control (Fanuc)
Full 4th Axis Indexing 0.0001°
Y-axis Extended Stroke +3.1" (High Column 28.7")
Blum Micro Single NT ATLM (Option)
HSK-A63 Spindle (Option)
20,000 rpm High Speed, High Accuracy Spindle (Option)
Super GI .4 Control (Option)
The Makino A61NX is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specs
CNC Control: yes
Control Type: Professional 5
# Axis: 4
Pallet Length: 19.7"
Pallet Width: 19.7"
Pallet Load Capacity: 1,102 pounds
X-Axis Travel: 28.7"
Y-Axis Travel: 28.7"
Z-Axis Travel: 31.5"

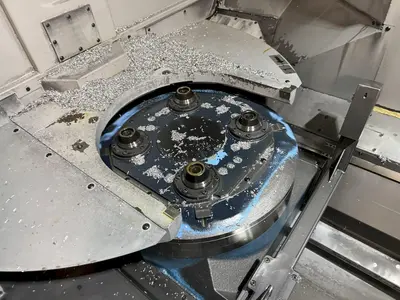

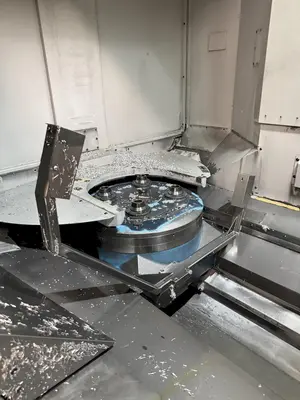

Pallet Indexing (B-Axis): 0.0001° Full 4th
Rapid Traverse Rate (X/Y/Z): 2,360 ipm
Spindle Taper: HSK-A63
Spindle Speed: 20,000 rpm
Spindle Motor (HP): 25 hp

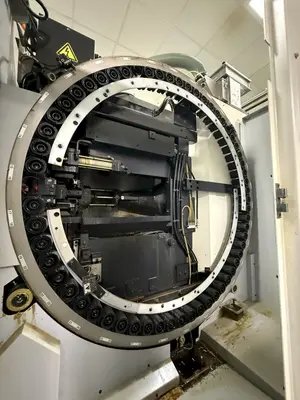

Tool Changer Capacity: 60
Coolant Through Spindle: yes
Machine Dimensions: 112" x 198" x 114"
Machine Weight: 26,900 pounds
Equipped With
- Professional 5 CNC Control (Fanuc)
- Full 4th B-Axis 0.0001° Indexing

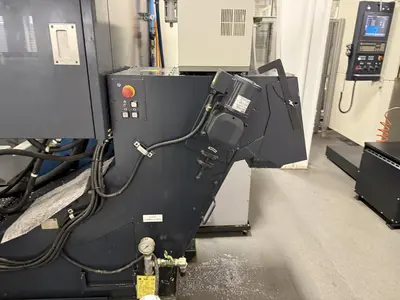

- Chip Covneyor

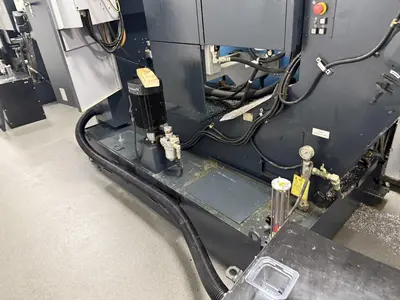

- Coolant Tank & Pump
- Y-axis Extended Stroke +3.1" (High Column - Option)
- Blum Micro Single NT ATLM (Option)
- Data Center 4MB
- HSK-A63 Spindle (Option)
- 20,000 rpm High Speed, High Accuracy Spindle (Option)
- Super GI .4 Control (Option)
- Enhanced Super GI.4 Capability
- 600 Macro Common Variables
- 250 Registered Work Programs
- 48 Additional Work Offsets
- High Speed Skip Function
- 300 psi Coolant Thru Spindle
- Through Spindle Air
- Overhead Shower Coolant System
- 8 Nozzle Coolant
- Portable Manual Pulse Generator
