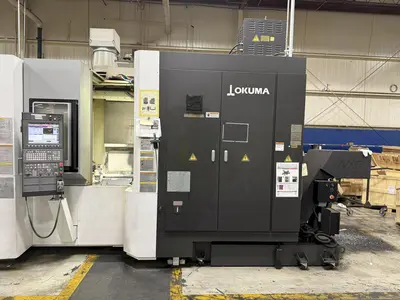

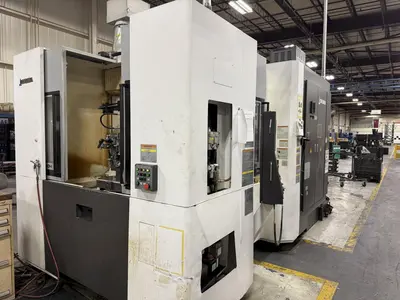

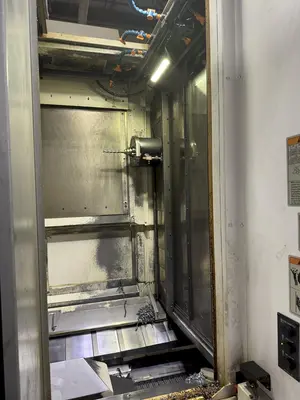

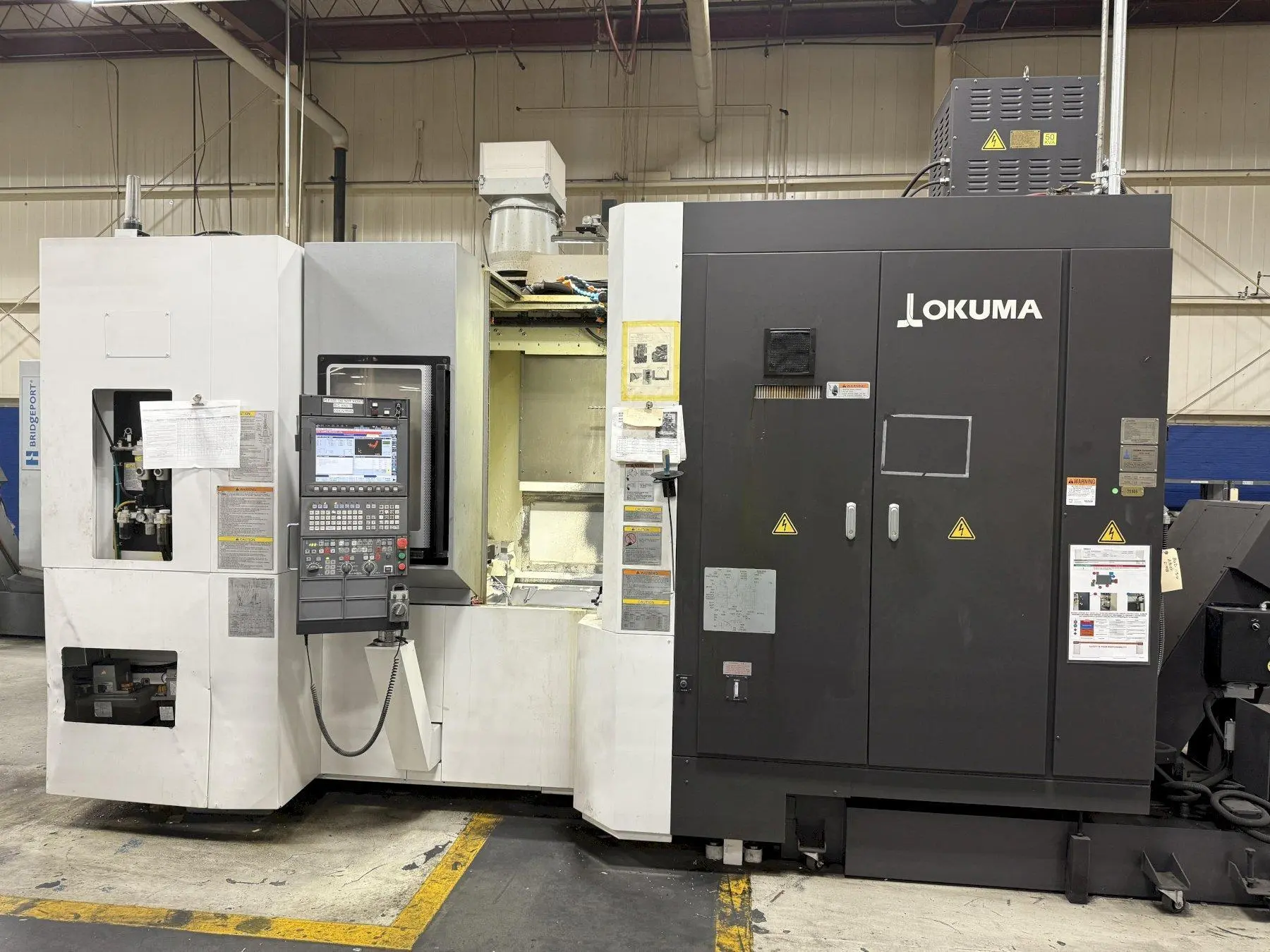

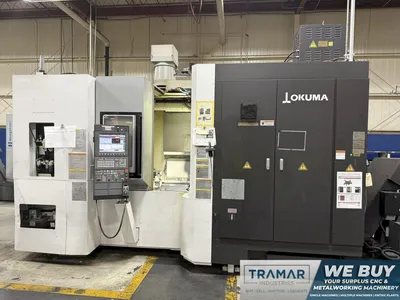

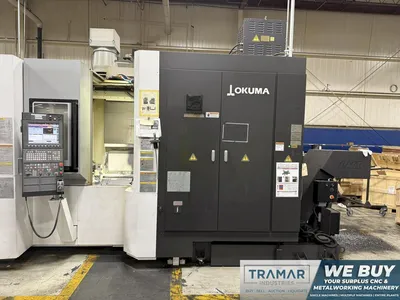

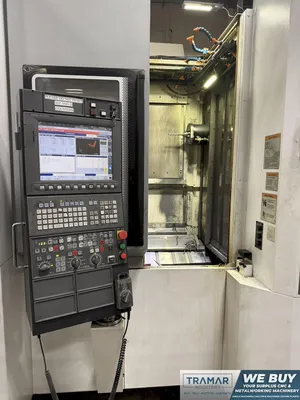

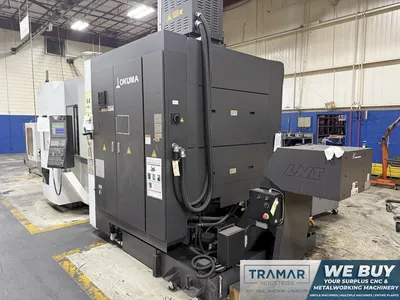

USED 2018 OKUMA MB-5000H

Okuma OSP-P300MA CNC Control

MP Systems Coolant Unit - Hi Pressure CTS

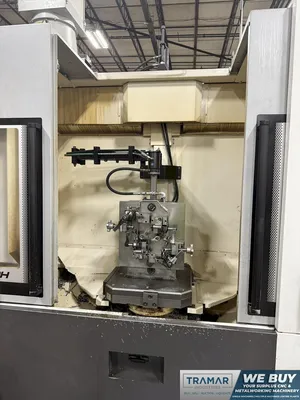

Full 4th Axis - 0.001°

CAT 40 | 15,000 rpm | 64 Station ATC

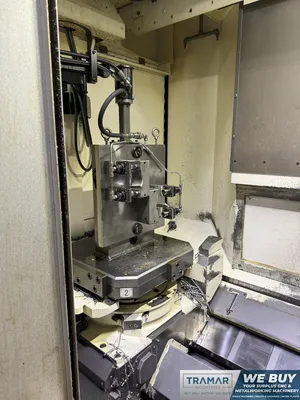

Hydraulic Clamping System
The Okuma MB-5000H is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: OSP-P300MA
# Axis: 4

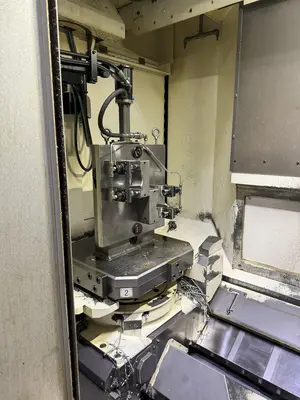

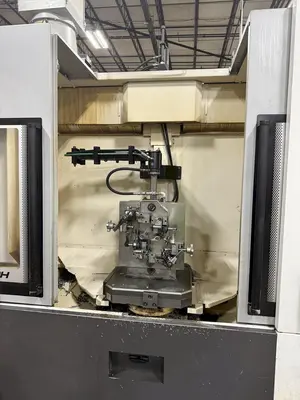

Pallet Length: 19.7"
Pallet Width: 19.7"
Pallet Load Capacity: 1,100 pounds
Pallet Indexing (B-Axis): 0.001°
X-Axis Travel: 29.9"
Y-Axis Travel: 29.9"
Z-Axis Travel: 29.9"
Rapid Traverse Rate (X/Y/Z): 2,362 ipm
Spindle Taper: CAT 40
Spindle Speed: 15,000 rpm
Spindle Motor (HP): 40 hp
Tool Changer Capacity: 64
Coolant Through Spindle: yes
Machine Dimensions: 182" x 103" x 114"
Machine Weight: 27,500 pounds

-

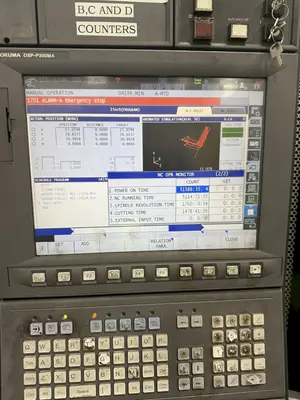

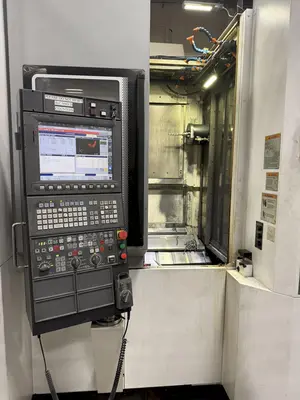

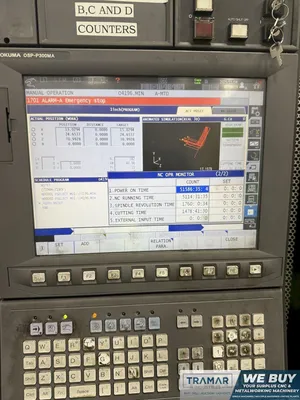

OSP-P300MA CNC Control

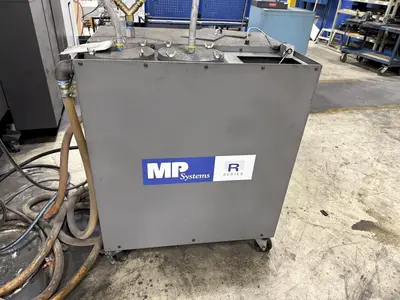

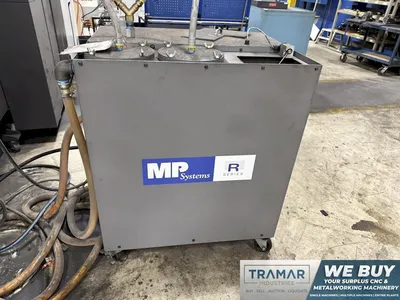

- MP Systems R-Series High Pressure Coolant Unit
- Hi Pressure Coolant Thru Spindle

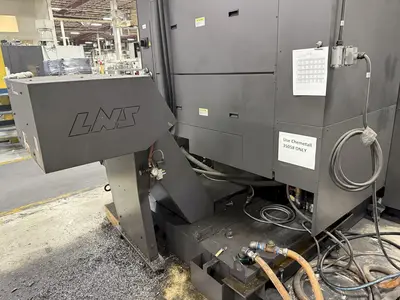

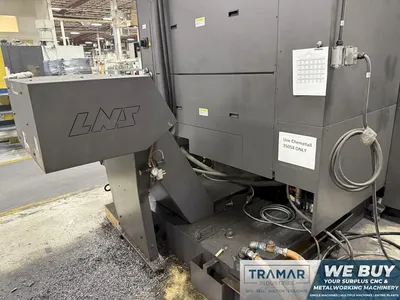

- Chip Conveyor
- Coolant Tank & Pumps
- Full B Axis Indexing - 0.001°
- Hydraulic Clamping System
