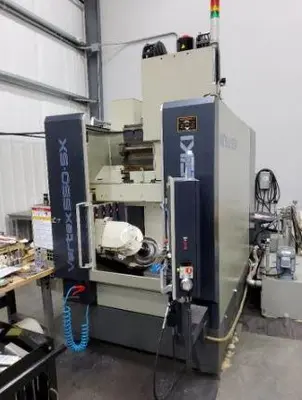

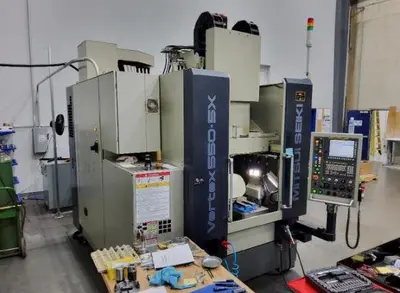

USED 2013 MITSUI SEIKI VERTEX 550-5X

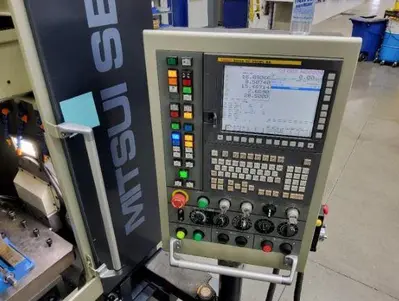

Fanuc 31i-B5 CNC Control

Tooling & Probe Available

5-Axis Machining

Low Hours - Approx. 4,000 hours
The Mitsui Seiki Vertex 550-5X is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Fanuc 31i-B5
# Axis: 5
Table Size: 15.75Ø
Max Table Load: 770 pounds
X-Axis Travel: 21.7"
Y-Axis Travel: 23.6"
Z-Axis Travel: 19.7"
B Axis Rotary: 0.001°
A Axis Rotation: +15° to -105°
Rapid Traverse Rate (X/Y/Z): 1,900 ipm
Spindle Taper: CAT 40
Spindle Speed: 15,000 rpm
ATC Capacity: 40
Coolant Thru Spindle: yes

- Fanuc 31i-B5 CNC Control
- Chip Conveyor
- 5-Axis Machining
- Approx. 4,000 Hours
