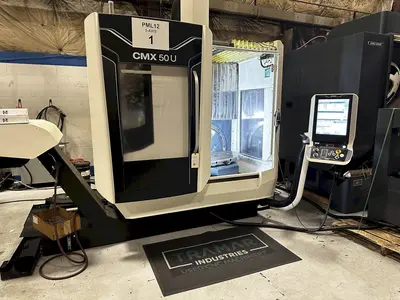

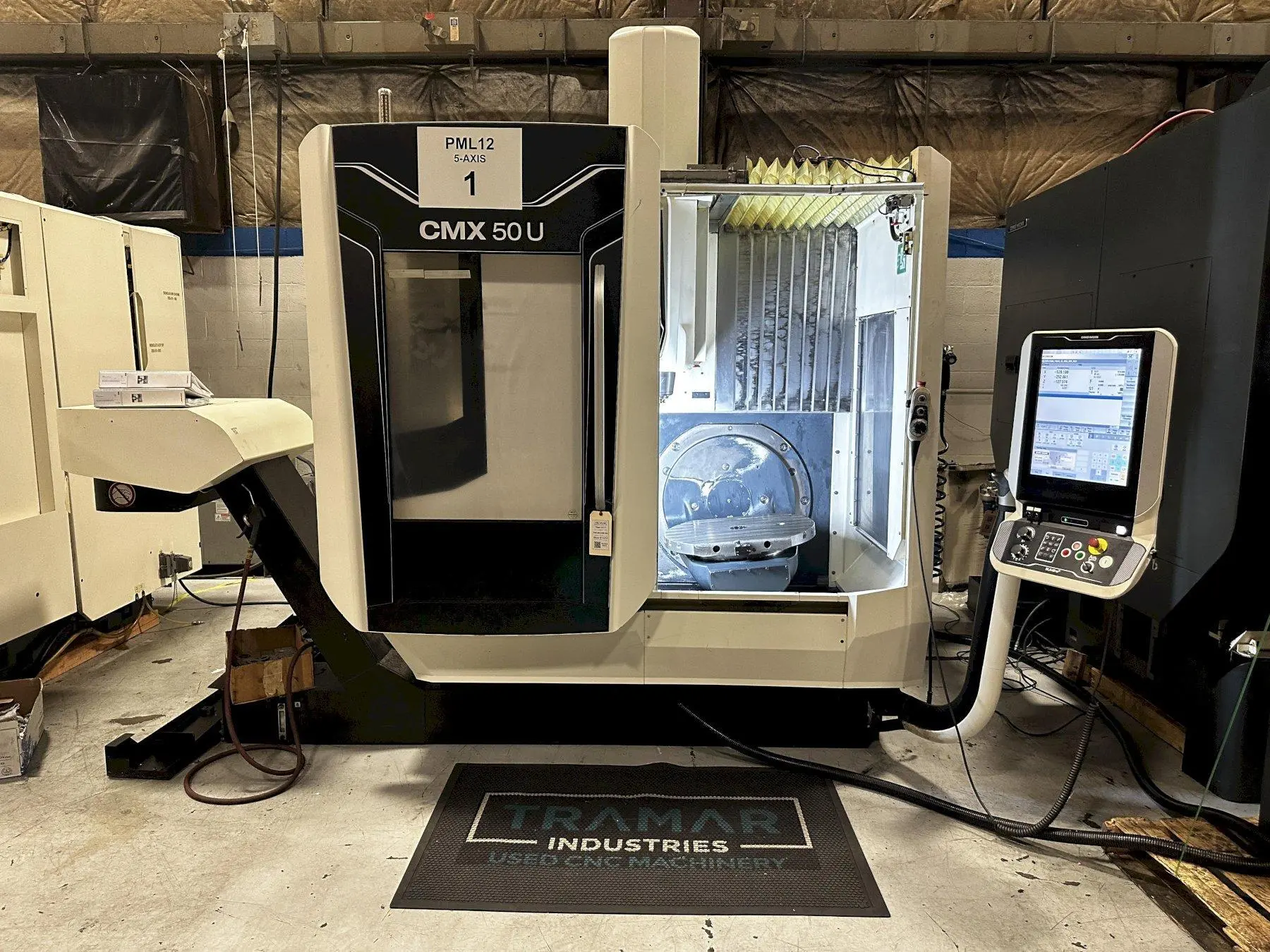

USED 2017 DMG MORI CMX 50U

(2) Machines Available

Siemens Touchscreen CNC Control

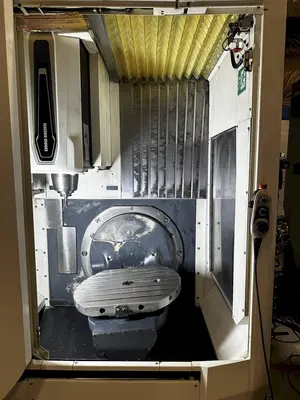

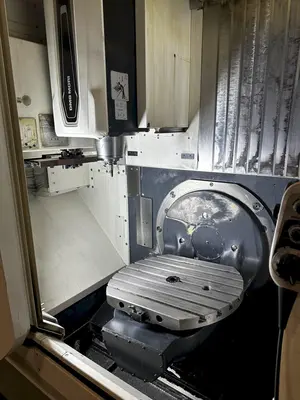

5-Axis Machining
The DMG Mori CMX 50U is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

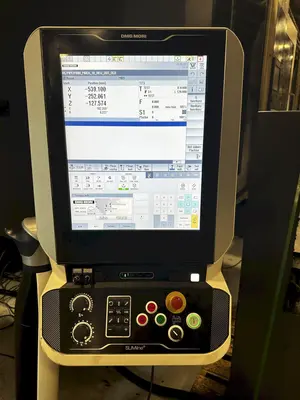

Control Type: Siemens SLIMline Multi-Touch
# Axis: 5
Table Size: 19.7" x 24.82"
Max Table Load: 441 pounds
X-Axis Travel: 19.68"
Y-Axis Travel: 17.71"
Z-Axis Travel: 15.74"

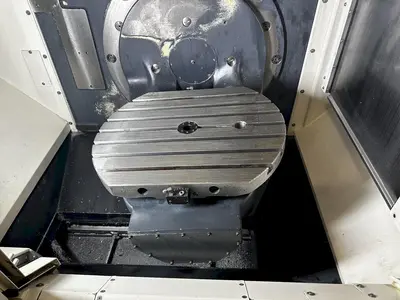

B Axis Rotary: -5° / +110°
A Axis Rotation: 0.001°
Rapid Traverse Rate (X/Y/Z): 1,181 ipm
Spindle Taper: CAT 40
Spindle Speed: 12,000 rpm
Main Motor: 20 hp
ATC Capacity: 30
Coolant Thru Spindle: yes
Machine Dimensions: 83" x 106" x 107"
Machine Weight: 10,500 pounds

- Siemens SLIMline CNC Control
- Chip Conveyor
- Coolant Tank
- 5-Sided Milling
- 4+1 Machining
