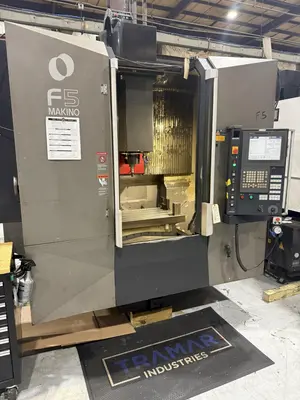

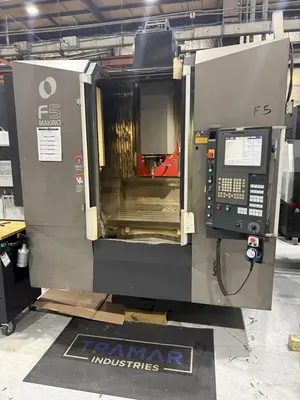

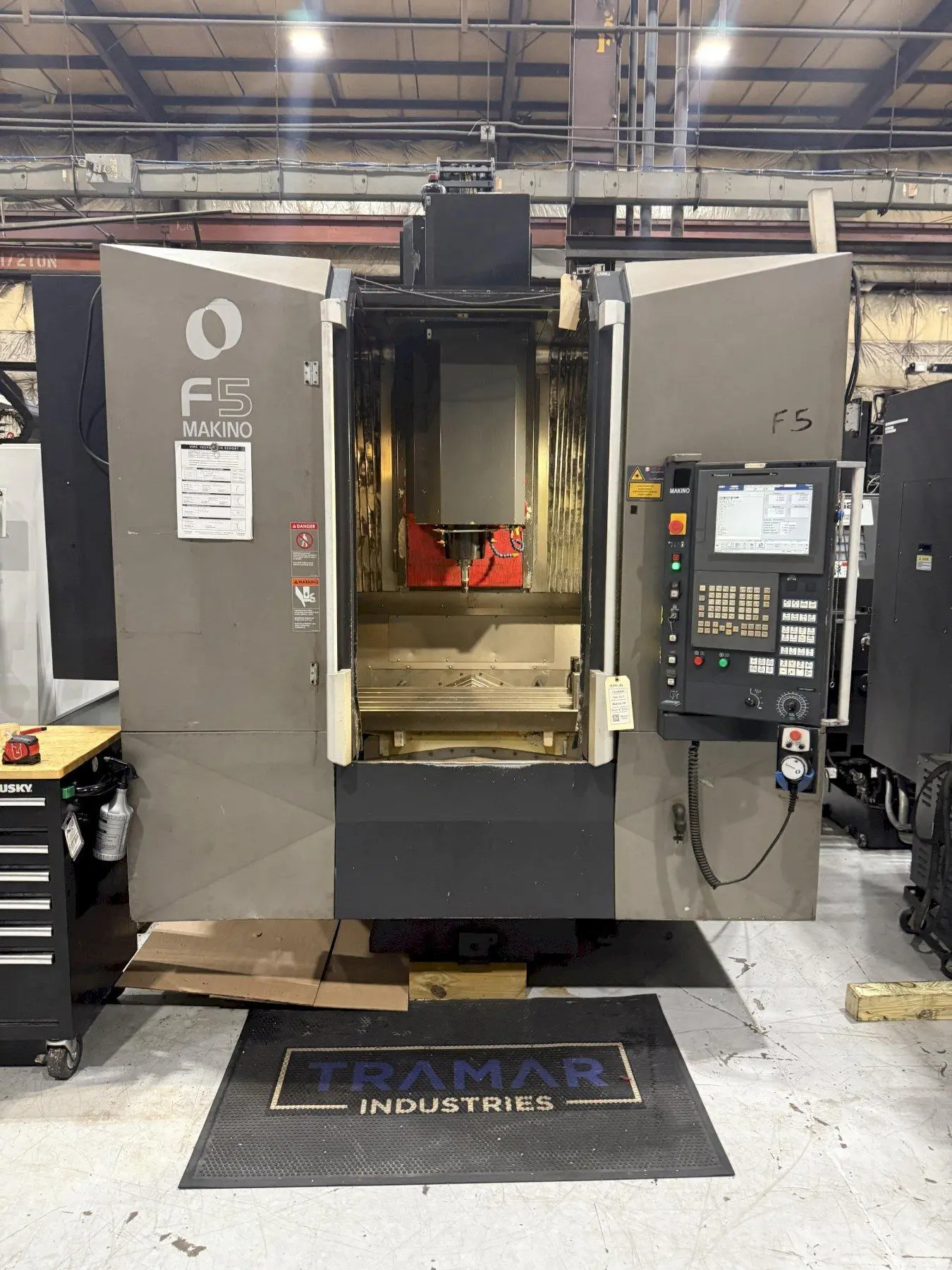

USED 2011 MAKINO F5

Professional 5 CNC Control

Table Size: 39.4" x 19.7" | Max Load: 2,204 lbs

Travels: X-39.4" | Y-19.7" | Z-17.7"

HSK 63 | 20,000 rpm | 30 Station ATC

Blum Laser Tool Touch Off
The Makino F5 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

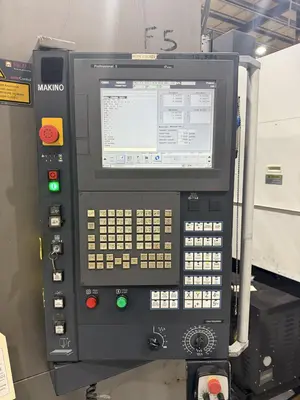

Control Type: Makino Professional 5
# Axis: 3

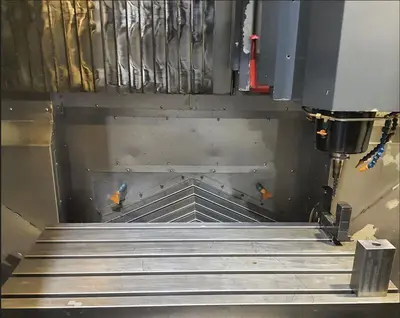

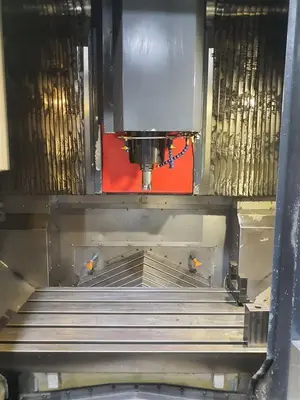

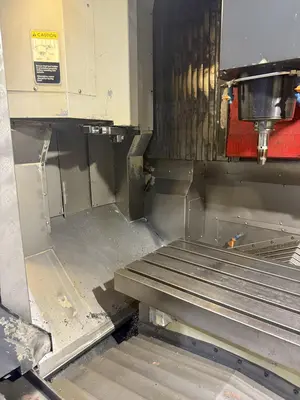

Table Size: 39.4" x 19.7"
Table Capacity: 2,204 pounds
X-Axis Travel: 39.4"
Y-Axis Travel: 19.7"
Z-Axis Travel: 17.7"
Rapid Traverse Rate (X/Y/Z): 787 ipm

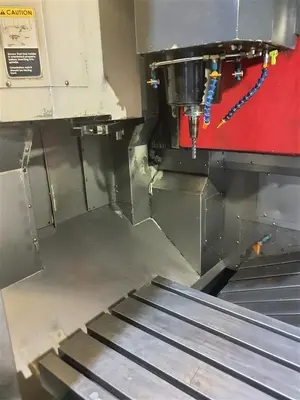

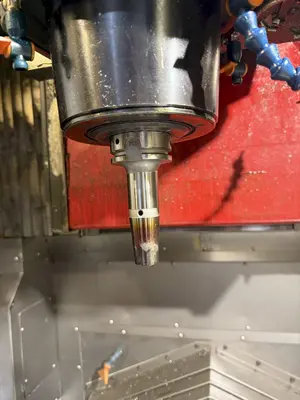

Spindle Taper: HSK-63
Spindle Speed: 20,000 rpm
Main Motor: 20 hp

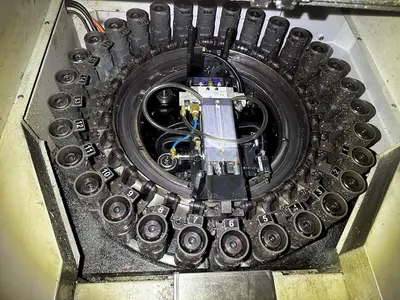

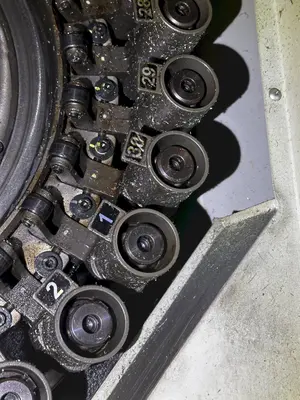

Tool Changer Capacity: 30
Machine Dimensions: 195"x 101"x 121" - Floor Space
Machine Weight: 16,600 pounds

- Professional 5 CNC Control (Fanuc)
- Coolant Tank & Pump
- Laser Tool Setter
