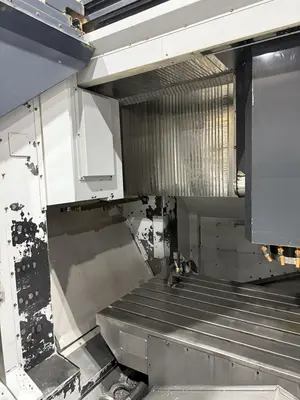

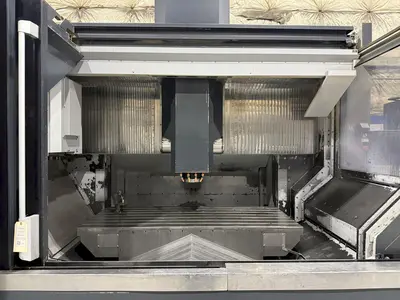

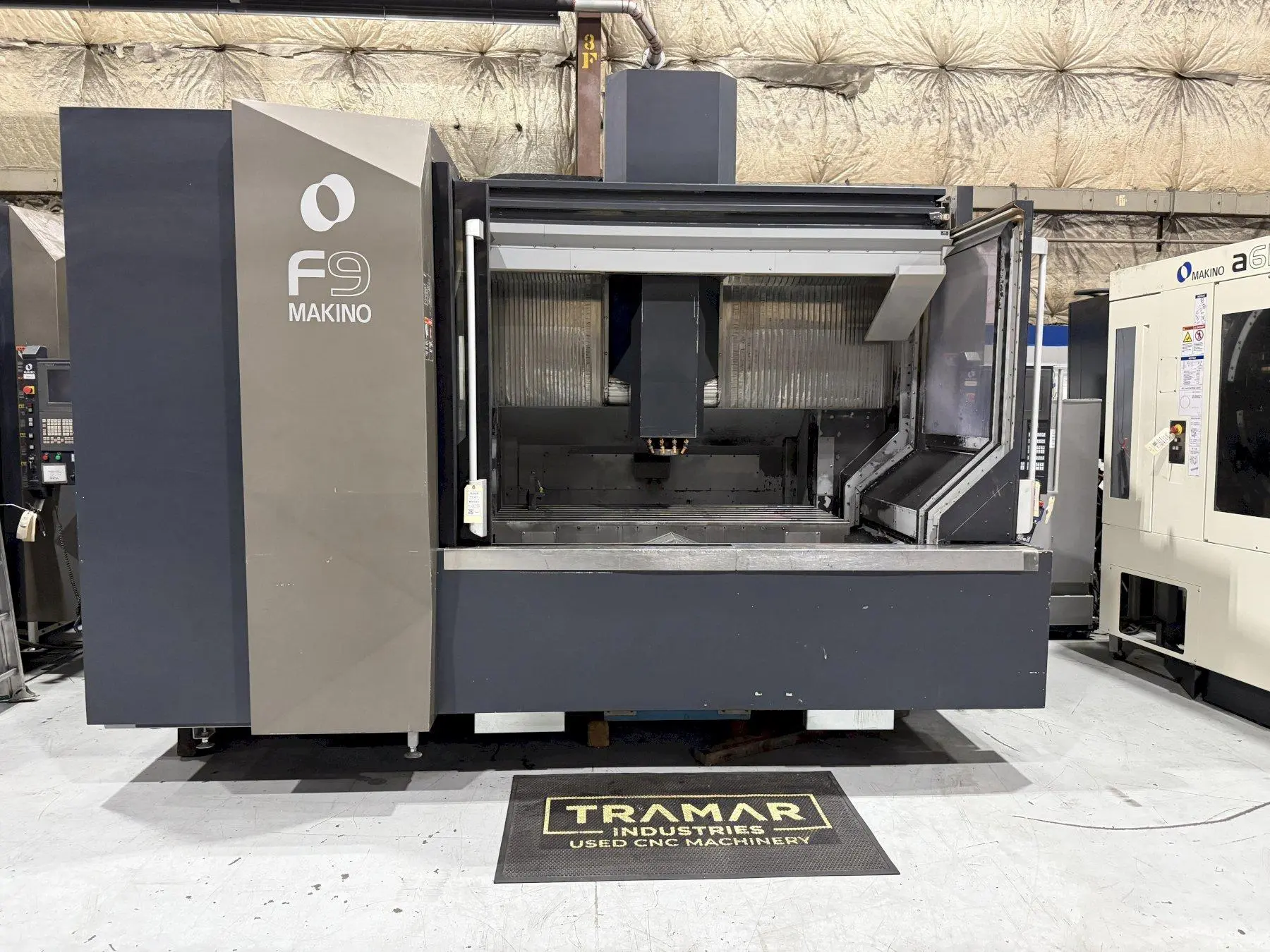

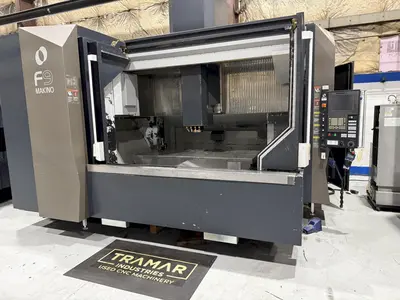

USED 2015 MAKINO F9

Pro 5 CNC Control

Table: 72.8" x 31.5" | 5511 lbs

Travels: X-63"/ Y-31.5"/ Z-25.6"

20,000 rpm, HSK-A63, 40 hp

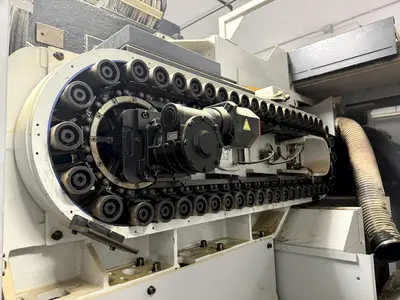

48 Station ATC
The Makino F9 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes
Control Type: Professional 5
# Axis: 3
Table Size: 72.8" x 31.5"
Table Capacity: 5,511 pounds
X-Axis Travel: 63"
Y-Axis Travel: 31.5"
Z-Axis Travel: 25.6"
Rapid Traverse Rate (X/Y/Z): 945 ipm
Spindle Taper: HSK-63
Spindle Speed: 20,000 rpm
Main Motor: 40 hp
Tool Changer Capacity: 48
Machine Dimensions: 170" x
Machine Weight: 37,500 pounds

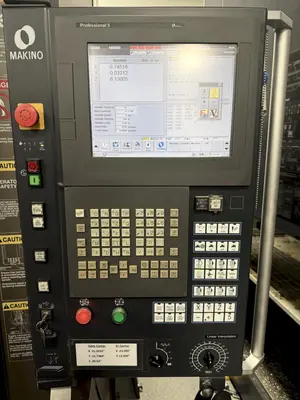

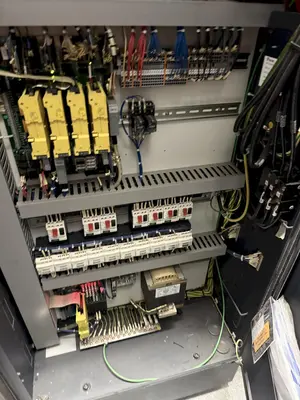

- Professional 5 CNC Control (Fanuc 31i)

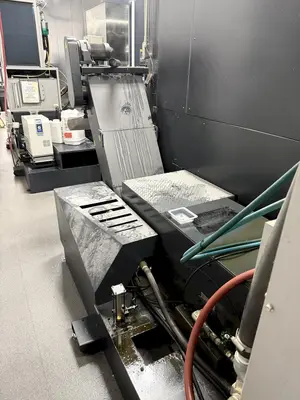

- Chip Conveyor
- Coolant Tank & Pump
- Blum ATLM Laser Type
- Super GI.4
- Spindle Chiller
- Air Dryer
- High Speed Skip
- Mist Collector
- Data Center B 400MB
- Heidenhain Scales X/Y/Z Axes
- Thru Spindle Air
- Nozzle Coolant
- Flush Coolant
- Mist Collector
- Jerk Control
- AI Contour Control II
- High Speed Processing
