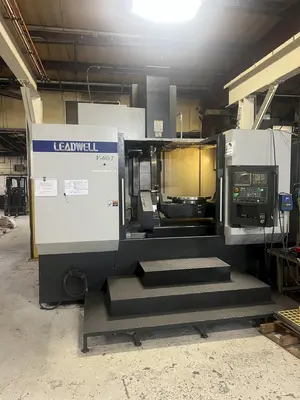

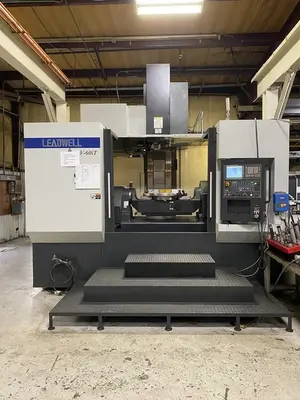

USED 2016 LEADWELL V-60IT
Overview

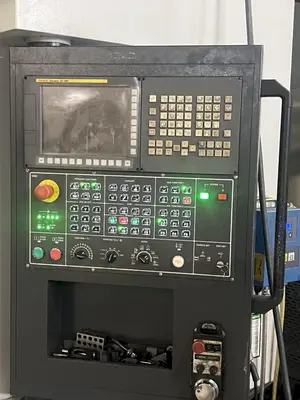

Fanuc 0iMF CNC Control
5-Axis Machining (4+1 Simultaneous)
Table Size: 24.8" Diameter
Max Table Load: 1102 lbs
Travels X-50" / Y-40" Z-30.8"
B Axis Rotary 360° A Axis +120° to -30°
CAT 40 | 15,000 rpm | 35 hp | 40 Station ATC
The Leadwell V-60iT is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specs
CNC Control: yes
Control Type: Fanuc 0iMF
# Axis: 5
Table Size: 24.8" Diameter
Max Table Load: 1,102 pounds
X-Axis Travel: 50"
Y-Axis Travel: 40"
Z-Axis Travel: 30.8"
B Axis Rotary: 360°
A Axis Rotation: +120° to -30° (150° Total)
Rapid Traverse Rate (X/Y/Z): (1181 ipm X & Y) (787 ipm Z) (16.7 rpm B) (8.3 rpm A)
Spindle Taper: CAT 40
Spindle Speed: 15,000 rpm
Main Motor: 35 hp
ATC Capacity: 40
Coolant Thru Spindle: yes
Machine Dimensions: 151" x 160" x 147"
Machine Weight: 33,100 pounds
Equipped With
- Fanuc 0iMF CNC Control
- 5 Axis Machining (4+1 Simultaneous)
- Chip Conveyor
- Coolant Tank & Pumps
- Coolant Thru Spindle 290 psi
- Spindle Chiller
- Fanuc Tilted Working Plane
- Tool Length Measurement
- Rigid Tapping
- Custom Macro B
- AIAPC 20 Block Look Ahead
- High Speed Skip
- Manual Guide i (Conversational Programming)
